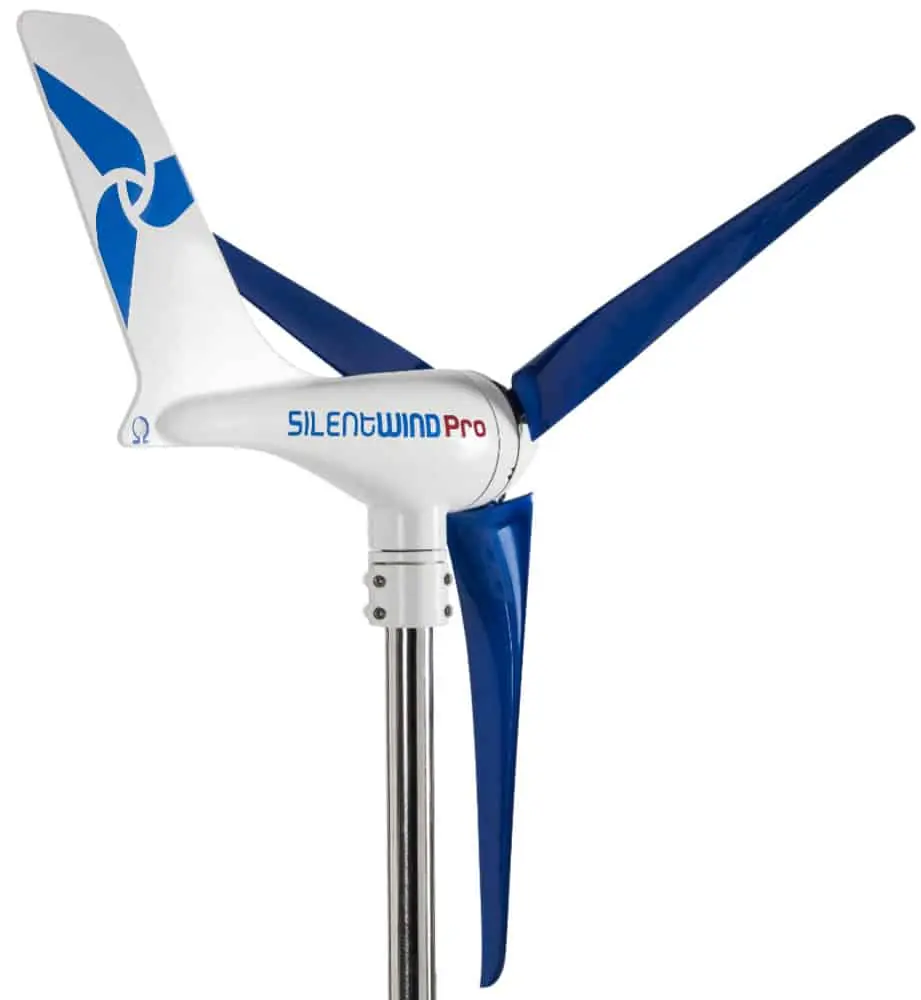

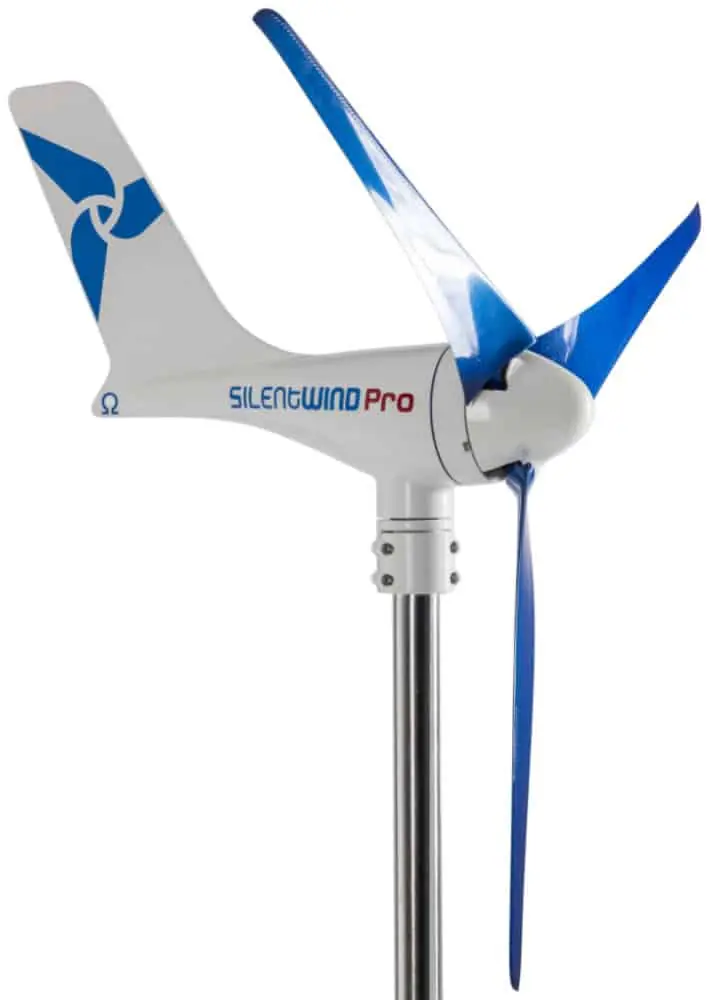

SilentWind Pro 420w Marine Wind Generator

External MPPT Hybrid Boost Controller
List price:1,720.00 ex. VAT Price:1,486.78 ex. VAT
Price: 1,799.00 (inc. VAT)
You save: €233.22 (14%)
Save 14%
SILENTWIND PRO 12V
9 in stock
7 days (approx.)
+
Shipping Costs:

Lightweight, efficient and very quiet 420w marine wind generator, with MPPT Hybrid Boost controller.

Building on the success of the extremely popular Silent Power Blades, the original Silentwind and the SilentWind 400+ the newly launched SilentWind PRO marine wind generator features a MPPT hybrid boost controller allowing even more efficiency and thanks to the hybrid design allows connection of up to 20 amps of solar power for an all in one solution.

Silentwind app for iOS and Android

New Free App for both IOS and Android

Setup, adjust your settings and monitor your wind generator output and performance. Easily connect your SilentWind PRO to your smartphone or tablet via Bluetooth to manage and monitor all settings. The new external antenna supplied with the regulator ensures good connectivity. The new stop feature allows you stop the wind generator directly from the app.

Download for Android  Download for iOS

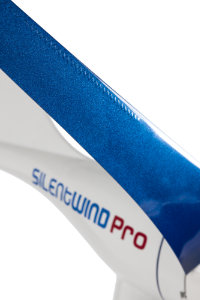

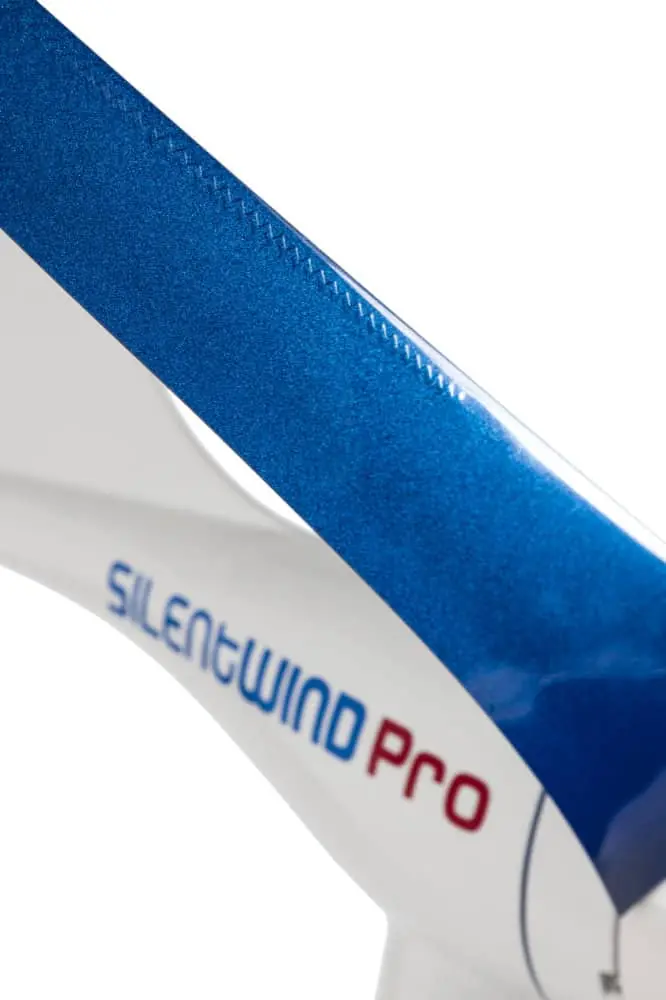

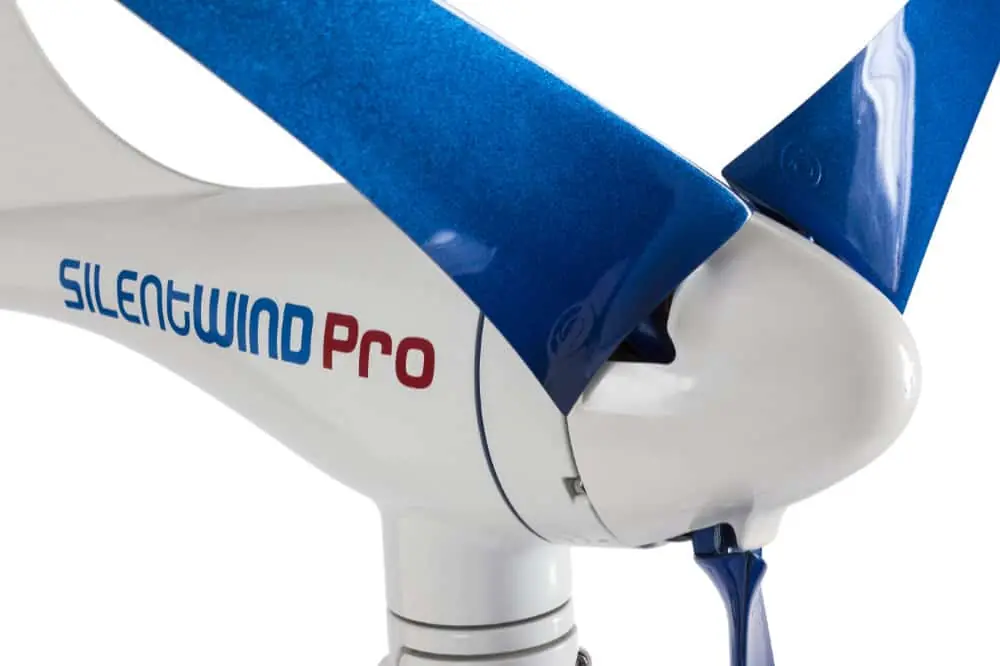

 Silent Power Blades



Aerodynamics from the aviation industry

By using wind tunnel testing and advanced aerodynamics combined with a three phase permanent magnet generator, with Neodymium-Iron–Boron-(NDFeB) magnets, the Silentwind PRO and Hybrid MPPT achieve an incredibly low start up speed of only 2.2m/s ( less than 4.3 knots) as well as a top output of 420w at only 1350 RPM, 30% less rotation speed than other 400w generators.

Silent Power Blades included as standard

Includes the incredibly quiet Silent Power Blades. Hand laminated, UV-resistant carbon blades, successfully tested according to DIN EN 61400-2 at hurricane speed 122 km/h (5480 rpm, with close to speed of sound at the blade tips). Almost silent with 70% less noise compared to other generators. This specially shows up in the frequency range between 1 and 12.5 kHz, that is most disturbing to human ears.  See Our Comparison video

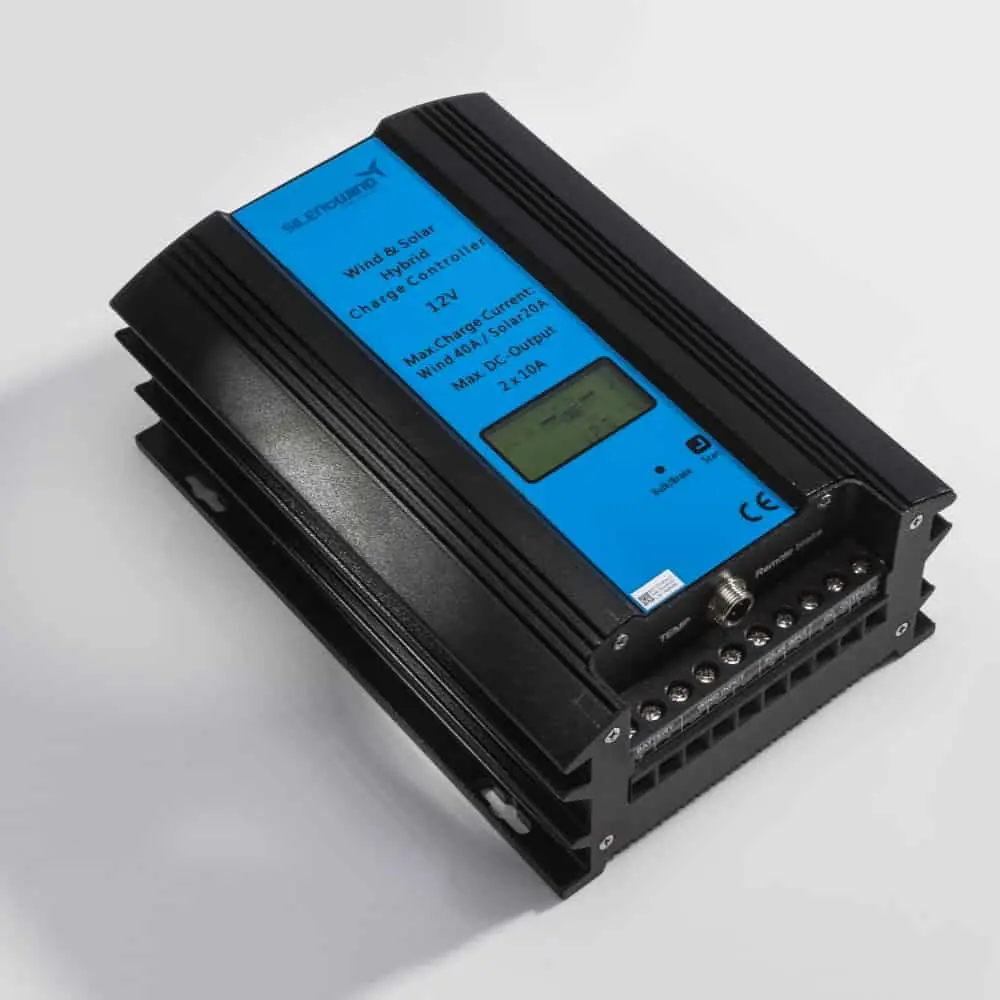

 External High Tech MPPT Hybrid Boost Charge Controller

Boost-Function: The adjustable boost function increases performance and optimizes the power yield, in light winds an earlier start of charging is guaranteed and an increase in performance is also possible in high wind regions.

Bluetooth-Function: The controller has a a built-in backlit LCD display showing all system parameters. This data can also be displayed on Android and IOS devices via a Bluetooth connection. Using this connection, system set-up and adjustments can also be done from a mobile device. The new external antenna increases range and improves connection.

Multi-stage charge process: After reaching the set charge voltage, the controller will switch to trickle charge mode, allowing a true 100% charge and avoiding battery discharge. Batteries are maintained in this full charge condition without the risk of gassing, an ideal solution for long battery life. The charge end voltage is adjustable for all battery types including Lithium.

Stop function: When the batteries are fully charged, the Silentwind PRO automatically stops or switches to trickle charge mode with a significant reduction in RPM. The Storm mode activates above a wind speed threshold to preventive damage and the new App features a stop function to remotely stop the wind generator directly from your mobile device..

Military grade components: By using certified military electronic components, the Boost Controller is insensitive to extreme temperatures, and remains stable even with electromagnetic interference.

Marine aluminium powder coated body

The compact aluminium body of the Silentwind is both lightweight and wind tunnel optimized for minimum noise. The elegant design will not look out of place even on the most stylish yachts.

Voted Best Choice by Skipper

Voted as the best choice for all wind conditions.

Real world testing in the Caribbean

http://www.info-center-online.com/boat/dt_windvereng.htm

Silentwind Boost Controller Power Curve

Compare these figures to other units:

Air-X Marine 400w

Air Breeze 200W



Silentwind PRO technical details:

  • Generator type: Permanent magnet generator, 3 phase, Neodymium-magnets
  • System voltage 12, 24 and 48 VDC models
  • Rated Power Output: 420 watts
  • Start up Wind Speed: 4.27 Knots (2.2 m/s)
  • Start up Charging: 4.9 Knots (2.5 m/s)
  • Charging Indicator: LED-blue, on the underside of generator body
  • High Wind Speed Test: 65 knots with no problems
  • Rotor Diameter: 1.15m
  • Weighs only 6.8 kg
  • Blade weight: 150g per blades (low centrifugal force)
  • Blade Material: Carbon Fibre CFK, Hand laminated
  • Rotation Speed: 480 - 1420 rpm
  • Color: White RAL 9010, powder coated
  • Warranty: 3 years
  • Packaging: 780mm x 400mm x 210mm 10 kg



External MPPT Hybrid Boost Controller technical details:

  • System voltage 12, 24 and 48 VDC models
  • Wind and Solar generation capacity: Wind (12v - max 40A) Solar (12v - max 20A)
  • Max Power input wind generator: 600W
  • Max Power input solar panel: 300W
  • Voltage adjustable for the battery types: Gel, AGM, Acid and Lithium
  • LCD-display of all relevant working data: W, A, V, Ah
  • Wind turbine MPPT point adjustable
  • Integrated electronic brake – charge limitation and storm brake
  • Eight models of load output optional
  • Cable connection – screw terminals
  • Connection – Bluetooth
  Product Code SilentWind Pro Availability Price
SilentWind Pro 420w Marine Wind Generator - bluemarinestore.com
SILENTWIND PRO 12V
SilentWind Pro - 12V
In stock
1,799.00 (inc. VAT)
1,486.78 (ex. VAT)
SilentWind Pro 420w Marine Wind Generator - bluemarinestore.com
SILENTWIND PRO 24V
SilentWind Pro - 24V
In stock
1,849.00 (inc. VAT)
1,528.10 (ex. VAT)
SilentWind Pro 420w Marine Wind Generator - bluemarinestore.com
SILENTWIND PRO 48V
SilentWind Pro - 48V
7 days
1,899.00 (inc. VAT)
1,569.42 (ex. VAT)
SILENTWIND SILENT POWER BLADES
263.64 ex. VAT   319.00
High-tech carbon fibre rotor blades for the Silentwind and Air Series* wind generators. Silent Power Blades ( SPB ) were designed by a German...
7 days
+

SILENTWIND NOSE CONE
19.79 ex. VAT   23.95
Replacement nose cone for the Silentwind marine wind generator. Also suitable as an upgrade for the Air-X wind generator (see note). Compatible with both...
7 days
+

SILENTWIND HUB
60.29 ex. VAT   72.95
Replacement blade hub for Silentwind marine generator. Also compatible with the Air-X Marine and Air-X land and suitable for installing Silent Power...
In stock
+

SILENTWIND MAST MOUNTING SYSTEM
288.43 ex. VAT   349.00
All the fittings required to install a mast mount onboard, except the poles and bolts! As stainless steel tubing is available worldwide at low cost...
7 days
+

BLUE SEA SYSTEMS 7108

High amperage thermal circuit breakers from Blue Sea Systems. Trip Free - designed to trip even if the reset lever is held in the on position. Self...
Discontinued Product


BLUE SEA SYSTEMS 7080
56.98 ex. VAT   68.95
Medium duty thermal circuit protection for 25 to 150 Amps. The 285-Series are a drop in replacement for the 185-series with the exact same dimensions for...
In stock


BLUE SEA SYSTEMS 1001
25.53 ex. VAT   30.89
Waterproof cable gland ideal for VHF, AIS, GPS Radar and other antennas. The Blue Sea Systems CableClam are manufactured from UV-Stabilized Thermoplastic...
In stock


BLUE SEA SYSTEMS 1001100
37.10 ex. VAT   44.89
Waterproof cable gland ideal for VHF, AIS, GPS Radar and other antennas. The Blue Sea Systems CableClam are manufactured from UV-Stabilized Thermoplastic...
In stock


VICTRON ENERGY SCA000100000
8.01 ex. VAT   9.69
High quailty single core tinned extension cable with MC4 (PV-ST01) quick connect plugs for solar panels. The cables have 1 x Male MC4 plug and 1 x...
In stock


SilentWind Pro User Manual English (2,482 Kb) - Download

MPPT Charge Controller User Manual English (1,609 Kb) - Download
