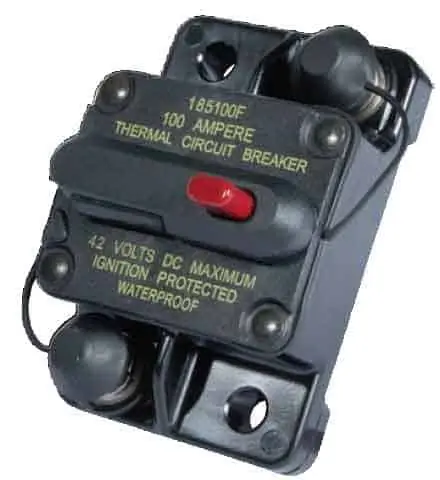

Blue Sea Systems 185-Series Surface Mount Circuit Breaker

Price:41.28 ex. VAT
Price: 49.95 (inc. VAT)
BLUE SEA SYSTEMS 7108
In stock
+
Shipping Location:

High amperage thermal circuit breakers from Blue Sea Systems. Trip Free - designed to trip even if the reset lever is held in the on position. Self trimming case with recessed holes for a simple and clean installation. Large clearance around the terminal studs for large gauge wire lugs.

  • Ignition protected -(meets SAE J1171 external ignition protection requirements) Safe for installation aboard gasoline powered boats
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit
  • "Trip Free" - cannot be held closed after trip

Specifications



Interrupting Capacity Iic

3000 Amps @ 42 volts DC

Maximum Operating Voltage Vmxo 42 Volts DC
Minimum Operating Temperature Tmno -25°C
Maximum Operating Temperature Tmxo +82°C
Type Thermally Responsive Bi-metal
Class Type III Switchable/Manual Reset - Trip Free
Terminal Stud 1/4" - 28
Terminal Stud Torque 50 in-lb
Mounting Hole 1/4" M6
Weight 0.30lb / 0.14kg

bluesea systems bussman 185 surface mount

  Product Code Model Availability Price
Blue Sea Systems 185-Series Surface Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7108
7108 - 25A
In stock
41.28 ex. VAT

49.95 (inc. VAT)

Blue Sea Systems 185-Series Surface Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7109
7109 - 30A
Discontinued Product

49.95 (inc. VAT)

Blue Sea Systems 185-Series Surface Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7105
7105 - 40A
In stock
41.28 ex. VAT

49.95 (inc. VAT)

Blue Sea Systems 185-Series Surface Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7100
7100 - 50A
Discontinued Product

49.95 (inc. VAT)

Blue Sea Systems 185-Series Surface Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7114
7114 - 80A
Discontinued Product

49.95 (inc. VAT)

Blue Sea Systems 185-Series Surface Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7102
7102 - 100A
Discontinued Product

49.95 (inc. VAT)

Blue Sea Systems 185-Series Surface Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7113
7113 - 120A
Discontinued Product

49.95 (inc. VAT)
