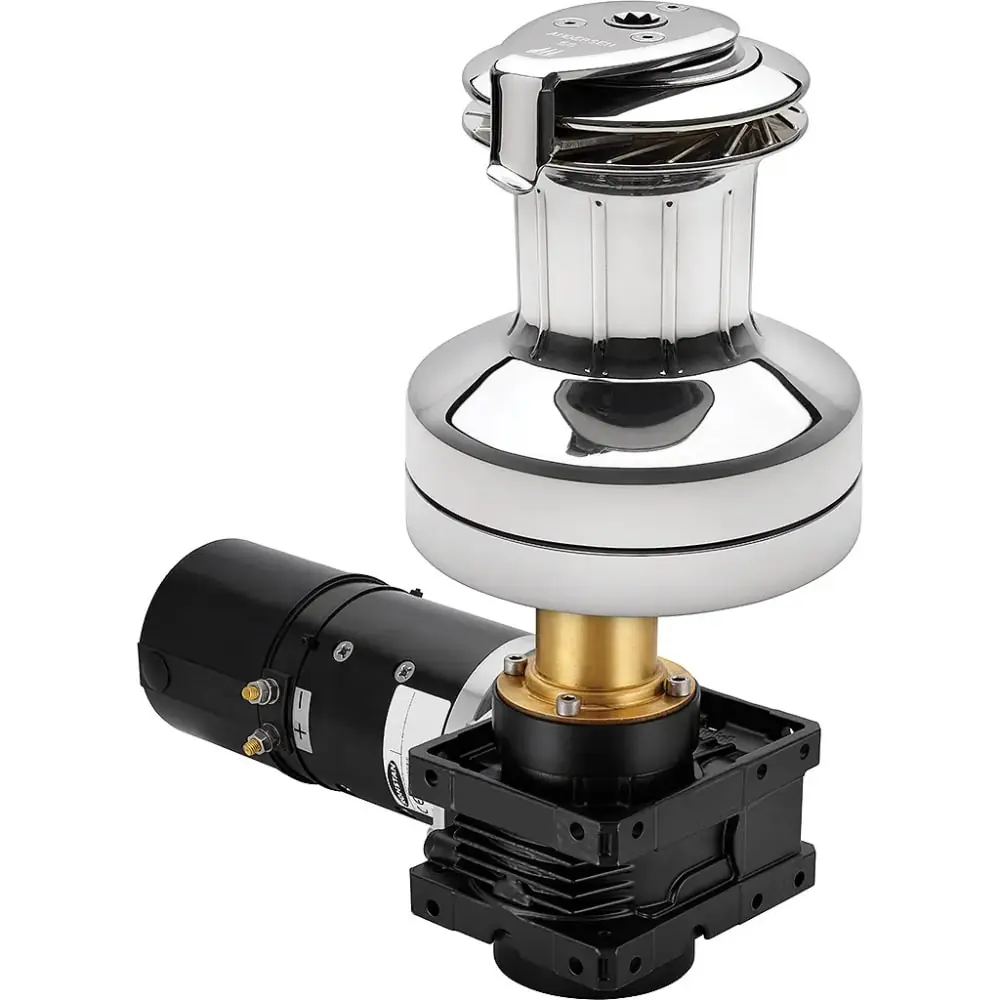

Andersen Full Stainless E1 Electric Winch

List price:5,458.59 ex. VAT Price:5,156.20 ex. VAT
Price: 6,239.00 (inc. VAT)
You save: €302.39 (6%)
Save 6%
ANDERSEN RA2058011400
Preorder
14 days (approx.)
+
Shipping Costs:

The new E1 Electric Self-tailing Winch from Andersen with “Intelligent” push button control.

Short handed sailing and sailing with younger or older crew members is no longer a problem as physical strength is not required, hoisting and trimming sails is done with the included interactive push button. All the features of the Andersen Full Stainless Self-Tailing Winch with 2 speed manual operation and safe single speed electric operation when required.

Andersen E1 Electric Winch

Redesigned for Ease of Installation

The E1 electric winch has an integrated motor / control box simplifying the installation and making it neater, lighter and more reliable. The electrical motor is simply connected to the positive and negative power cables (circuit breaker recommended) and to the control button. The control button and button connection cable are both included.

Efficient, High Quality Motor and Gearbox

At the heart of the E1 winch is a high quality European engineered and manufactured series wound motor and carefully matched gearbox. Together they deliver high speed at low load for fast sheeting in, and low speed at high load for safe, fine tuning when trimming, providing smooth and quiet operation across a wide working load range.

Illuminated “intelligent” Push Button

E1 winches are supplied with a push button, water resistant rated to IP67,  with hinged safety cover and integrated multifunction LED light. The LED light illuminates when power to the winch system is on. It also acts with the integrated controller as a winch status indicator. The LED flashes a specific code when the system protection intervention is activated such as winch overload or low battery voltage.

Unrivalled Monitoring and Protection for the winch, yacht & crew

Andersen E1 Included Intelligent Switch

  • Integrated Overload Protection - The controller is pre set to stop the winch if the Maximum Pull Load is exceeded. Operation can resume within a few seconds when the load returns below the limit
  • Thermal Overload Protection - The motor is fitted with a thermal cutout that disables the motor in case of overheating; it automatically resets after the temperature returns to normal
  • Reverse Polarity Protection – An integrated 5 Amp fuse protects the motor against incorrect cable connection
  • Accidental Start Protection – Winch operation is disabled if the push button is already inadvertently pressed when the power supply is turned on at the circuit breaker or battery
  • Low Voltage Detection - Operation is disabled if the battery charge level is low, which prevents further drain on batteries and avoids triggering low-voltage reset of navigation instruments and other electronic devices
  • Continuous Run Time Limit– Operation is disabled if continuous run time exceeds 10 minutes


Manual Operation Always Available - The E1 electric winch can always be operated as a 2 speed manual winch whenever required

See the Andersen Winch Selection Guide for more information.

Model
Drum
D mm

Base
B mm

Height
H mm

Entry
L mm

Line
Size mm

Weight kg
Gear
Ratio
Speed 1
Gear
Ratio
Speed 2
Power
Ratio
Speed 1
Power
Ratio
Speed 2
28 ST FS E1 70 125 151 65 8-14 18 1.3:1 3.7:1 9.5:1 26.5:1
34 ST FS E1 70 125 151 65 8-14 18 1.3:1 4.7:1 9.5:1 33.8:1
40 ST FS E1 75 152 174 71 8-14 19 1.3:1 6.0:1 8.5:1 39.5:1
46 ST FS E1 89 180 209 90 8-14 19 2.8:1 8.4:1 15.5:1 46.6:1
50 ST FS E1 89 180 209 90 8-14 21 2.8:1 8.8:1 15.5:1 49.3:1
52 ST FS E1 100 200 228 106 8-16 28 3.2:1 10.5:1 16.2:1 52.0:1
58 ST FS E1 115 230 257 111 8-18 35 3.7:1 14.4:1 16.1:1 57.7:1


Andersen E1 Electric Winch

Model Max
Deck

K mm
Motor
Depth

J mm
Gear
Length

S mm
Motor
Length

N mm

Power

Watts
Fuse
Amps

12V/24V
Offset

Oy mm
Offset

Ox mm
28 ST FS E1 49 180 64 304 1000 150/70 298 149
34 ST FS E1 49 180 64 304 1000 150/70 298 149
40 ST FS E1 49 180 64 304 1000 150/70 292 132
46 ST FS E1 57 188 64 304 1000 150/70 303 144
50 ST FS E1 57 188 64 304 1000 150/70 303 144
52 ST FS E1 57 180 64 350 1500 200/100 337 155
58 ST FS E1 43 201 81 374 1500 200/100 370 180
  Product Code Andersen E1 - Model Andersen E1 - Voltage Availability Price
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2028011300
28 ST E1 12V
14 days
3,518.99 (inc. VAT)
2,908.26 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2052011300
52 ST E1 12V
14 days
5,099.00 (inc. VAT)
4,214.05 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2052011400
52 ST E1 24V
14 days
5,099.00 (inc. VAT)
4,214.05 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2058011300
58 ST E1 12V
14 days
6,239.00 (inc. VAT)
5,156.20 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2058011400
58 ST E1 24V
14 days
6,239.00 (inc. VAT)
5,156.20 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2028011400
28 ST E1 24V
14 days
3,229.01 (inc. VAT)
2,668.60 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2034011300
34 ST E1 12V
14 days
3,579.00 (inc. VAT)
2,957.85 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2034011400
34 ST E1 24V
14 days
3,409.01 (inc. VAT)
2,817.36 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2040011300
40 ST E1 12V
14 days
3,549.00 (inc. VAT)
2,933.06 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2040011400
40 ST E1 24V
14 days
3,689.00 (inc. VAT)
3,048.76 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2046011300
46 ST E1 12V
14 days
4,019.00 (inc. VAT)
3,321.49 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2046011400
46 ST E1 24V
14 days
4,019.00 (inc. VAT)
3,321.49 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2050011300
50 ST E1 12V
14 days
3,929.00 (inc. VAT)
3,247.11 (ex. VAT)
Andersen Full Stainless E1 Electric Winch - bluemarinestore.com
ANDERSEN RA2050011400
50 ST E1 24V
14 days
4,289.00 (inc. VAT)
3,544.63 (ex. VAT)
BLUE SEA SYSTEMS 7108

High amperage thermal circuit breakers from Blue Sea Systems. Trip Free - designed to trip even if the reset lever is held in the on position. Self...
Discontinued Product


BLUE SEA SYSTEMS 7008

High amperage thermal circuit breakers from Blue Sea Systems. Trip Free - designed to trip even if the reset lever is held in the on position. Self...
Discontinued Product


Andersen Winch Data Sheet - 28ST E1 12V (324 Kb) - Download

Andersen Winch Data Sheet - 28ST E1 24V (326 Kb) - Download

Andersen Winch Data Sheet - 34ST E1 12V (325 Kb) - Download

Andersen Winch Data Sheet - 34ST E1 24V (325 Kb) - Download

Andersen Winch Data Sheet - 40ST E1 12V (327 Kb) - Download

Andersen Winch Data Sheet - 40ST E1 24V (325 Kb) - Download

Andersen Winch Data Sheet - 46ST E1 12V (329 Kb) - Download

Andersen Winch Data Sheet - 46ST E1 24V (329 Kb) - Download

Andersen Winch Data Sheet - 50ST E1 12V (331 Kb) - Download

Andersen Winch Data Sheet - 50ST E1 12V (330 Kb) - Download

Andersen Winch Data Sheet - 52ST E1 12V (331 Kb) - Download

Andersen Winch Data Sheet - 52ST E1 24V (332 Kb) - Download

Andersen Winch Data Sheet - 58ST E1 12V (334 Kb) - Download

Andersen Winch Data Sheet - 58ST E1 24V (336 Kb) - Download
