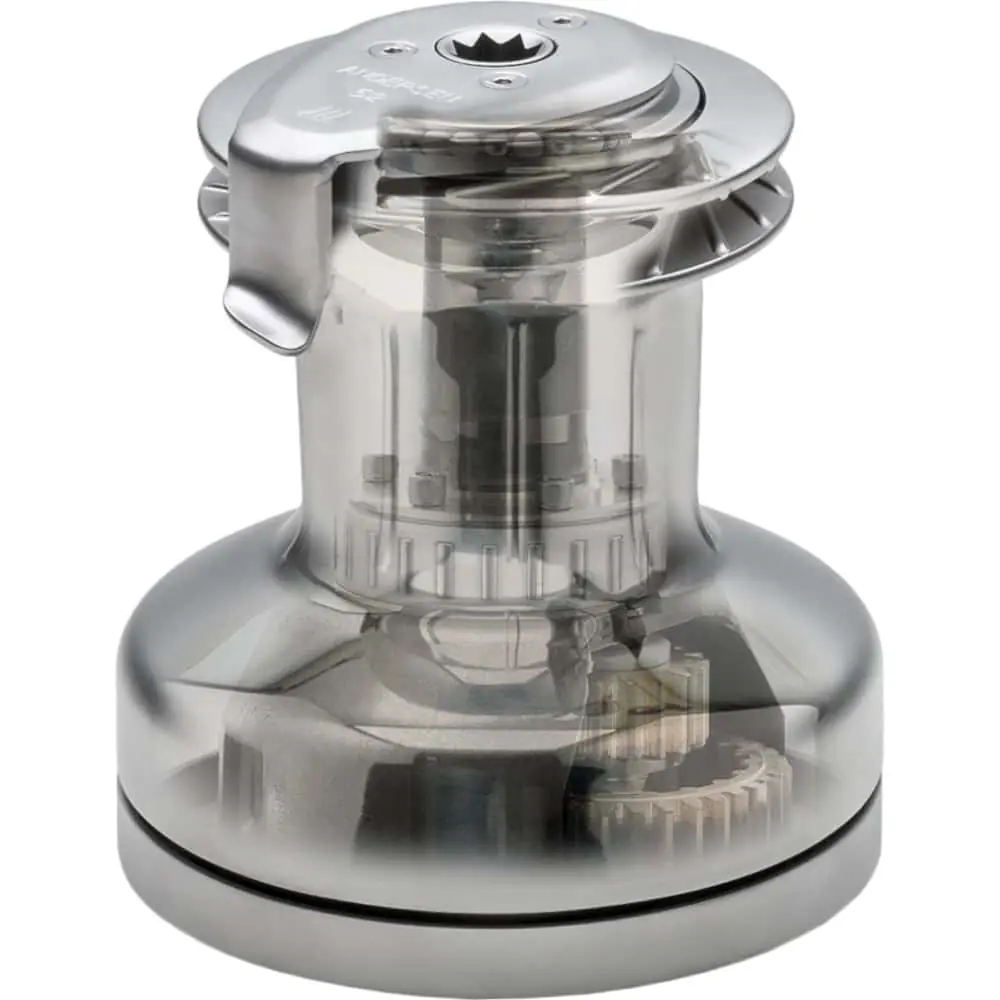

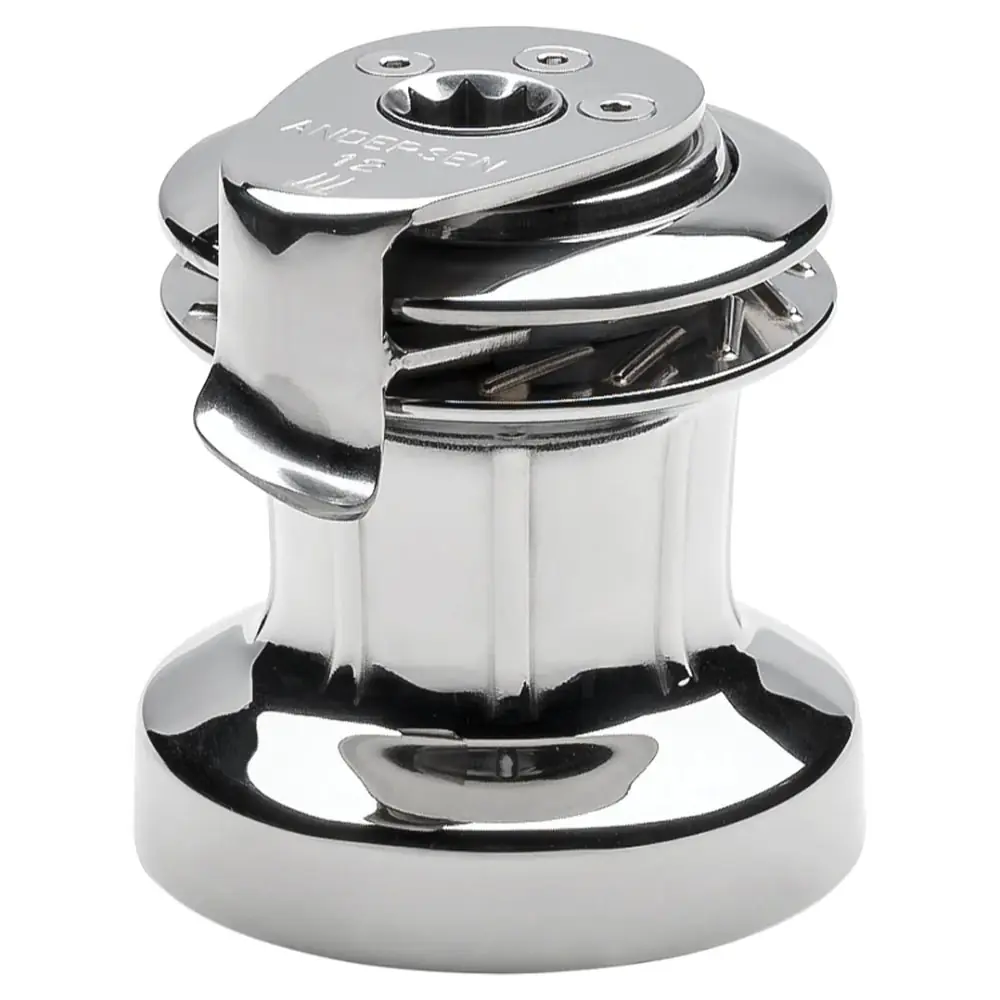

Andersen Full Stainless Self-Tailing Winch

New Flush Top Design
List price:409.20 ex. VAT Price:346.28 ex. VAT You save:62.92 (15%)
Price: 419.00 (inc. VAT)

Save 15%
ANDERSEN RA2012010000
2 in stock
3 days (approx.)
+
Shipping Costs:

Uncompromised performance, reliability and stainless steel durability and surprisingly light

See the Andersen Winch Weight Comparison Chart & Andersen Winch Selection Guide.

Beautifully polished full stainless steel design result is a incredibly long lasting winch that becomes a highlight of the boat. Desirable not only on classic yachts, but on any yacht where performance, elegance and durability are not negotiable. Black Trim model now available to match earlier models with black trim. All winches from size 28 up can be fitted with the new single speed electric upgrade kit, allowing easy cost effective electric conversion when required.

Andersen Standard Self-Tailing Winch with Power Rib

Exclusive self-tailing mechanism - The Andersen Standard series incorporate the exclusive self-tailing mechanism that automatically accommodates a wide range of different sheet and halyard sizes allowing each winch to serve numerous on-board purposes. From raising sails to trimming sheets, these winches provide the reliable power you need for smooth sailing.

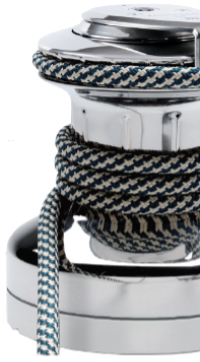

 Stainless steel Power Rib™ drum - The Standard Self-Tailing winch features the exclusive stainless steel Power Rib™ drum which generates maximum horizontal grip but minimizes vertical friction allowing lines to slide up the drum for better efficiency and less wear on ropes, reducing the replacements costs of sheets and halyards. The design allows fewer turns on the winch and makes tacking easier. Sheets can be gently eased out without harsh snatching and the risks of overrides and jammed sheets are significantly reduced. The grip provided by the ribs will remain the same year after year, unlike many other winches with an abrasive or sandpaper-like surface.

Low maintenance design - all Power Rib© pawls and springs are captive, and the design of the winch allows you to strip it down for service and greasing. The aluminium bronze alloy base plate is approximately 2 1/2 times stronger than traditional bronze. The pawls, made from machined AISI 316 cold-pressed stainless steel, are so strong that the winches never risk backing off.

Servicing is only required every 2 years under normal use.

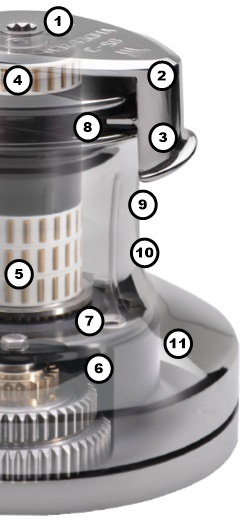

Andersen Full Stainless Steel Winch



  1. AISI 329 stainless steel shaft
  2. 360º adjustable self-tailing (from size 40ST and up)
  3. Low friction curved self-tailing arm
  4. Separated upper and lower bearings for increased support and efficiency
  5. Large-diameter roller bearings to absorb drum loads and increase efficiency
  6. Easy servicing of gears - unbreakable cold-pressed stainless-steel AISI 316L captive pawls
  7. Upper aluminium bronze base plate ensures a light, stiff and rugged construction
  8. Self-tailing system adjusts automatically to suit various rope sizes
  9. Lightweight stainless-steel drum with Power Rib
  10. Polished Power Rib generates horizontal friction but minimizes vertical friction
  11. Lightweight stainless-steel drum combined with an internal construction of aluminium bronze, results in similar weight to aluminium winches but far more durable.

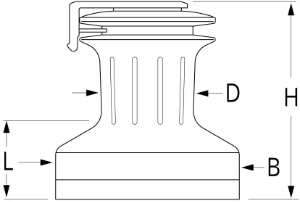

Andersen Full Stainless Winch Dimensions

Model Drum
D mm
Base
B mm
Height
H mm
Entry
L mm
Line
mm
Weight
kg
Gear Ratio
Speed 1
Gear Ratio
Speed 2
Power Ratio
Speed 1
Power Ratio
Speed 2
12 ST FS 70 115 130 44 8-14 2.6 1.3:1 - 9.5:1      -
18 ST FS 70 120 136 50 8-14 3.3 2.6:1 18.8:1      -
28 ST FS 70 125 151 65 8-14 3.9 1.3:1 3.7:1 9.5:1 26.5:1
34 ST FS 70 125 151 65 8-14 4.1 1.3:1 4.7:1 9.5:1 33.8:1
40 ST FS 75 152 174 71 8-14 5.0 1.3:1 6.0:1 8.5:1 39.5:1
46 ST FS 89 180 209 90 8-14 7.8 2.8:1 8.4:1 15.5:1 46.6:1
50 ST FS 89 180 209 90 8-14 7-8 2.8:1 8.8:1 15.5:1 49.3:1
52 ST FS 100 200 228 106 8-16 11.1 3.2:1 10.5:1 16.2:1 52.0:1
58 ST FS 115 230 257 111 8-18 15.8 3.7:1 14.4:1 16.1:1 57.7:1
62 ST FS 115 230 257 111 8-18 15.8 3.7:1 14.4:1 16.1:1 62.6:1
68 ST FS 140 280 280 120 10-18 24.6 5.8:1 18.8:1 20.7:1 67.1:1
72 ST FS 140 280 280 120 10-18 24.6 5.8:1 20.3:1 20.7:1 72.6:1

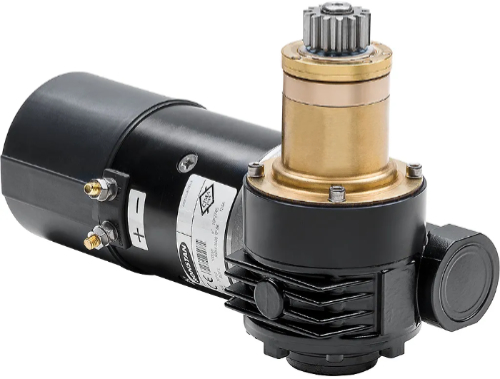

Easy Upgrade to Electric - All Andersen winches from size 28ST upwards are factory prepared for easy upgrade to electric or hydraulic power thanks to the Modular Power System.

Andersen Winch Electric Conversion

  Product Code Andersen Winch - Model Andersen Winch - Size Availability Price
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2012010000
Full Stainless 12ST
In stock
419.00 (inc. VAT)
346.28 ex. VAT
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2018010000

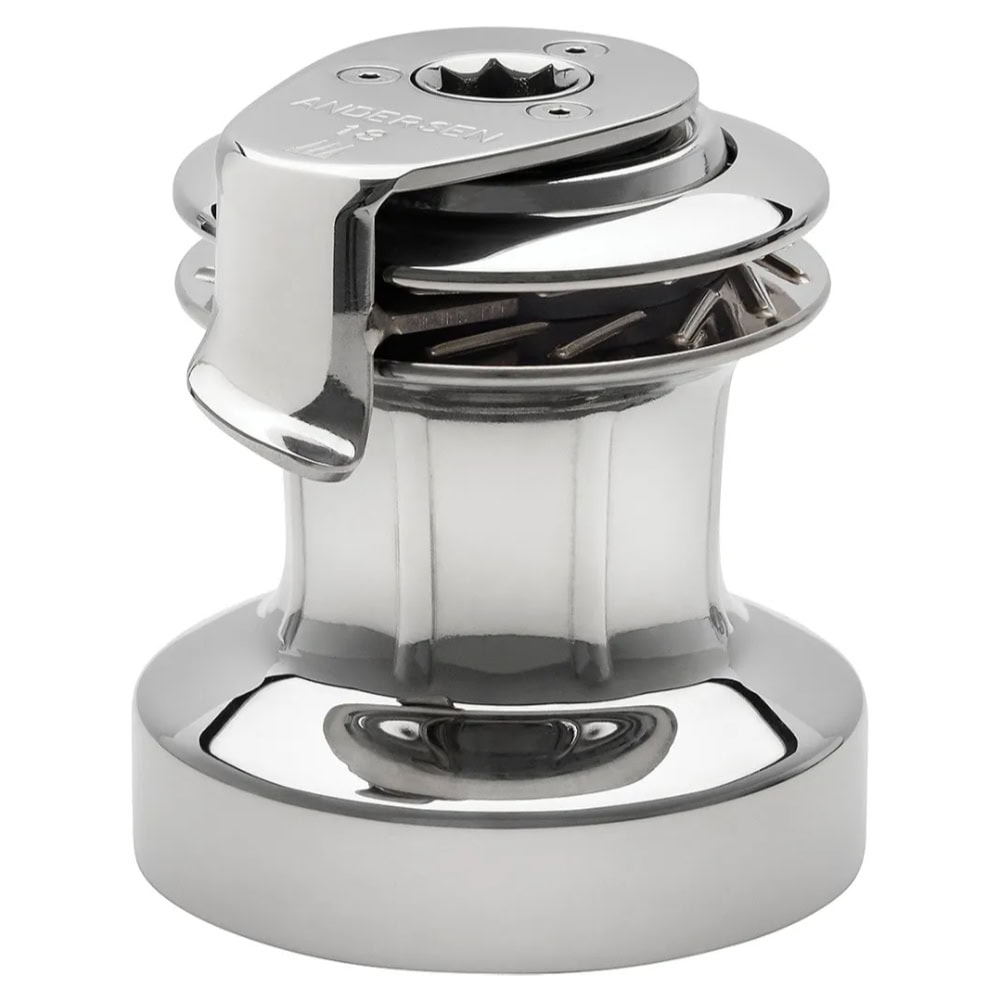

Full Stainless 18ST
In stock
515.00 (inc. VAT)
425.62 ex. VAT
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2028010000
Full Stainless 28ST
3 days
759.00 (inc. VAT)
627.27 ex. VAT
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2034010000
Full Stainless 34ST
In stock
799.00 (inc. VAT)
660.33 ex. VAT
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2040010000
Full Stainless 40ST
In stock
939.00 (inc. VAT)
776.03 ex. VAT
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2046010000
Full Stainless 46ST
3 days
1,299.00 (inc. VAT)
1,073.55 ex. VAT
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2050010000
Full Stainless 50ST
7 days
1,399.00 (inc. VAT)
1,156.20 ex. VAT
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2052010000
Full Stainless 52ST
7 days
1,899.00 (inc. VAT)
1,569.42 ex. VAT
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2058010000
Full Stainless 58ST
7 days
2,699.00 (inc. VAT)
2,230.58 ex. VAT
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2062010000
Full Stainless 62ST
14 days
2,749.00 (inc. VAT)
2,271.90 ex. VAT
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2012000000
Full Stainless Black Trim 12ST
Please Confirm
Contact us
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2018000000
Full Stainless Black Trim 18ST
Please Confirm
Contact us
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2028000000
Full Stainless Black Trim 28ST
Please Confirm
Contact us
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2034000000
Full Stainless Black Trim 34ST
Please Confirm
Contact us
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2040000000
Full Stainless Black Trim 40ST
Please Confirm
Contact us
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2046000000
Full Stainless Black Trim 46ST
Please Confirm
Contact us
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2050000000
Full Stainless Black Trim 50ST
Please Confirm
Contact us
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2052000000
Full Stainless Black Trim 52ST
Please Confirm
Contact us
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2058000000
Full Stainless Black Trim 58ST
Please Confirm
Contact us
Andersen Full Stainless Self-Tailing Winch - bluemarinestore.com
ANDERSEN RA2062000000
Full Stainless Black Trim 62ST
Please Confirm
Contact us
ANDERSEN RA710001
27.23 ex. VAT   32.95
Whether you are heading offshore or you are planning a long distance cruise, keeping a winch service kit on board will allow winch maintenance without...
3 days


LEWMAR 29140040
91.65 ex. VAT   110.90
New and revolutionary design of the standard locking winch handle. The patented and award winning 'OneTouch' mechanism features the unique full length...
In stock


MANUAL12ST-ST_FS_ver3.0-1.0A EN (MANUAL12ST-ST_FS_ver3.0-1.0A.pdf, 999 Kb) [Download]

MANUAL28ST-ST_FSver3.2-3.2F EN (MANUAL28ST-ST_FSver3.2-3.2F.pdf, 981 Kb) [Download]

MANUAL40ST-ST_FSver3.4-3.4F EN (MANUAL40ST-ST_FSver3.4-3.4F.pdf, 989 Kb) [Download]

MANUAL52ST-ST_FSver3.0-3.0F EN (MANUAL52ST-ST_FSver3.0-3.0F.pdf, 1,025 Kb) [Download]

MANUAL58-62ST-ST_FSver1.5-1.2 EN (MANUAL58-62ST-ST_FSver1.5-1.2.pdf, 992 Kb) [Download]

MANUAL68-72ST-ST_FSver2.5-1.2 EN (MANUAL68-72ST-ST_FSver2.5-1.2.pdf, 1,077 Kb) [Download]

MANUAL46-48ST-ST_FSver4.1-4.1F-1.0-1.0F (MANUAL46-48ST-ST_FSver4.1-4.1F-1.0-1.0F.pdf, 1,094 Kb) [Download]
