Ultra-light, ultra-thin, ultra-efficient and flexible, 24% efficiency!
Top of the Solbian range, the Solbian SunPower solar panels use back-contact crystalline silicon cells for an incredible efficiency of over 24%, the most advanced technology available on the market today. Incredibly the highest output 144w panel weighs only 2 kg and is only 2mm thick and due to its flexible backing and multiple installation options and accessories, can be installed almost anywhere on board, if installed on a rigid surface they can be walked on without damage.
The SP series panels use high efficiency monocrystalline back contact cells. The electric contacts create a thick pattern resembling two interpenetrating combs on the rear of the cell, this guarantees an optimal management of micro fractures, without power loss. Back-contact cells are also the best choice when it comes to efficiency in low light and sensitivity at higher temperatures. In fact the temperature coefficient is 25% lower than the other cristalline cells. No grid lines on front of cell means no obstacles to the absorption of sunlight. Maximum efficiency and great aesthetics. Massive strength and resistance to corrosion.

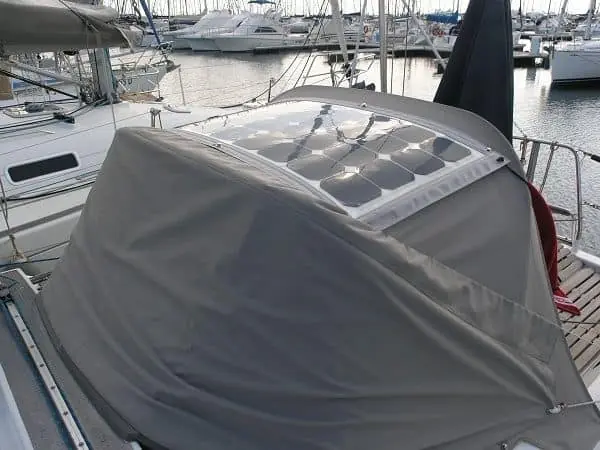

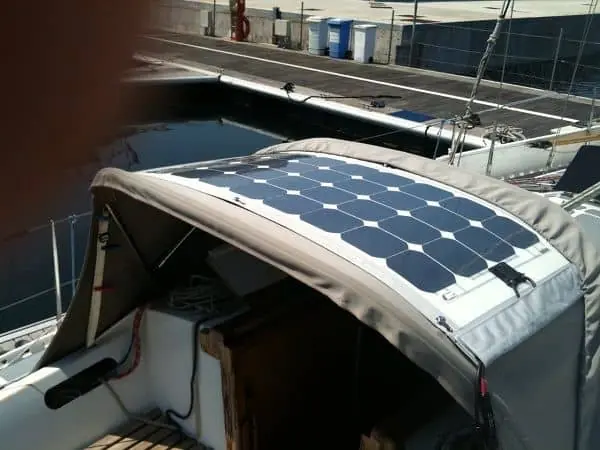

Encapsulated in a unbreakable weatherproof protective plastic film for installation with up to 25% curvature. Tried and tested in the most extreme conditions from offshore round the world racing to remote expeditions.
- 5 year limited power warranty
- 2 year limited product warranty
Available in 52w, 78w, 104w, 118w, 130w and 144w versions.
Model | SP-144 | SP-130 | SP-118L | SP-118Q | SP-104 | SP-78 | SP-52L | SP-52Q |
Peak Power Pmax | 144W | 130W | 118W | 118W | 104W | 78W | 52W | 52W |
Nº of Cells | 44 | 40 | 36 | 36 | 32 | 24 | 16 | 16 |
Rated Voltage Vmp | 25.3V | 22.8V | 20.7V | 20.7V | 18.2V | 13.7V | 9.1V | 9.1V |
Open Circuit Voltage Voc | 30.0V | 27.3V | 24.5V | 24.5V | 21.8V | 16.4V | 10.9V | 10.9V |
Rated Current Imp | 5.7A | 5.7A | 5.7A | 5.7A | 5.7A | 5.7A | 5.7A | 5.7A |
Short Circuit Current Isc | 6.0A | 6.0A | 6.0A | 6.0A | 6.0A | 6.0A | 6.0A | 6.0A |
Dimensions mm | 1490 x 546 | 1363 x 546 | 1236 x 546 | 855 x 800 | 1109 x 546 | 855 x 546 | 1109 x 292 | 601 x 546 |
Thickness mm | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Weight kg | 1.9 | 1.7 | 1.6 | 1.6 | 1.4 | 1.1 | 0.8 | 0.8 |
Due to the lower voltage of the 52w panels, please check compatibility with your solar regulator.
We recommend the Western Co WMarine MPPT & Genasun GV-BOOST MPPT Controllers.
Junction Box
Panel Prices include a junction box and approx. 50 cm of cables to allow connection to the installation. Panels can also be supplied with the Surface Mounting Option where the cables exit the panels at the rear. Holes need to be drilled in the mounting surface, this option allows a perfectly flush installation.
Contact us for details.
Factory Fitted Mounting Options
See the Factory Fitted Mounting Options in the Parts & Accessories tab or at the following link Solbian Flexible Marine Solar Panel Installation Options
Product Code | Solbian Sun Power | Availability | Price | |
---|---|---|---|---|
SOLBIAN SP-50Q
|
In stock
|
€189.00 (inc. VAT)
€156.20 (ex. VAT) |
||
SOLBIAN SP-100
|
In stock
|
€299.00 (inc. VAT)
€247.11 (ex. VAT) |
||
SOLBIAN SP 16 Q
|
10 days
|
€428.00 (inc. VAT)
€353.72 (ex. VAT) |
||
SOLBIAN SP 16 L
|
10 days
|
€428.00 (inc. VAT)
€353.72 (ex. VAT) |
||
SOLBIAN SP 24
|
10 days
|
€639.00 (inc. VAT)
€528.10 (ex. VAT) |
||
SOLBIAN SP 32
|
10 days
|
€855.00 (inc. VAT)
€706.61 (ex. VAT) |
||
SOLBIAN SP 36 Q
|
10 days
|
€969.00 (inc. VAT)
€800.83 (ex. VAT) |
||
SOLBIAN SP 36 L
|
10 days
|
€969.00 (inc. VAT)
€800.83 (ex. VAT) |
||
SOLBIAN SP 40
|
10 days
|
€1,069.48 (inc. VAT)
€883.87 (ex. VAT) |
||
SOLBIAN SP 44
|
10 days
|
€1,179.00 (inc. VAT)
€974.38 (ex. VAT) |
