Solbian SR Super Rugged Flexible Marine Solar Panels

Now Even More Powerful
Up to 248 W - Only 3 KG
List price:360.00 ex. VAT Price:321.49 ex. VAT
Price: 389.00 (inc. VAT)
You save: €38.51 (11%)
Save 11%

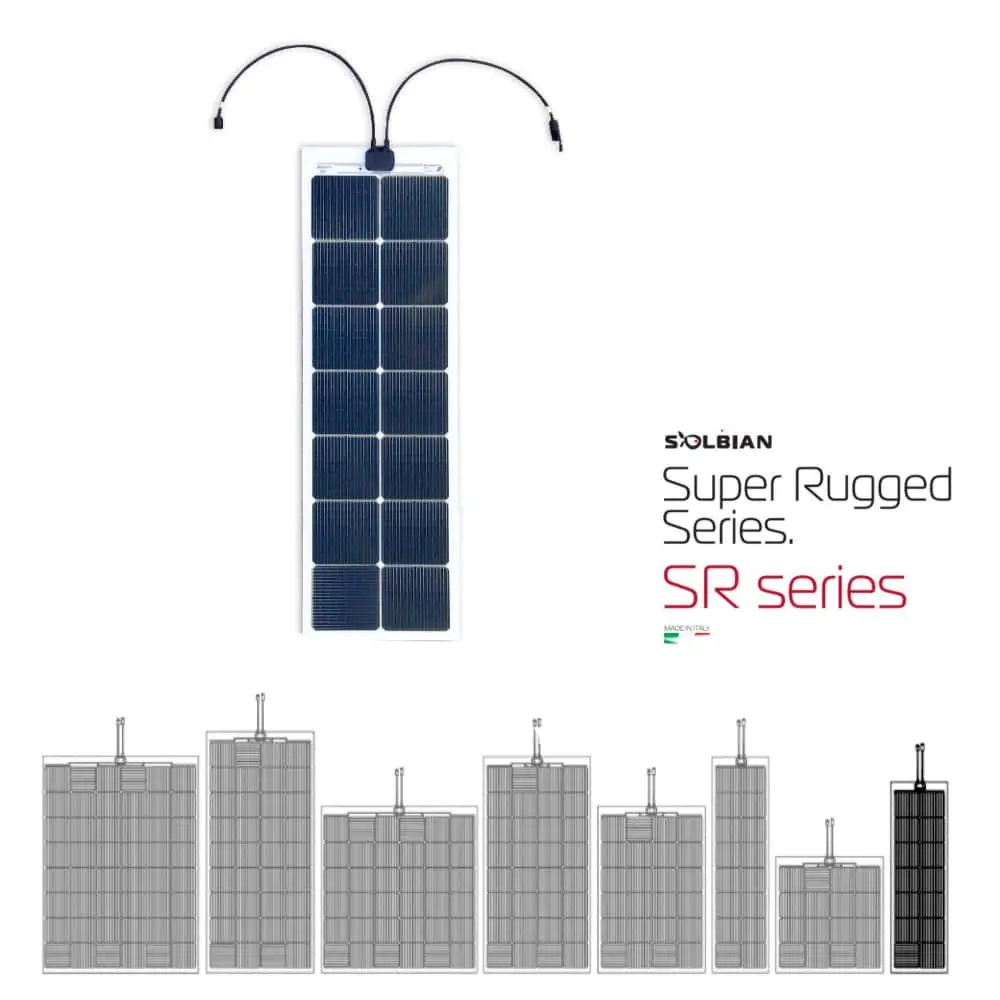

SOLBIAN SR-72
Preorder
10 days (approx.)
+
Shipping Costs:

The most rugged solar panel from Solbian, unmatched durability on flexible surfaces.

Solbian SR Super Rugged

Lightweight, flexible solar panels can be installed on sprayhoods, biminis and other flexible surfaces. Unfortunately constant flexing in these conditions can slowly damage the electrical connections within the panel, eventually causing failure. The SR Super Rugged series use MerlinSolar monocrystalline high efficiency SR cells. Merlin Solar’s patented technology is an innovative pair of metal grids that serve as intracell and inter-cell interconnects. The same copper and solder as any other bus bar cell, but 20 redundant lines and 180+ interconnects, not only enable to extract more power but also dramatically improve the reliability, performance and ruggedness of the solar panels. The grids essentially form a double shield that act as a conducting reinforcement. Extreme crack and bend tolerance are built in. Efficiency and unmatched durability in flexible solar panels.

Solbian Merlin Solar Cells

Efficiency over 19% and flexible up to 25% curvature

The panels are incredibly light, the highest output 248 W panel weighs only 3 kg and is only 2 mm thick. The flexible polymer backing and multiple installation options and accessories, allow the panels to be installed almost anywhere on board. When installed on a rigid surface they can be walked on without damage.

Ideal for use on Bimini tops, covers and awnings without additional support. Can be installed with up to 25% curvature. Tried and tested in the most extreme conditions from offshore round the world racing to remote expeditions.

  • 5 year limited power warranty
  • 2 year limited product warranty



Available in 72 W, 82 W, 124 W, 166 W, 186 W & 248 W versions.

Solbian Super Rugged

Model SR-248 SR-186L SR-186Q SR-166 SR-124 SR-82L SR-82Q SR-72
Peak Power Pmax 248 W 186 W 186 W 166 W 124 W 82 W 82 W 72 W
Nº of Cells 48 36 36 32 24 16 16 14
Rated Voltage Vmp 27 V 20.2 V 20.2 V 18 V 13.5 V 8.9 V 8.9 V 7.8 V
Open Circuit Voltage Voc 32 V 24 V 24 V 21.3 V 16 V 10.7 V 10.7 V 9.3 V
Rated Current Imp 9.2 A 9.2 A 9.2 A 9.2 A 9.2 A 9.2 A 9.2 A 9.2 A
Short Circuit Current Isc 9.8 A 9.8 A 9.8 A 9.8 A 9.8 A 9.8 A 9.8 A 9.8 A
Dimensions mm 1364 x 994 1523 x 683 1046 x 994 1364 x 683 1046 x 683 1364 x 365 728 x 683 1205 x 365
Thickness mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Weight kg 3 2.4 2.4 2.1 1.7 1.2 1.2 1.1


Due to the lower voltage of the 72 W, 82 W & 124 W panels, please check compatibility with your solar regulator.
We recommend a regulator with Boost function.

Solbian Junction Box

Junction Box

Panel Prices include a junction box and cables to allow connection to the solar regulator. Panels can also be supplied without a junction box with soldering ribbons (back strip connection) where a completely flush installation is required. Contact us for details.

Factory Fitted Mounting Options

See the Factory Fitted Mounting Options in the Parts & Accessories tab or at the following link Solbian Flexible Marine Solar Panel Installation Options

  Product Code Solbian Super Rugged Availability Price
Solbian SR Super Rugged Flexible Marine Solar Panels - bluemarinestore.com
SOLBIAN SR-72
SR-72
10 days
389.00 (inc. VAT)
321.49 (ex. VAT)
Solbian SR Super Rugged Flexible Marine Solar Panels - bluemarinestore.com
SOLBIAN SR-82Q
SR-82Q
10 days
439.00 (inc. VAT)
362.81 (ex. VAT)
Solbian SR Super Rugged Flexible Marine Solar Panels - bluemarinestore.com
SOLBIAN SR-82L
SR-82L
10 days
439.00 (inc. VAT)
362.81 (ex. VAT)
Solbian SR Super Rugged Flexible Marine Solar Panels - bluemarinestore.com
SOLBIAN SR-124
SR-124
10 days
669.00 (inc. VAT)
552.89 (ex. VAT)
Solbian SR Super Rugged Flexible Marine Solar Panels - bluemarinestore.com
SOLBIAN SR-166
SR-166
10 days
899.01 (inc. VAT)
742.98 (ex. VAT)
Solbian SR Super Rugged Flexible Marine Solar Panels - bluemarinestore.com
SOLBIAN SR-186Q
SR-186Q
10 days
949.00 (inc. VAT)
784.30 (ex. VAT)
Solbian SR Super Rugged Flexible Marine Solar Panels - bluemarinestore.com
SOLBIAN SR-186L
SR-186L
10 days
999.00 (inc. VAT)
825.62 (ex. VAT)
Solbian SR Super Rugged Flexible Marine Solar Panels - bluemarinestore.com
SOLBIAN SR-248
SR-248
10 days
1,349.00 (inc. VAT)
1,114.88 (ex. VAT)
SOLBIAN ADHESIVE BACKING
29.75 ex. VAT   36.00
Solbian Factory Fitted Mounting Options (Available when ordering Solbian Solar Panels) Structural Adhesive Backing Suitable...
10 days


VICTRON ENERGY SCA000100000
8.01 ex. VAT   9.69
High quailty single core tinned extension cable with MC4 (PV-ST01) quick connect plugs for solar panels. The cables have 1 x Male MC4 plug and 1 x...
In stock


VICTRON ENERGY SCA520500000
0.01 ex. VAT   0.01
Dual socket MC4-Y connectors allow two solar panels to be connected in parallel and feature quick connect male and female plugs. Suitable for use with...
In stock
+

WESTERNCO WMARINE10
177.69 ex. VAT   215.00
10 AMP MPPT Solar Regulator with Buck Boost for low voltage solar panels. The Western Co. WMarine 10 is a versatile MPPT controller suitable for use...
7 days
+

GENASUN GVB-8-PB-12V
122.27 ex. VAT   147.95
8 AMP MPPT Solar Regulator with Boost for lower voltage solar panels. Most solar charge controllers require a higher voltage panel to charge a...
In stock


SOLBIAN MC4 DECK CONNECTOR KIT
41.28 ex. VAT   49.95
Polished stainless steel deck plate with male and female (positive & negative) MC4 connectors. Elegant solution for easily installing solar panels...
In stock
+

SUNCON MC4 DIODE CONNECTOR
6.20 ex. VAT   7.50
Waterproof 10 amp quick connect MC4 connector with built in diode. Perfect for quick installation of multiple solar panels with MC4 connectors. Male and...
In stock
+

Solbian Super Rugged Series Brochure (1,074 Kb) - Download
