Solbian ALLinONE AiO - Flexible Solar Panel & MPPT Regulator

List price:200.00 ex. VAT Price:180.99 ex. VAT You save:19.01 (10%)
Price: 219.00 (inc. VAT)

Save 10%
SOLBIAN SP-23 AIO 12V
Preorder
10 days (approx.)
+
Shipping Costs:

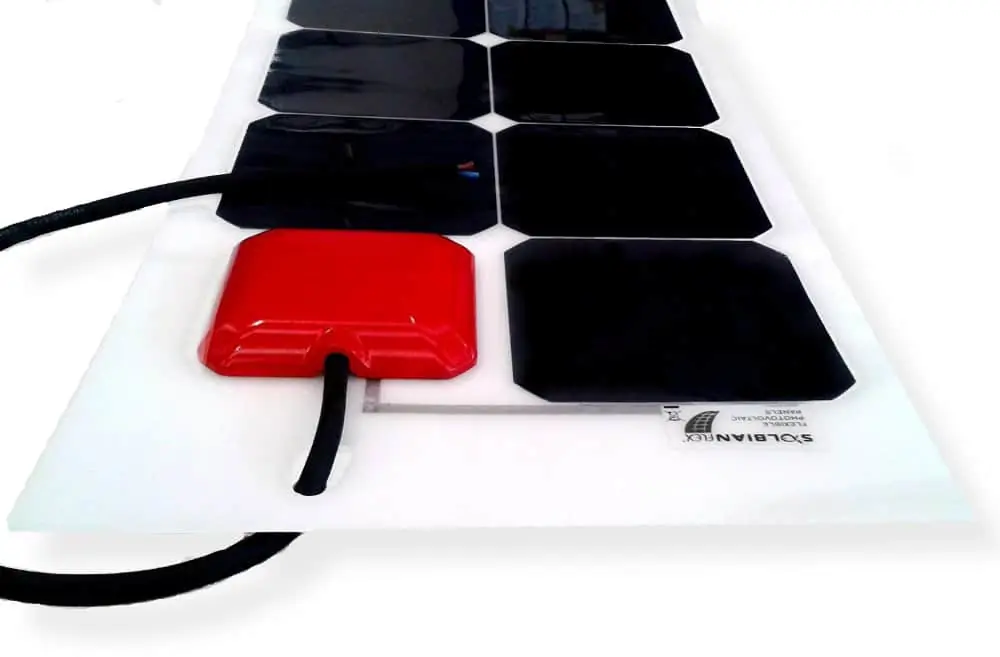

Flexible solar panel with built in MPPT regulator, just connect the output cable to your batteries!

Innovative solar solution from Solbian. The ALLinONE AiO flexible solar panel + built-in charge controller. All the electronics you need is already packed into the rugged waterproof metal box, a sophisticated MPPT controller capable of boosting the voltage for a perfect fit to your battery. Just connect the output cable to your batteries (circuit breaker or fuse recommended) and the MPPT regulator supplies the required voltage and current for safe battery charging. Perfect solution for maintaining your batteries perfectly charged when your boat is not in use.

Available in both SunPower and Super Rugged versions:

Solbian SunPower All in One (SP AIO)

The most efficient solar panel from Solbian with SunPower monocrystalline solar cells for the highest efficiency available on the market, a record 24% conversion of sunlight to electricity.

See details -
Solbian Sun Power Flexible Marine Solar Panels



Solbian Super Rugged All in One (SR AIO) -

The most rugged solar panel from Solbian, unmatched durability on flexible surfaces with an efficiency over 19%.

See details -
Solbian SR Super Rugged Flexible Marine Solar Panels



As with all Solbian panels the AllinOne are incredibly light, thin and flexible up to 25% curvature, with multiple mounting options for installation anywhere onboard. The smallest panel, the SP-23 ALLinONE is ideal for maintaining batteries when the boat is not in use.

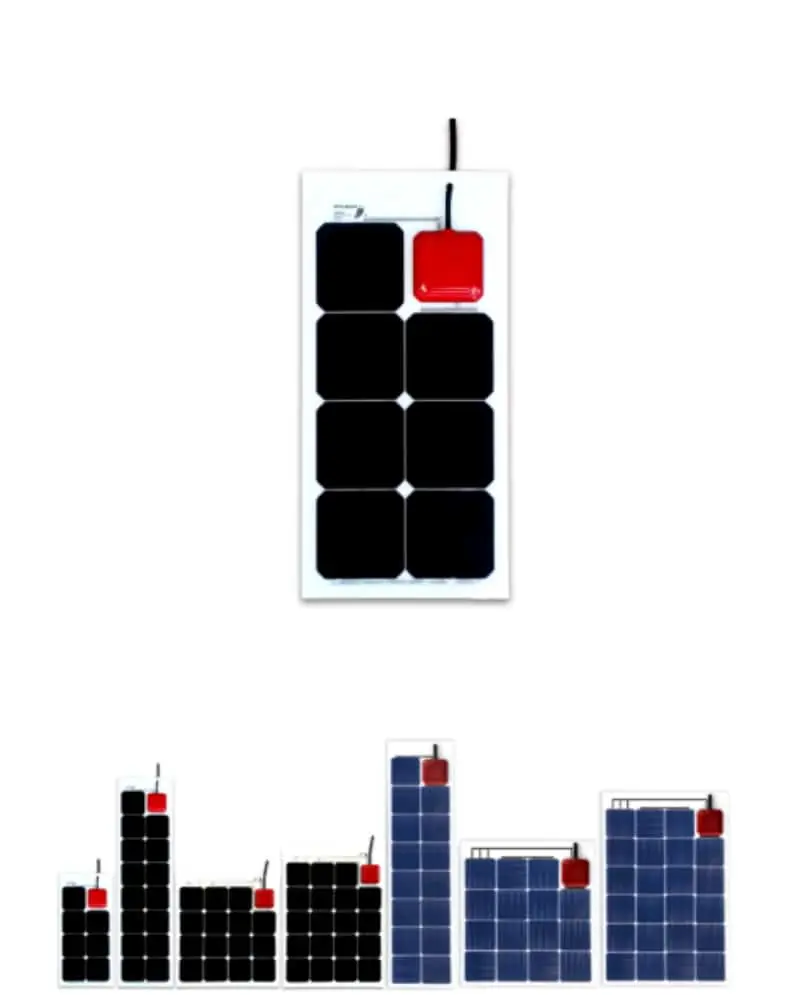

Available in 7  models from 23 w to 118 W power output for 12 V or 24 V sytems.


Model Type Power
W
Battery Voltage
V
Maximum Current
A 12 V (24 V)
Thickness
mm
Dimensions
mm
Weight
kg
SP 23 AiO SunPower 23 12/(24) 2/(1) 15 600 x 292 0.6
SP 47Q AiO SunPower 47 12/(24) 4/(2) 15 601 x 546 0.9
SP 47L AiO SunPower 47 12/(24) 4/(2) 15 1109 x 292 0.9
SP 60 AiO SunPower 60 12/(24) 5/(2.5) 15 728 x 546 1.1
SP 72 AiO (2020) SunPower 72 12 6 15 855 x 546 1.2
SR 76Q AiO Super Rugged 76 12(24) 6/(3) 15 728 x 683 1.3
SR 76L AiO Super Rugged 76 12(24) 6/(3) 15 1364 x 365 1.3
SR 118 AiO Super Rugged 118 12/(24)  9/(5) 23 1046 x 683 1.7


Factory Fitted Mounting Options

See the Factory Fitted Mounting Options at the following link
Solbian Flexible Marine Solar Panel Installation Options

Solbian Mounting Options

  Product Code AiO Model AiO Voltage Availability Price
Solbian ALLinONE AiO - Flexible Solar Panel & MPPT Regulator - bluemarinestore.com
SOLBIAN SP-23 AIO 12V
SP 23 AiO 12 V
10 days
219.00 (inc. VAT)
180.99 ex. VAT
Solbian ALLinONE AiO - Flexible Solar Panel & MPPT Regulator - bluemarinestore.com
SOLBIAN SP-23 AIO 24V
SP 23 AiO 24 V
10 days
219.00 (inc. VAT)
180.99 ex. VAT
Solbian ALLinONE AiO - Flexible Solar Panel & MPPT Regulator - bluemarinestore.com
SOLBIAN SP-47L AIO 12V
SP 47L AiO 12 V
10 days
435.00 (inc. VAT)
359.50 ex. VAT
Solbian ALLinONE AiO - Flexible Solar Panel & MPPT Regulator - bluemarinestore.com
SOLBIAN SP-47L AIO 24V
SP 47L AiO 24 V
10 days
435.00 (inc. VAT)
359.50 ex. VAT
Solbian ALLinONE AiO - Flexible Solar Panel & MPPT Regulator - bluemarinestore.com
SOLBIAN SP-47Q AIO 12V
SP 47Q AiO 12 V
10 days
435.00 (inc. VAT)
359.50 ex. VAT
Solbian ALLinONE AiO - Flexible Solar Panel & MPPT Regulator - bluemarinestore.com
SOLBIAN SP-47Q AIO 24V
SP 47Q AiO 24 V
10 days
435.00 (inc. VAT)
359.50 ex. VAT
Solbian ALLinONE AiO - Flexible Solar Panel & MPPT Regulator - bluemarinestore.com
SOLBIAN SP-72 AIO 12V
SP 72 AiO (2020) 12 V
In stock
399.00 (inc. VAT)
329.75 ex. VAT
Solbian ALLinONE AiO - Flexible Solar Panel & MPPT Regulator - bluemarinestore.com
SOLBIAN SP-60 AIO 12V
SP 60 AiO 12 V
10 days
589.00 (inc. VAT)
486.78 ex. VAT
Solbian ALLinONE AiO - Flexible Solar Panel & MPPT Regulator - bluemarinestore.com
SOLBIAN SP-60 AIO 24V
SP 60 AiO 24 V
10 days
589.00 (inc. VAT)
486.78 ex. VAT
SOLBIAN ADHESIVE BACKING
30.00 ex. VAT  29.75 ex. VAT   36.00 (-1%)
Solbian Factory Fitted Mounting Options (Available when ordering Solbian Solar Panels) Structural Adhesive Backing Suitable...
10 days


Solbian AllinOne Series Datasheet EN (Solbian_ALLinONE_Series.pdf, 564 Kb) [Download]
