Solara M-Series Semi Flexible Marine Solar Panels

List price:688.24 ex. VAT Price:635.54 ex. VAT
Price: 769.00 (inc. VAT)
You save: €52.70 (8%)
Save 8%
SOLARA S400M41
Preorder
7 days (approx.)
+
Shipping Costs:

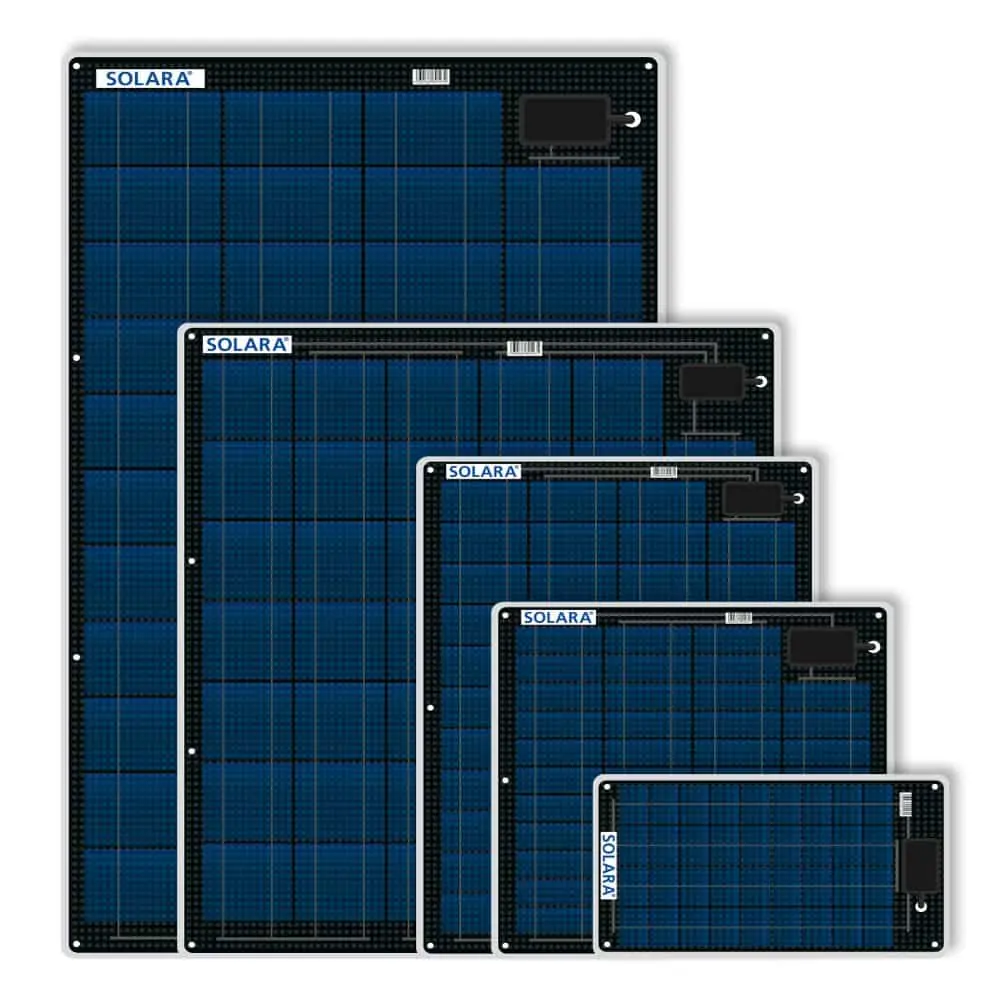

The Solara M-Series marine solar panels.

Solara solar panels

Building on 20 years success with the original series, Solara has redesigned the M-Series for higher performance and a significant weight reduction without sacrificing the ruggedness and reliability which have made the panels among the most popular in the world.

As used aboard KingFisher and many other boats in world class events. The M-Series were specially developed for marine use not only on yachts but on buoys, life-rafts and marine industrial applications, they can definitely be considered tried and tested.

Still manufactured in Germany and now with a 5 year guarantee.


Thin, lightweight and rugged semi flexible marine solar panels.

The new M-series have an ultra-thin aluminium sandwich backing plate which as well as being very strong and flexible up to 3%, is also much lighter than the stainless steel plate used previously. A Nowoflon protective film coating on the front and back and sealed on the sides completely encapsulates the panel making them extremely rugged and if installed on a solid surface can be walked on without fear of damage. The aluminium sandwich backing plate helps to dissipate heat and provides up to 50% weight saving compared to the previous design.

Maximum power with up to 43 cells.

The new M-Series feature from 36 to 43 (depending on the model) crystalline high performance cells ensuring maximum daily power output and incredible low-light performance even under cloudy and partially shaded conditions.

Easy installation & zero maintenance

The new Solara M-Series feature a very low profile waterproof junction box with 3 metres of cable. The panels feature a window adjacent to the junction box which can be drilled out. The cable is then passed through this hole and below decks beneath the panel. The panel is then installed over the hole in the deck and a water resistant cable gland is created as well as a very neat and profesional installation. Drill holes are also marked for installation screws. to avoid hotspots on the panel, all panels are provided with a cell protector for installation below decks. Solara M-series panels can simply be screwed or glued onto solid surfaces allowing easy and low cost installation.

Our recommendation for deck and coach house installations

Due to their rugged design and textured surface, we recommend the Solara M-Series for deck and coach house installations. They industry standard voltage output allows them to be used with almost all the regulators we offer.

Panel features:

  • Semi flexible - only 3mm thick, can be installed on surfaces with up to 3% curvature
  • Robust - with an encapsulated aluminium sandwich backing plate, these panels can be walked on, if installed on a solid surface
  • Resistant – sea water resistant due to protective embedding of the solar cells. Dirt repelling high tech surface
  • Thin - flat cable outlet optimized for maritime use with cable gland feature
  • Efficient - highest energy output even in diffuse light conditions and months with little light incidence


Available in 5 models from 12 to 80 watts for 12v systems.



Paneles Solares Marinos Solara Serie-M



  S50P36 S110P42 S170P43 S220P43 S320P41
Power in Watts 12 27 41 55 80
No of Solar Cells 36 42 43 43 41
Output Voltage Maximum Power Vmp 19.15v 22.34v 22.88v 22.88v 21.81
Voltage Open Circuit Voc 22.72v 26.50v 27.13v 27.13v 25.87
Amps at Max power Imp 0.61 1.22 1.81 2.40 3.62
Dimensions in mm 243 x 431 481 x 464 481 x 654 481 x 844 695 x 798
Weight kg 0.9 1.7 2.2 2.8 3.7


New Models

  S50M36 S140M42 S200M43 S280M43 S400M41
Power in Watts 15 35 50 70 100
No of Solar Cells 36 42 43 43 41
Output Voltage Maximum Power Vmp
Voltage Open Circuit Voc
Amps at Max power Imp
Dimensions in mm 243 x 431 481 x 464 481 x 654 481 x 844 695 x 798
Weight kg 0.7 1.5 2.0 2.6 3.5
  Product Code M Series Availability Price
Solara M-Series Semi Flexible Marine Solar Panels - bluemarinestore.com

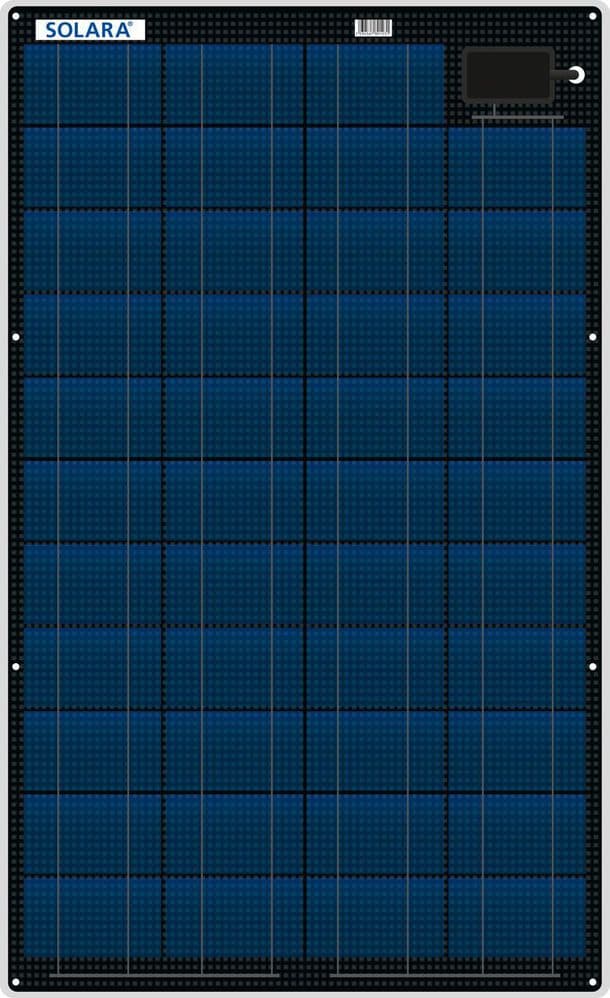

SOLARA S110P42
S110P42 - 27 W (2021)
In stock
299.00 (inc. VAT)
247.11 (ex. VAT)
Solara M-Series Semi Flexible Marine Solar Panels - bluemarinestore.com
SOLARA S140M42
S140M42 - 35 W
7 days
389.00 (inc. VAT)
321.49 (ex. VAT)
Solara M-Series Semi Flexible Marine Solar Panels - bluemarinestore.com
SOLARA S200M42
S200M42 - 50 W
7 days
479.00 (inc. VAT)
395.87 (ex. VAT)
Solara M-Series Semi Flexible Marine Solar Panels - bluemarinestore.com
SOLARA S280M43
S280M43 - 70 W
7 days
619.00 (inc. VAT)
511.57 (ex. VAT)
Solara M-Series Semi Flexible Marine Solar Panels - bluemarinestore.com
SOLARA S400M41
S400M41 - 100 W
7 days
769.00 (inc. VAT)
635.54 (ex. VAT)

Solara M-Series DataSheet DE (456 Kb) - Download

Solara M-Series DataSheet EN (464 Kb) - Download

Solara Power M-Series - M-Series Installation Manual EN (221 Kb) - Download
