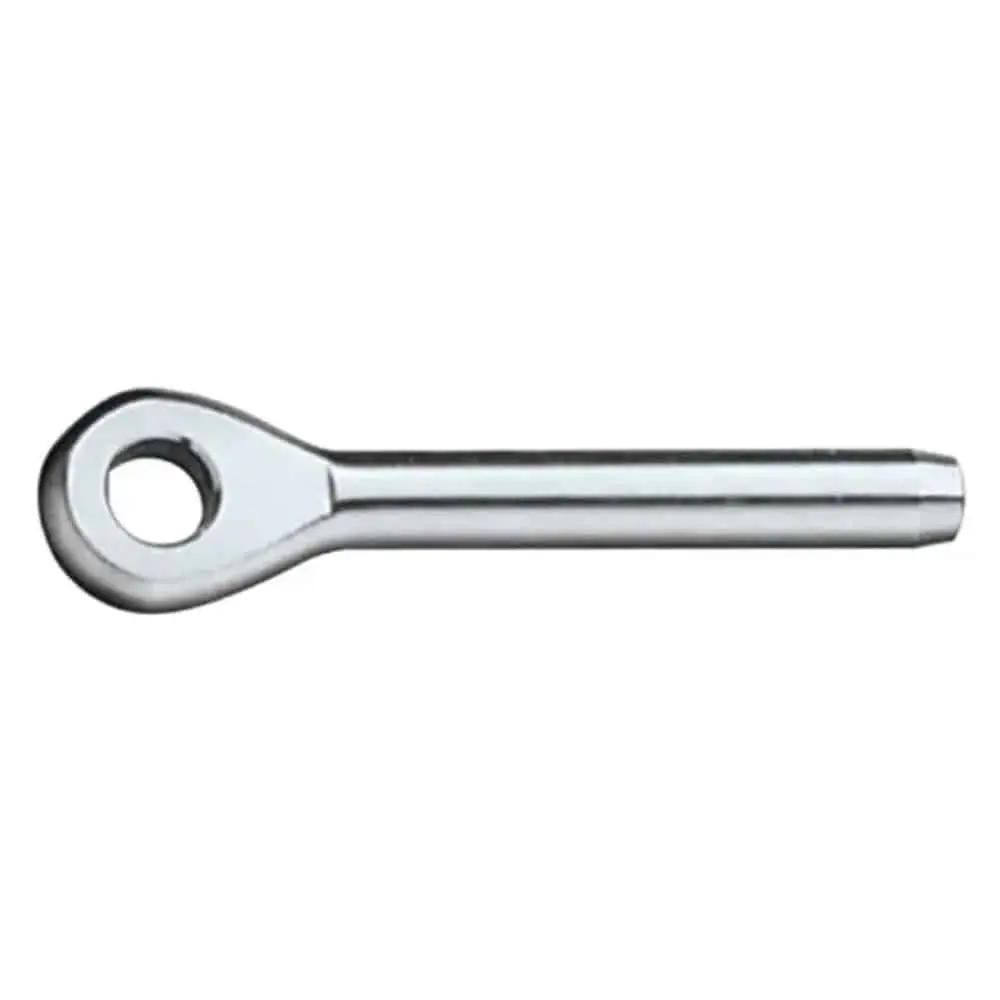

Ronstan Stainless Steel Eye Terminal
Highly polished AISI 316 stainless steel metric eye terminal. Requires swaging.
For easy and cost-effective rigging replacement we recommend ordering the required cable length plus 1 metre (approx.) with a swaged terminal on the upper end (mast fitting). The lower end can then fitted with a swageless terminal allowing exact measurement and final fitting onboard.
For the fabrication of rigging with swaged terminals at both ends we need the exact measurement from eye centre to eye centre.
| Wire | Ref. | A mm |
B mm |
C mm |
D mm |
E mm |
Weight g |
| 4 mm | RF1501M0405 | 6.1 | 8.5 | 18.5 | 64 | 8.1 | 22 |
| 5 mm | RF1501M0505 | 6.1 | 8.5 | 19.1 | 74.6 | 8.1 | 30 |
| 5 mm | RF1501M0506 | 7.7 | 10.0 | 21.1 | 76.6 | 9.7 | 38 |
| 6 mm | RF1501M0608 | 9.5 | 12.5 | 27.1 | 97.5 | 13.0 | 95 |
| 7 mm | RF1501M0708 | 12.5 | 13.5 | 30.9 | 109.9 | 13.0 | 138 |
| 8 mm | RF1501M0808 | 12.5 | 13.5 | 29.5 | 118.0 | 13.0 | 174 |
| 8 mm | RF1501M0810 | 14.0 | 15.5 | 28.0 | 116.5 | 16.3 | 182 |
| 10 mm | RF1501M1010 | 14.0 | 15.5 | 29.0 | 139.5 | 16.3 | 228 |
| Product Code | Wire Diameter | Availability | Price | |
|---|---|---|---|---|
|
RONSTAN RF1501M0405
|
7 days
|
€13.69 (inc. VAT)
€11.31 (ex. VAT) |
|
|
|
RONSTAN RF1501M0506
|
7 days
|
€16.89 (inc. VAT)
€13.96 (ex. VAT) |
|
|
|
RONSTAN RF1501M0608
|
7 days
|
€23.69 (inc. VAT)
€19.58 (ex. VAT) |
|
|
|
RONSTAN RF1501M0708
|
7 days
|
€29.19 (inc. VAT)
€24.12 (ex. VAT) |
|
|
|
RONSTAN RF1501M0808
|
7 days
|
€29.49 (inc. VAT)
€24.37 (ex. VAT) |
|
|
|
RONSTAN RF1501M0810
|
7 days
|
€30.49 (inc. VAT)
€25.20 (ex. VAT) |
|
|
|
RONSTAN RF1501M1010
|
7 days
|
€36.59 (inc. VAT)
€30.24 (ex. VAT) |
