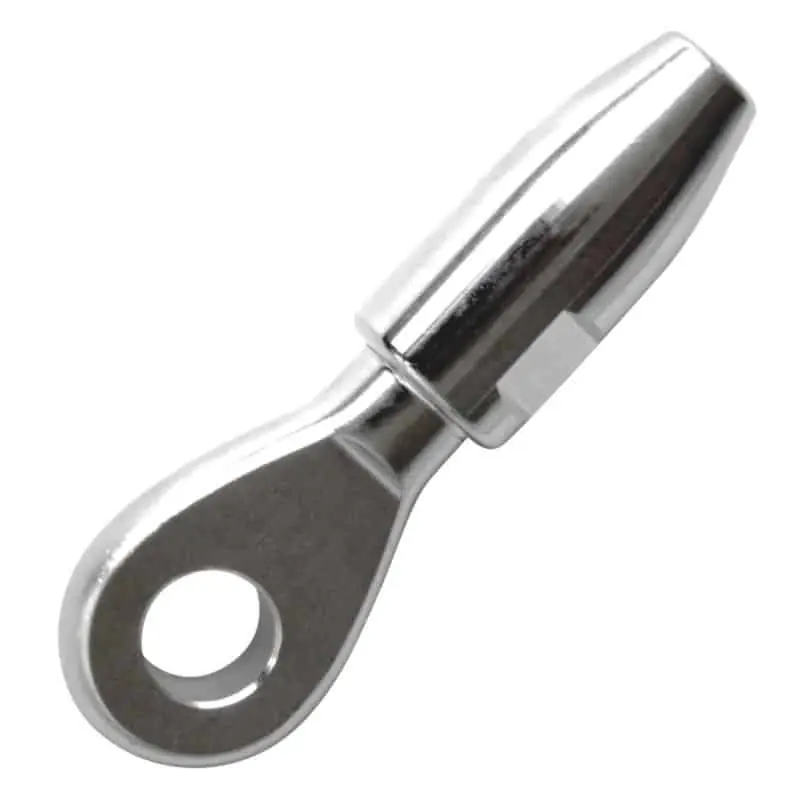

Blue Wave Swageless Cone Eye Terminal

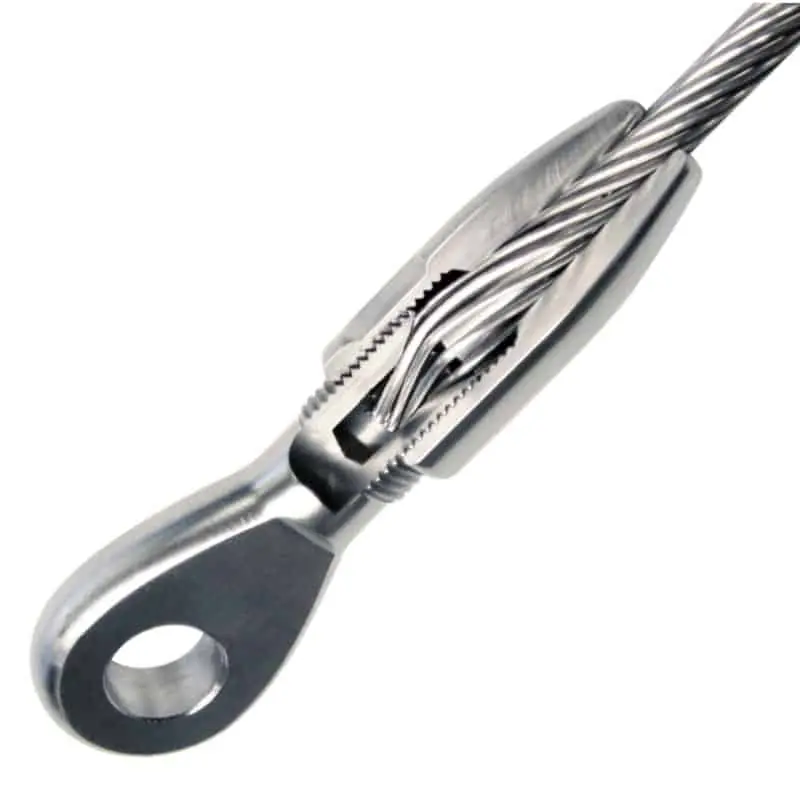

Highly polished stainless steel AISI 316, swageless cone eye terminal for 1x19 wire. Installed quickly by hand with just tools we normally have on board. In our opinion swageless terminals are not only more reliable than swaged terminals but they can be inspected, re-used and are ideal for emergency repairs even in the most remote locations. Wire Sizes 4 mm - 10 mm normally in stock.
See Downloads and Attachments for detailed assembly instructions.
See Downloads and Attachments for detailed assembly instructions.

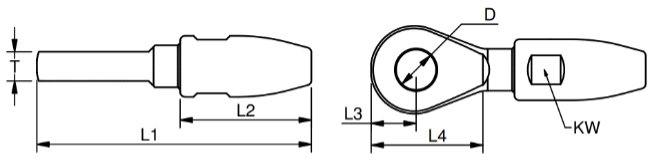

| Wire Ø | REF. | D mm |
T mm |
KW mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
Break Load kg |
Weight kg |
| 4 mm | SC820804 | 8.3 | 6 | 12 | 57 | 27 | 9 | 25 | 2200 | 0.037 |
| 5 mm | SC821005 | 10.2 | 8 | 14 | 64 | 30 | 11 | 28 | 2800 | 0.062 |
| 6 mm | SC821306 | 13 | 10 | 17 | 78 | 38 | 14 | 24 | 5000 | 0.109 |
| 8 mm | SC821308 | 13 | 10 | 22 | 105 | 54 | 14.5 | 38.5 | 7000 | 0.233 |
| 8 mm | SC821608 | 16.5 | 12 | 22 | 113 | 54 | 19 | 46 | 8000 | 0.277 |
| 10 mm | SC821610 | 16.5 | 12 | 27 | 126 | 64 | 19 | 46 | 9500 | 0.405 |
| 10 mm | SC821910 | 19.5 | 16 | 27 | 133 | 64 | 21 | 53 | 11000 | 0.467 |
| 12 mm | SC821912 | 19.5 | 16 | 33 | 154 | 82 | 21 | 56 | 17000 | 0.778 |
| Product Code | Swageless Cone Eye Terminal | Availability | Price | |
|---|---|---|---|---|
|
BLUE WAVE SC820804
|
In stock
|
€30.89 (inc. VAT)
€25.53 (ex. VAT) |
|
|
|
BLUE WAVE SC821910
|
In stock
|
€102.95 (inc. VAT)
€85.08 (ex. VAT) |
|
|
|
BLUE WAVE SC821306
|
In stock
|
€52.95 (inc. VAT)
€43.76 (ex. VAT) |
|
|
|
BLUE WAVE SC821608
|
In stock
|
€86.95 (inc. VAT)
€71.86 (ex. VAT) |
|
|
|
BLUE WAVE SC821005
|
In stock
|
€38.70 (inc. VAT)
€31.98 (ex. VAT) |
|
|
|
BLUE WAVE SC821610
|
Discontinued Product
|
€102.95 (inc. VAT)
€85.08 (ex. VAT) |
