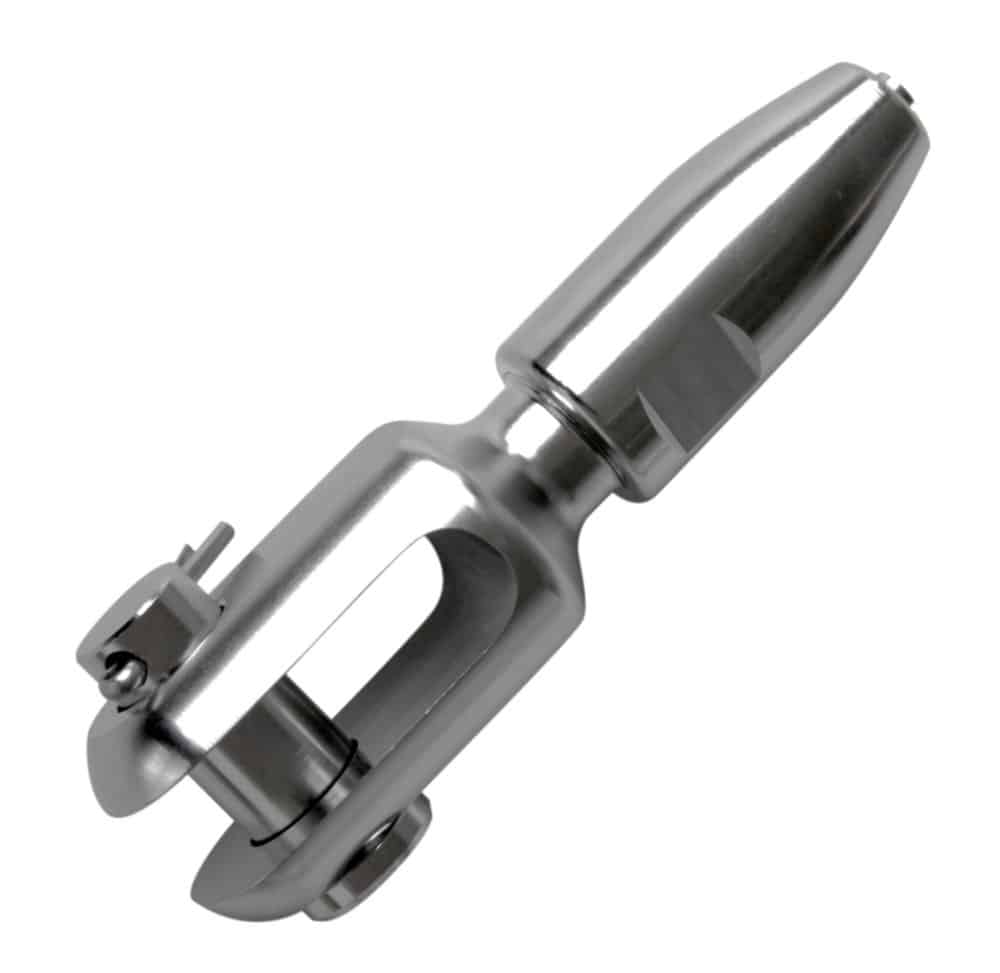

Blue Wave Swageless Cone Fork Terminal

Price:26.36 ex. VAT
Price: 31.90 (inc. VAT)
BLUE WAVE SC840804
3 days
+
Shipping Location:
Highly polished stainless steel AISI 316, swageless cone fork terminal for 1x19 wire. Installed quickly by hand with just tools we normally have on board. In our opinion swageless terminals are not only more reliable than swaged terminals but they can be inspected, re-used and are ideal for emergency repairs even in the most remote locations. Wire Sizes 4mm - 10mm normally in stock.

Blue Wave Swageless Cone Terminals
See Downloads and Attachments for detailed assembly instructions.

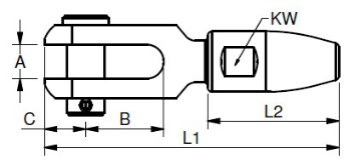

Blue Wave Swageless Cone Fork Terminal

Wire Ø REF. Pin
mm
A
mm
B
mm
C
mm
KW
mm
L1
mm
L2
mm
Break Load
kg
Weight
kg
4mm SC840804 8 6.5 16 9 12 62 27 2200 0.061
5mm SC841005  9.5 21 11 14 73 30 2800 0.106
6mm SC841306  12.7 11 26 13.5 17 90 38 4400 0.180
8mm SC841308 12.7 11 30 13.5 22 112 54 6000 0.317
8mm SC841608 16 14 32 17 22 120 54 8000 0.420
10mm SC821910 19 18 35 21 27 142 64 11000 0.706
12mm  SC821912 19 18 39 21 33 162 82 17000 1.085



  Product Code Swageless Cone Fork Terminal Availability Price
Blue Wave Swageless Cone Fork Terminal - bluemarinestore.com
BLUE WAVE SC840804
4 mm - SC840804
3 days
26.36 ex. VAT

31.90 (inc. VAT)

Blue Wave Swageless Cone Fork Terminal - bluemarinestore.com
BLUE WAVE SC841005
5 mm - SC841005
3 days
30.54 ex. VAT

36.95 (inc. VAT)

Blue Wave Swageless Cone Fork Terminal - bluemarinestore.com
BLUE WAVE SC841306
6 mm - SC841306
3 days
41.28 ex. VAT

49.95 (inc. VAT)

Blue Wave Swageless Cone Fork Terminal - bluemarinestore.com
BLUE WAVE SC841308
8 mm - SC841608
3 days
65.29 ex. VAT

79.00 (inc. VAT)

Blue Wave Swageless Cone Fork Terminal - bluemarinestore.com
BLUE WAVE SC841910
10 mm - SC841910
3 days
81.82 ex. VAT

99.00 (inc. VAT)

Bluewave Swageless Terminals Installation English (Blue_Wave_Swageless_Cone_Terminals_Installation.pdf, 574 Kb) [Download]
