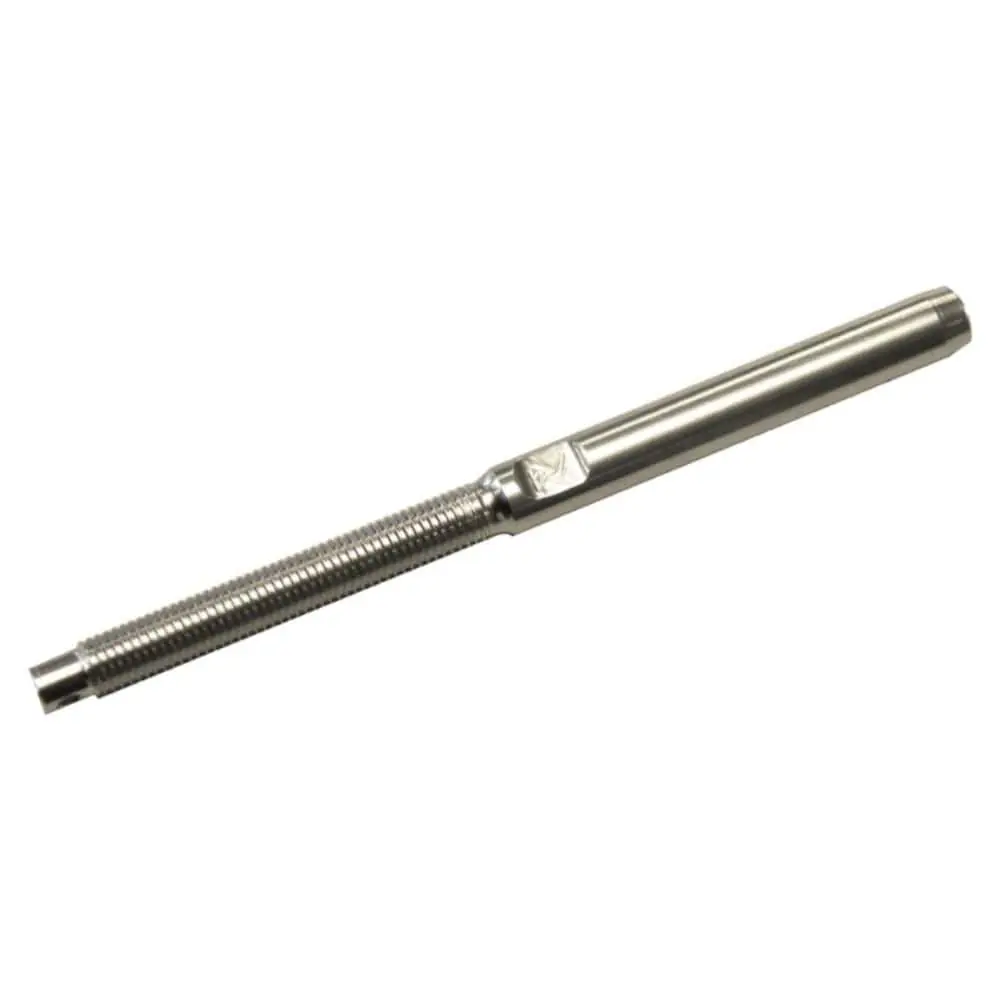

Blue Wave Stainless Steel UNF Thread Terminal
Polished AISI 316 stainless steel UNF thread terminal for swaging. Guaranteed quality from Blue Wave.
Available in right-hand and left-hand thread versions for wire from 3 mm to 12 mm.
All dimensions in mm
| Wire | Thread | Ref. | G UNF Thread |
D1 | L1 | L2 | L3 | Break Load kg |
Weight g |
| 3 mm | Right | 930306A | 1/4¨ | 6.35 | 100 | 48 | 38 | 1300 | 022 |
| 4 mm | Right | 930406A | 1/4¨ | 7.5 | 110 | 48 | 45 | 1300 | 025 |
| 4 mm | Right | 930408A | 5/16¨ | 7.5 | 117 | 57 | 45 | 1700 | 038 |
| 5 mm | Right | 930508A | 5/16¨ | 9.0 | 125 | 57 | 51 | 2200 | 040 |
| 5 mm | Right | 930510A | 3/8¨ | 9 | 130 | 63 | 51 | 2400 | 053 |
| 6 mm | Right | 930610A | 3/8¨ | 12.58 | 145 | 63 | 64 | 3400 | 084 |
| 6 mm | Right | 930611A | 7/16¨ | 12.58 | 157 | 68 | 64 | 4600 | 100 |
| 6 mm | Right | 930612A | 1/2 | 12.58 | 162 | 80 | 64 | 5400 | 108 |
| 7 mm | Right | 930711A | 7/16¨ | 14.2 | 162 | 68 | 70 | 4600 | 127 |
| 7 mm | Right | 930712A | 1/2¨ | 14.2 | 170 | 80 | 70 | 6100 | 140 |
| 8 mm | Right | 930812A | 1/2¨ | 16.0 | 185 | 80 | 83 | 6100 | 192 |
| 8 mm | Right | 930816A | 5/8¨ | 16.0 | 203 | 100 | 83 | 8700 | 259 |
| 10 mm | Right | 931016A | 5/8¨ | 17.8 | 212 | 100 | 89 | 9700 | 301 |
| 10 mm | Right | 931020A | 3/4¨ | 17.8 | 230 | 120 | 89 | 9700 | 391 |
| 12 mm | Right | 931220A | 3/4¨ | 20.0 | 249 | 120 | 105 | 11400 | 479 |
| 3 mm | Left | 940306A | 1/4¨ | 6.35 | 100 | 48 | 38 | 1300 | 022 |
| 4 mm | Left | 940406A | 1/4¨ | 7.5 | 110 | 48 | 45 | 1300 | 025 |
| 4 mm | Left | 940408A | 5/16¨ | 7.5 | 117 | 57 | 45 | 1700 | 038 |
| 5 mm | Left | 940508A | 5/16¨ | 9.0 | 125 | 57 | 51 | 2200 | 040 |
| 5 mm | Left | 940510A | 3/8¨ | 9 | 130 | 63 | 51 | 2400 | 053 |
| 6 mm | Left | 940610A | 3/8¨ | 12.58 | 145 | 63 | 64 | 3400 | 084 |
| 6 mm | Left | 940611A | 7/16¨ | 12.58 | 157 | 68 | 64 | 4600 | 100 |
| 6 mm | Left | 940612A | 1/2 | 12.58 | 162 | 80 | 64 | 5400 | 108 |
| 7 mm | Left | 940711A | 7/16¨ | 14.2 | 162 | 68 | 70 | 4600 | 127 |
| 7 mm | Left | 940712A | 1/2¨ | 14.2 | 170 | 80 | 70 | 6100 | 140 |
| 8 mm | Left | 940812A | 1/2¨ | 16.0 | 185 | 80 | 83 | 6100 | 192 |
| 8 mm | Left | 940816A | 5/8¨ | 16.0 | 203 | 100 | 83 | 8700 | 259 |
| 10 mm | Left | 941016A | 5/8¨ | 17.8 | 212 | 100 | 89 | 9700 | 301 |
| 10 mm | Left | 941020A | 3/4¨ | 17.8 | 230 | 120 | 89 | 9700 | 391 |
| 12 mm | Left | 941220A | 3/4¨ | 20.0 | 249 | 120 | 105 | 11400 | 479 |
| Product Code | Blue Wave UNF | Availability | Price | |
|---|---|---|---|---|
|
BLUE WAVE 930812A
|
7 days
|
€28.96 (inc. VAT)
€23.93 (ex. VAT) |
|
|
BLUE WAVE 930306A
|
7 days
|
€7.28 (inc. VAT)
€6.02 (ex. VAT) |
|
|
|
BLUE WAVE 930816A
|
7 days
|
€29.95 (inc. VAT)
€24.75 (ex. VAT) |
|
|
|
BLUE WAVE 931016A
|
7 days
|
€36.95 (inc. VAT)
€30.54 (ex. VAT) |
|
|
|
BLUE WAVE 931020A
|
7 days
|
€48.94 (inc. VAT)
€40.45 (ex. VAT) |
|
|
|
BLUE WAVE 931220A
|
7 days
|
€53.95 (inc. VAT)
€44.59 (ex. VAT) |
|
|
|
BLUE WAVE 940306A
|
7 days
|
€7.79 (inc. VAT)
€6.44 (ex. VAT) |
|
|
|
BLUE WAVE 940406A
|
7 days
|
€8.19 (inc. VAT)
€6.77 (ex. VAT) |
|
|
|
BLUE WAVE 940408A
|
7 days
|
€8.29 (inc. VAT)
€6.85 (ex. VAT) |
|
|
|
BLUE WAVE 940508A
|
7 days
|
€8.99 (inc. VAT)
€7.43 (ex. VAT) |
|
|
|
BLUE WAVE 940510A
|
7 days
|
€9.69 (inc. VAT)
€8.01 (ex. VAT) |
|
|
|
BLUE WAVE 930406A
|
7 days
|
€8.19 (inc. VAT)
€6.77 (ex. VAT) |
|
|
|
BLUE WAVE 940610A
|
7 days
|
€15.95 (inc. VAT)
€13.18 (ex. VAT) |
|
|
|
BLUE WAVE 940611A
|
7 days
|
€16.95 (inc. VAT)
€14.01 (ex. VAT) |
|
|
|
BLUE WAVE 940712A
|
7 days
|
€23.29 (inc. VAT)
€19.25 (ex. VAT) |
|
|
|
BLUE WAVE 940816A
|
7 days
|
€29.95 (inc. VAT)
€24.75 (ex. VAT) |
|
|
|
BLUE WAVE 941016A
|
7 days
|
€36.95 (inc. VAT)
€30.54 (ex. VAT) |
|
|
|
BLUE WAVE 941020A
|
7 days
|
€48.94 (inc. VAT)
€40.45 (ex. VAT) |
|
|
|
BLUE WAVE 941220A
|
7 days
|
€56.95 (inc. VAT)
€47.07 (ex. VAT) |
|
|
|
BLUE WAVE 930408A
|
7 days
|
€8.29 (inc. VAT)
€6.85 (ex. VAT) |
|
|
|
BLUE WAVE 930508A
|
7 days
|
€8.99 (inc. VAT)
€7.43 (ex. VAT) |
|
|
|
BLUE WAVE 930510A
|
7 days
|
€9.69 (inc. VAT)
€8.01 (ex. VAT) |
|
|
|
BLUE WAVE 930610A
|
7 days
|
€15.95 (inc. VAT)
€13.18 (ex. VAT) |
|
|
|
BLUE WAVE 930611A
|
7 days
|
€16.95 (inc. VAT)
€14.01 (ex. VAT) |
|
|
|
BLUE WAVE 930711A
|
7 days
|
€21.95 (inc. VAT)
€18.14 (ex. VAT) |
|
|
|
BLUE WAVE 930712A
|
7 days
|
€23.29 (inc. VAT)
€19.25 (ex. VAT) |
|
|
|
BLUE WAVE 940812A
|
7 days
|
€28.96 (inc. VAT)
€23.93 (ex. VAT) |
Blue Wave UNF:
3 mm - 1/4" Right
