Harken Radial® Self-Tailing Winch

List price:624.20 ex. VAT Price:544.63 ex. VAT
Price: 659.00 (inc. VAT)
You save: €79.57 (13%)
Save 13%
HARKEN 20STCW
Preorder
10 days (approx.)
+
Shipping Costs:

Lightweight, extremely strong with plenty of power. Available with aluminium, chrome black and chrome white models.

Harken Radial winches feature a specific drum surface for each winch size and material ensuring the absolute optimum grip. Diagonal ribs (rather than textured abrasive materials) maximize gripping power and at the same time greatly reduce line abrasion. When easing out a line, the angle of the ribs helps to force the line down, preventing overrides and providing a smooth, controlled release. Aluminium or chrome drums and high-strength composite self-tailing jaws and skirt save weight. Composite roller bearings reduce friction under load and don’t require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.

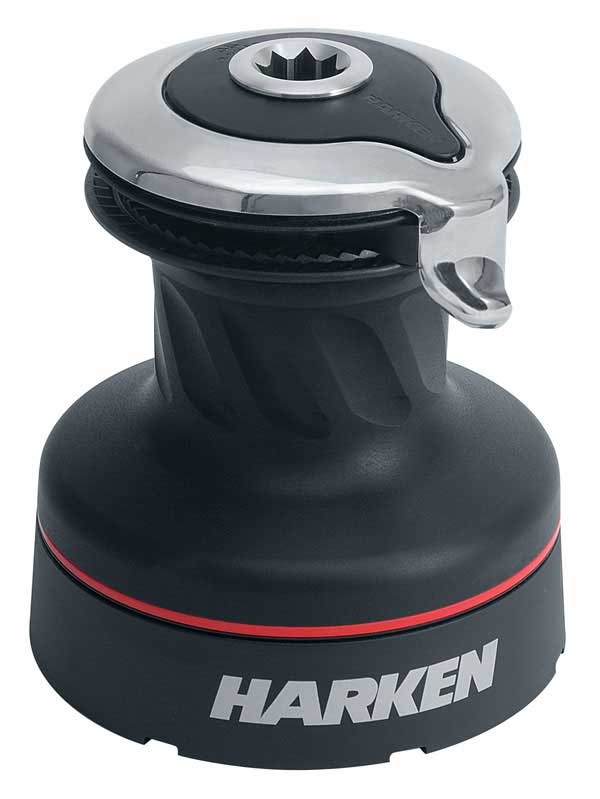

Harken Aluminium Radial® Self-Tailing Winch

Integrated Stripper Arm - The strong, one-piece stripper arm completely covers the winch top for a stable platform that prevents fingers and clothing from catching in moving parts. The arm can be adjusted to multiple positions after the winch is mounted, and is shaped to smoothly feed line into and out of the self-tailing jaws.

Lightweight, High-Strength Materials - Composite roller bearings and bushings reduce friction under load, have excellent corrosion resistance, and don’t require lubrication. Snap-fit design keeps bearings captive in high-strength Delrin® cage when drum is removed for maintenance. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability. Weight savings of 25 to 50 percent compared to other winches

Easy to Service and Maintain - Winches can be disassembled and serviced on deck. The socket, washer, and screw-top snap-fit together to simplify maintenance and for mistake-free assembly.

Power-Grip Jaws - Composite self-tailing jaws of long-glass fibre are shaped for easy line entry and optimum gripping power. The spring-loaded upper jaw adjusts under line pressure to accept a variety of line sizes. Teeth grip evenly with or without load.

Easy and Quick Installation - A patent-pending stud-bolt mounting system allows one person to quickly install a winch without removing the drum, a simple three step process.

Harken Radial Winch Dimensions




Model Drum
D mm
Base
B mm
Height
H mm
Entry
LE mm
Line
mm
Weight
kg
Gear Ratio
Speed 1
Gear Ratio
Speed 2
Power Ratio
Speed 1
Power Ratio
Speed 2
20STA 73 137 148 61 6-12 2.4 2.76:1   19.2:1
20STC 73 137 148 61 6-12 3.4 2.76:1   19.2:1
20STCW 73 137 148 61 6-12 3.4 2.76:1   19.2:1
35.2STA 80 149 170 70 8-12 3.6 2.13:1 5.65:1 13.5:1  35.9:1
35.2STC 80 149 170 70 8-12 4.8 2.13:1 5.65:1 13.5:1  35.9:1
35.2STCW 80 149 170 70 8-12 4.8 2.13:1 5.65:1 13.5:1  35.9:1
40.2STA 80 157 175 82 8-12 3.8 2.13:1 6.28:1 13.5:1 39.9:1
40.2STC 80 157 175 82 8-12 5.4 2.13:1 6.28:1 13.5:1 39.9:1
40.2STCW 80 157 175 82 8-12 5.4 2.13:1 6.28:1 13.5:1 39.9:1
46.2STA 100 184 201 90 8-14 5.2 2.30:1 9.17:1 11.7:1 46.5:1
46.2STC 100 184 201 90 8-14 7.8 2.30:1 9.17:1 11.7:1 46.5:1
46.2STCW 100 184 201 90 8-14 7.8 2.30:1 9.17:1 11.7:1 46.5:1
50.2STA 110 194 212 97 8-14 7.6 4.80:1 14.4:1 20.3:1 61.0:1
50.2STC 110 194 212 97 8-14 9.2 4.80:1 14.4:1 20.3:1 61.0:1
46.2STCW 100 184 201 90 8-14 7.8 2.30:1 9.17:1 11.7:1 46.5:1
60.2STA 120 236 246 116 8-16 10.2 3.2:1 10.5:1 16.2:1 52.0:1
70.2STA 130 240 256 111 10-18 11.3 5.7:1 18.5:1 22.2:1 72.0:1



Sizes 60 & 70 are also available in a three speed model.

  Product Code Harken Radial® Availability Price
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 20STA
20STA
7 days
529.00 (inc. VAT)
437.19 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 35.2STA
35.2STA
7 days
929.00 (inc. VAT)
767.77 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 40.2STA
40.2STA
7 days
969.00 (inc. VAT)
800.83 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 46.2STA
46.2STA
7 days
1,458.00 (inc. VAT)
1,204.96 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 50.2STA
50.2STA
7 days
2,179.00 (inc. VAT)
1,800.83 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 20STC
20STC
7 days
599.00 (inc. VAT)
495.04 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 35.2STC
35.2STC
7 days
988.00 (inc. VAT)
816.53 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 40.2STC
40.2STC
7 days
1,089.00 (inc. VAT)
900.00 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 46.2STC
46.2STC
7 days
1,669.00 (inc. VAT)
1,379.34 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 50.2STC
50.2STC
7 days
2,519.00 (inc. VAT)
2,081.82 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 20STCW
20STCW
10 days
659.00 (inc. VAT)
544.63 (ex. VAT)
Harken Radial® Self-Tailing Winch - bluemarinestore.com
HARKEN 35.2STCW
35.2STCW
10 days
1,089.00 (inc. VAT)
900.00 (ex. VAT)
