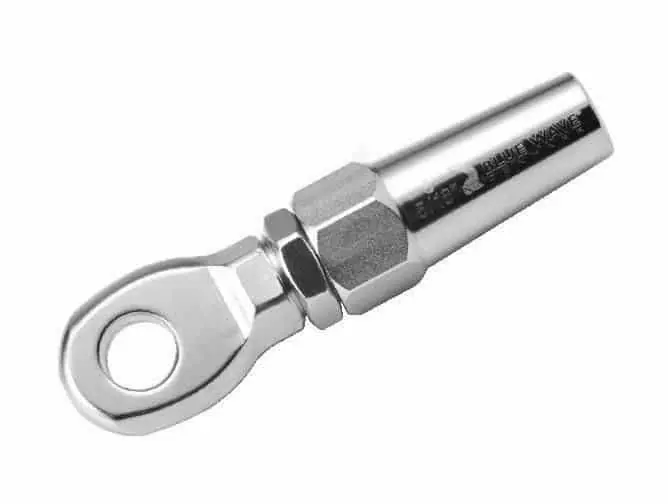

Blue Wave Swageless Eye Terminal
Llyods approved, highly polished stainless steel AISI 316, swageless eye terminal. Does not require unwinding the cable for installation. Suitable for standard 1x19 wire, 7x7 semi flexible wire and 1x19 compact strand. Installed quickly by hand with just tools we normally have on board. In our opinion swageless terminals are not only more reliable than swaged terminals but they can be inspected, re-used and are ideal for emergency repairs even in the most remote locations. Wire Sizes 4mm - 10mm normally in stock.

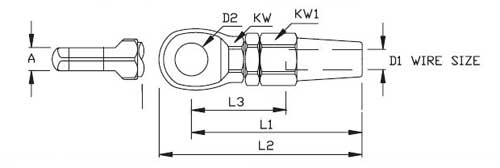

Dimensions in mm
| Wire | ID | A | L1 | L2 | L3 | D1 | D2 | KW | KW1 | Break load | Weight |
| 4mm | 821904 | 7 | 58 | 68 | 31 | 4 | 8.5 | 13 | 14 | 1500 kg |
0.073 kg |
| 5mm | 821905 | 8 | 70 | 81 | 37 | 5 | 10.5 | 14 | 16 | 2180 kg | 0.098 kg |
| 6mm | 821906 | 9 | 83 | 97 | 45 | 6 | 13 | 17 | 19 | 3700 kg | 0.150 kg |
| 7mm | 821907 | 9 | 89 | 105 | 50.5 | 7 | 13.2 | 18 | 22 | 4700 kg | 0.212 kg |
| 8mm | 821908 | 10 | 103 | 121 | 52.5 | 8 | 14.5 | 19 | 24 | 5600 kg |
0.281 kg |
| 10mm | 821910 | 13 | 116 | 135 | 65 | 10 | 16.2 | 24 | 27 | 8300 kg | 0.460 kg |
| 12mm | 821912 | 15 | 137 | 160 | 71.5 | 12 | 19.5 | 27 | 32 | 12000 kg | 0.720 kg |
| Product Code | Wire Size | Availability | Price | |
|---|---|---|---|---|
|
BLUE WAVE 821905
|
In stock
|
€39.95 (inc. VAT)
€33.02 (ex. VAT) |
|
|
|
BLUE WAVE 821906
|
In stock
|
€44.95 (inc. VAT)
€37.15 (ex. VAT) |
|
|
|
BLUE WAVE 821907
|
Discontinued Product
|
€65.95 (inc. VAT)
€54.50 (ex. VAT) |
|
|
|
BLUE WAVE 821910
|
In stock
|
€115.00 (inc. VAT)
€95.04 (ex. VAT) |
