With the Loos & Co. Professional model tension gauges you will be able to measure accurately rig tension for quick and repeatable tuning. Each model covers a range of approximately 5% to 25% of the breaking strength of the wire wth 3% accuracy.
All models are manufactured of anodized aluminum the Loos cable tension gauge is non corrosive and will give years of service. Detailed operating instructions are included with each tension gauge. Standing sailboat rigging can be adjusted while the tension gauge remains on the cable “just watch the pointer move”.
See the Bluewave Smart Pins for a simple way to secure rigging screws (turnbuckles) without using a split pin.
Metric versions for Stainless 302/304 1x19 wire

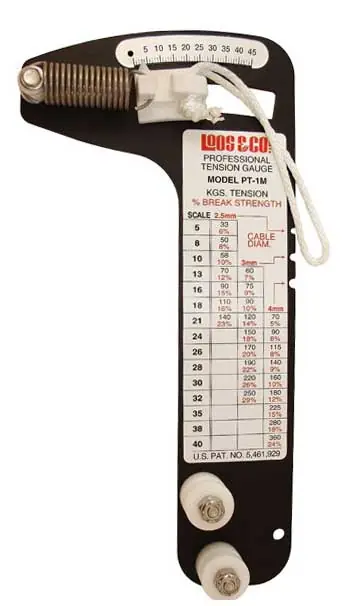

LPT-1M for cables 2.5mm, 3mm, and 4mm
LPT-2M for cables 5mm, 6mm and 7mm
LPT-3M for cables 7mm, 8mm and 10mm
See "Attachments & Downloads" for further instructions and Imperial wire conversion labels
How to use Loos & Co PT Wire Tension Gauge EN (How_to_use_Loos_&_Co_PT_Wire_Tension_Gauge.pdf, 362 Kb) [Download]
Loos PT1 Front Label (Imperial) (PT1_Front_Label.pdf, 388 Kb) [Download]
Loos PT2 Front Label (Imperial) (PT2_Front_Label.pdf, 433 Kb) [Download]
Loos PT3 Front Label (Imperial) (PT3_Front_Label.pdf, 692 Kb) [Download]
