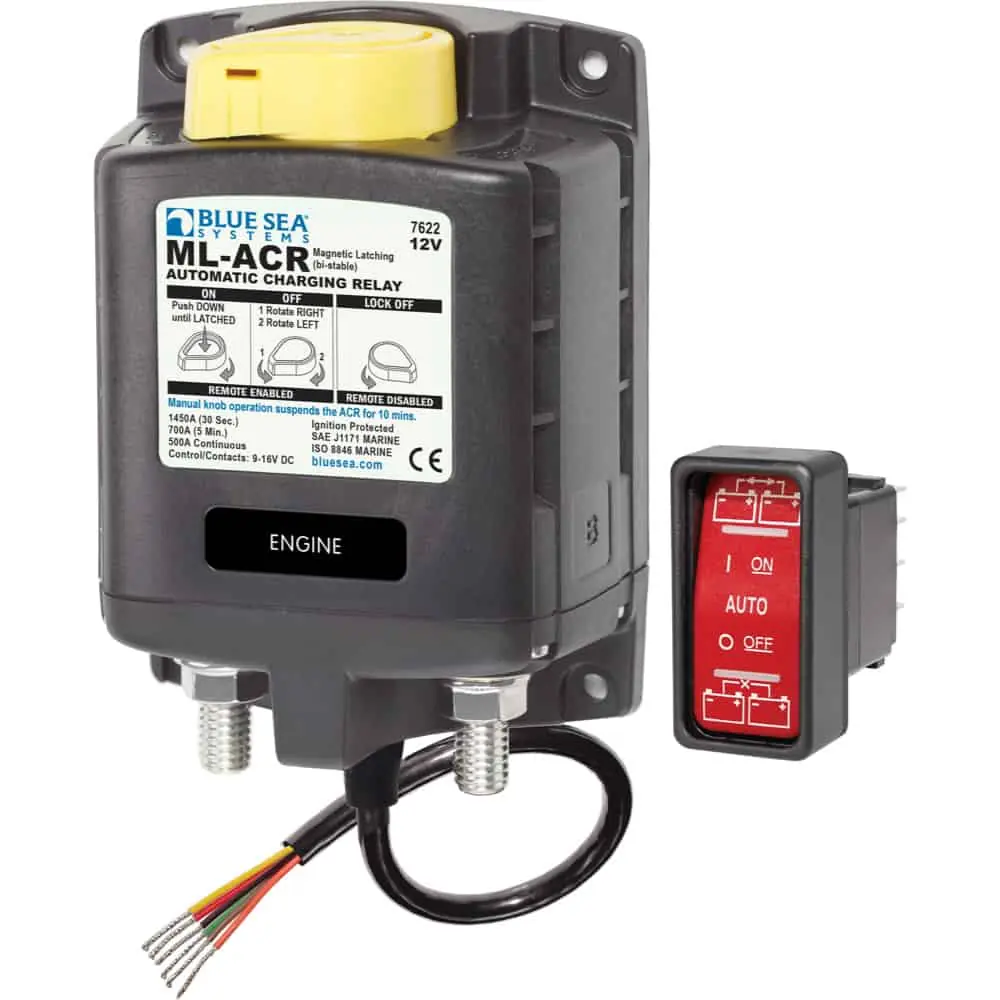

Blue Sea Systems ML-Series Automatic Charge Relay

Price:304.96 ex. VAT
Price: 369.00 (inc. VAT)
BLUE SEA SYSTEMS 7623
Last one in stock
10 days (approx.)
+
Shipping Costs:

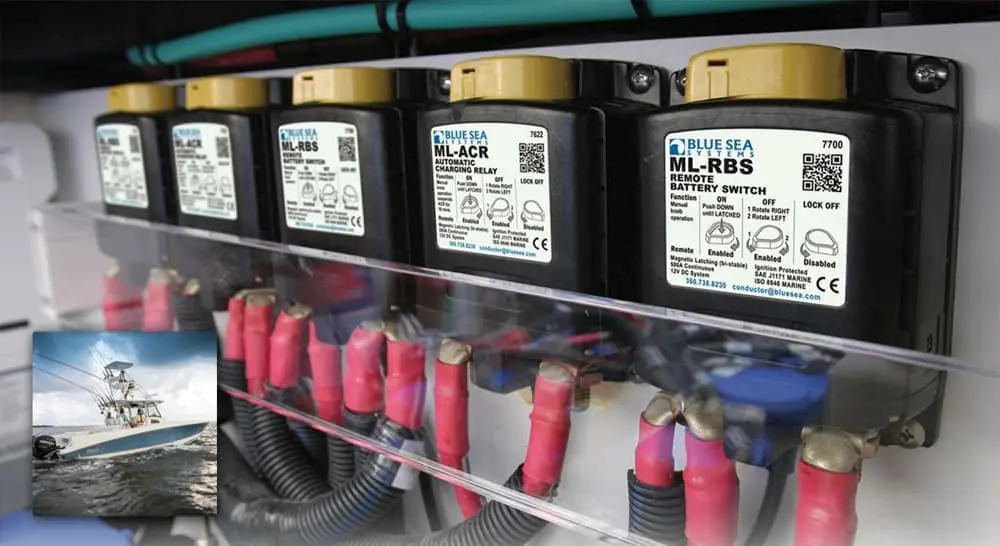

Blue Sea Systems ML-Series (magnetic latching) automatic charge relay with manual backup.

Continuous rated 500 A ACR automatically combines large battery banks during charging and isolates battery banks when discharging and when starting an engine. The Blue Sea Systems ML-Series ACR features a bi-stable magnetic latch which only requires power while switching and draws less than 40 mA to monitor battery voltage on both battery banks. When either battery voltage reaches the threshold, the batteries are combined. The Start Isolation SI feature can be configured for temporary isolation of service loads from the engine circuit during engine cranking to protect sensitive electronics and the Engine Isolation EI feature can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output. The manual backup feature provides redundancy in case of system failure. The included ML-series Remote Control Contura Switch shows system status and can override the automatic control.

Available in 12 V and 24 V versions.


Features:

  • 500 Ampere continuous rated relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine

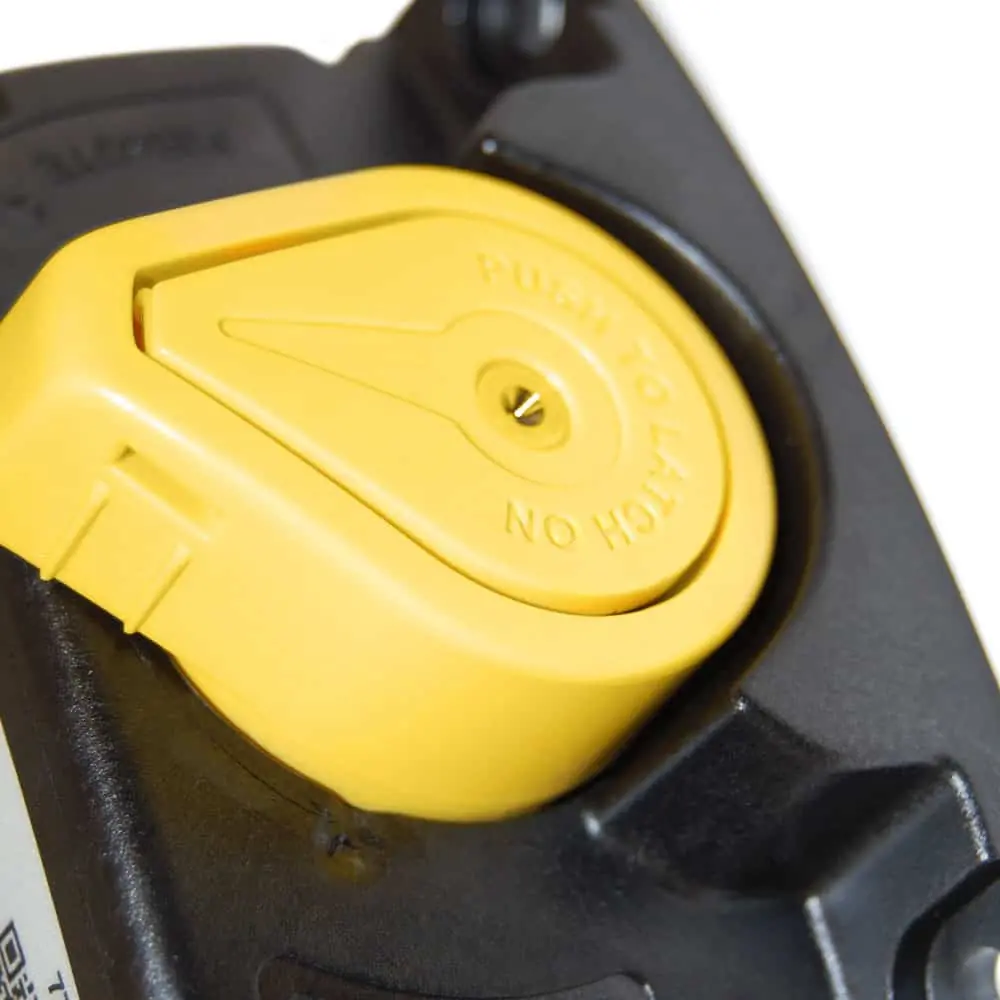

  • Manual override knob provides an added level of safety allowing control with or without power, and offering “LOCKED OFF” capability for servicing
  • Dual sensing senses charge on both battery banks
  • Start Isolation (SI) can be configured for temporary isolation of service loads from the engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI) can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Magnetic latching draws no current in “ON” or “OFF” state, only draws current when changing state of switch
  • Includes ML-Series Remote Control Contura Switch
  • Silver alloy contacts provide high reliability for switching live loads
  • LED output to remotely indicate switch state
  • 3∕8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7∕8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification


Specifications

  • Cranking Rating 30 seconds: 1450 A
  • Intermittent Rating 300 seconds (5 min): 700 A
  • Continuous Rating: 500 A
  • Voltage Maximum Operating Vmxo: 32 Volts DC
  • Switching Cycles Cs: 100,000 Cycles
  • Amperage Operating Current Ioc: 100mA when changing state
  • Live Current Switching:  300A@12V DC—10,000 Cycles
  • Control Circuit Voltage 10.1 to 16.5V (12V models), 20.2 to 32.9V (24V models)
  • Terminal Stud Size: 3∕8"-16 (M10)
  • Terminal Stud Torque: 140 in-lb (15.5 N•m)
  • Ring Terminal Size :3∕8" (M10)
  • Terminal Ring Diameter Clearance:  1.12" (28.4mm)
  • Regulatory Meets ISO 8846 ignition protection, and SAE J1171 external ignition protection requirements
  • IP66—withstands water from heavy seas



Blue Sea Systems ML-Series Remote Battery Switch



  Product Code Voltage Availability Price
Blue Sea Systems ML-Series Automatic Charge Relay - bluemarinestore.com
BLUE SEA SYSTEMS 7622
12 Volt
10 days
389.00 (inc. VAT)
321.49 (ex. VAT)
Blue Sea Systems ML-Series Automatic Charge Relay - bluemarinestore.com
BLUE SEA SYSTEMS 7623
24 Volt
In stock
369.00 (inc. VAT)
304.96 (ex. VAT)
