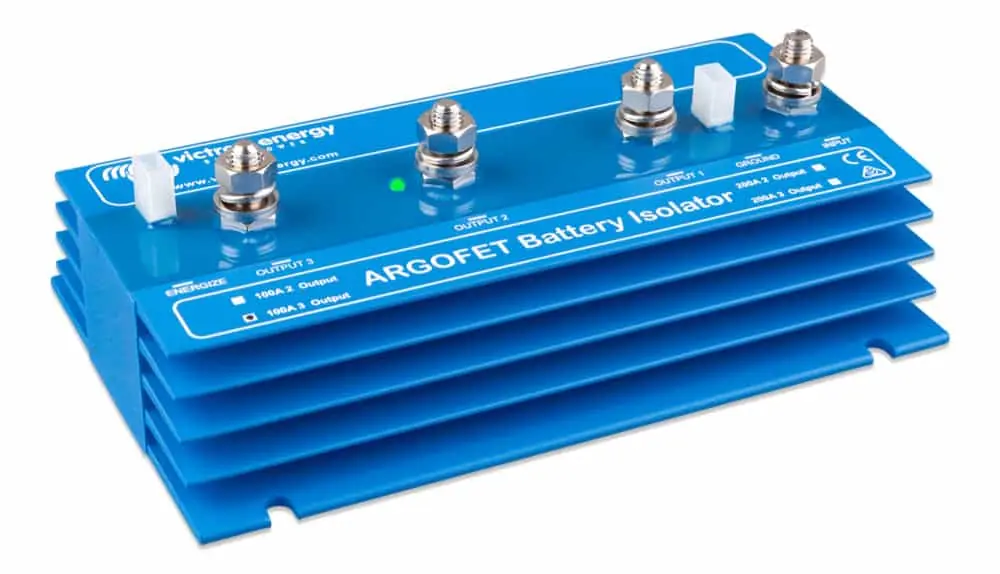

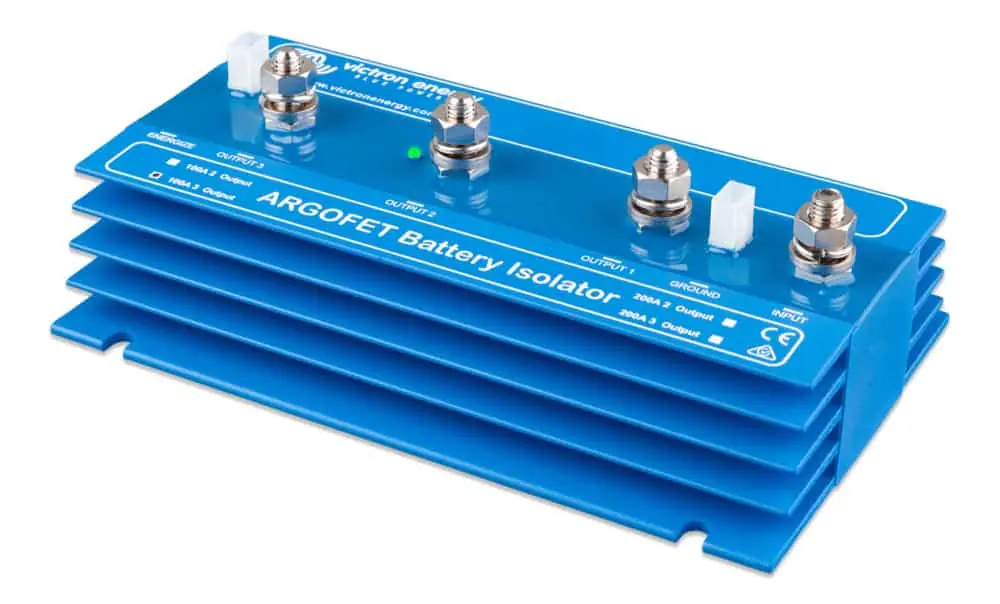

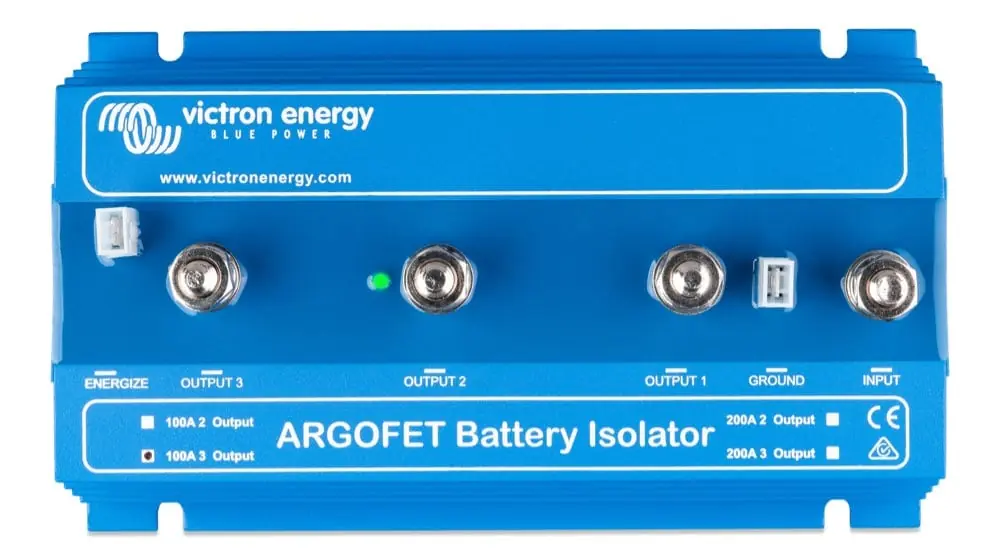

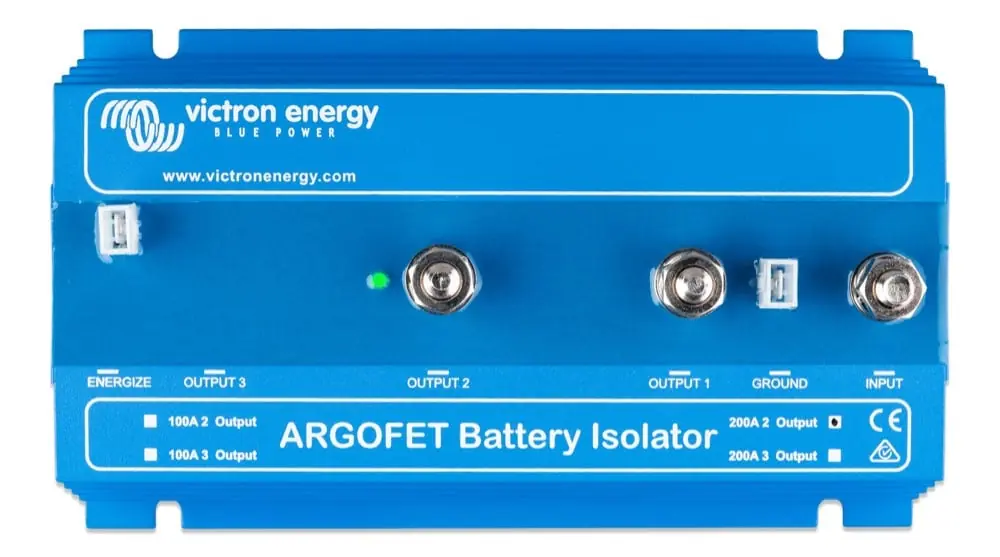

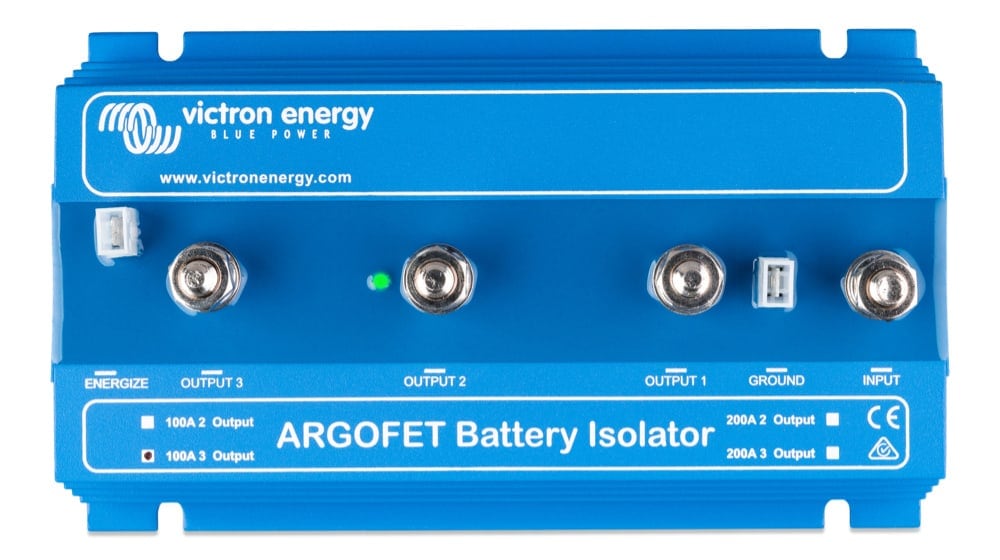

Victron Energy Argo FET Battery Isolator

List price:107.00 ex. VAT Price:85.91 ex. VAT
Price: 103.95 (inc. VAT)
You save: €21.09 (20%)
Save 20%
VICTRON ENERGY ARG100201020
Last one in stock
3 days (approx.)
+
Shipping Costs:

Charge multiple batteries or battery banks from a single alternator or charging source without connecting the batteries or battery banks together, avoiding a complete battery discharge if batteries are connected for charging and not separated when charging has finished.

Unlike standard diode battery isolators. Victron Energy FET Battery Isolators use FET transistors and have virtually no voltage loss. Voltage drop is less than 0.02 V at low current and averages 0.1 V at higher currents rather than a typical 1 V with standard diode battery isolators. With almost no voltage drop, batteries are charged at the full voltage of the alternator allowing quicker and complete charging.

FET Battery Isolators also feature a B+ power output to avoid alternator start problems. Some alternators require DC voltage to start charging. When the alternator is connected directly to the batteries this is not a problem, but when adding a battery isolator the alternator loses this DC power source. Argofet isolators have a special current limited energize input that will power the B+ when the engine run/stop switch is closed.

Victron Energy FET Battery Isolator

Available with 2 or 3 battery outputs and 100 A or 200 A alternator capacities.

Model Ref. Max. Charge Current
A
Max. Alternator Current
A
Batteries Connectors Dimensions
mm
Weight
kg
Argofet 100-2 ARG100201020 100 100 2 M8 65 x 120 x 200 1.4
Argofet 100-3 ARG100301020 100 100 3
Argofet 200-2 ARG200201020 100 100 2
Argofet 200-3 ARG200301020 100 100 3
  Product Code Argo Fet / Diode Availability Price
Victron Energy Argo FET Battery Isolator - bluemarinestore.com
VICTRON ENERGY ARG100201020
Argo FET 100-2
In stock
103.95 (inc. VAT)
85.91 (ex. VAT)
Victron Energy Argo FET Battery Isolator - bluemarinestore.com
VICTRON ENERGY ARG100301020
Argo FET 100-3
In stock
118.96 (inc. VAT)
98.31 (ex. VAT)
Victron Energy Argo FET Battery Isolator - bluemarinestore.com
VICTRON ENERGY ARG200201020
Argo FET 200-2
In stock
123.95 (inc. VAT)
102.44 (ex. VAT)
Victron Energy Argo FET Battery Isolator - bluemarinestore.com
VICTRON ENERGY ARG200301020
Argo FET 200-3
3 days
145.95 (inc. VAT)
120.62 (ex. VAT)

Victron Energy Argo FET Datasheet EN (129 Kb) - Download

Victron Energy Argo FET Manual EN NL FR DE IT ES SE TR (263 Kb) - Download
