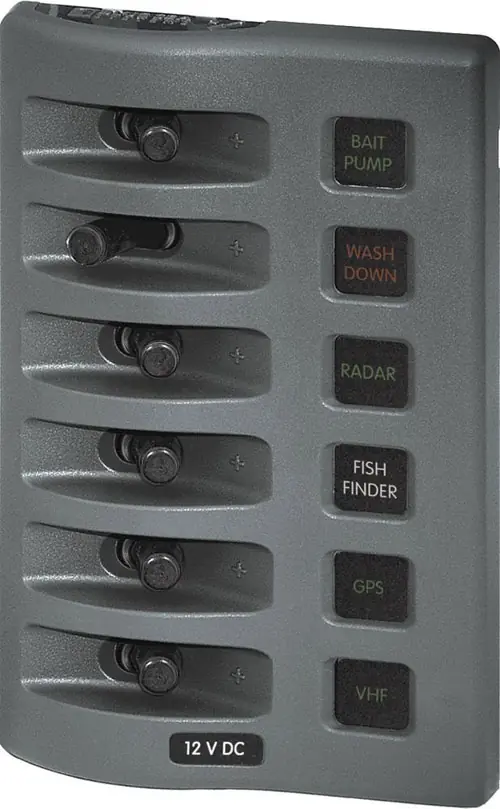

Blue Sea Systems Weatherdeck Waterproof Switch & Fuse Panel

Price:159.46 ex. VAT
Price: 192.95 (inc. VAT)
BLUE SEA SYSTEMS 4306
Last one in stock
7 days (approx.)
+
Shipping Costs:

Innovative waterproof combined switch and fuse panel with bi-coloured LED status light. The Blue Sea Systems Weatherdeck panels are designed for exterior use and are waterproof to IP67 (temporary immersion for 30 minutes). Behind the removable face plate is a gasket sealed fuse block for standard blade fuses, providing all in one switching and circuit protection. Includes 30 Blue Sea Systems square format labels (part nº 4215). Back lighting via a separate circuit for remote switching and dimming. The Weathedeck panels can be mounted in any orientation for 4 different options. Includes Weatherdeck ON - OFF switches which can be replaced with other function Weatherdeck Switches. Includes 15 Amp fuses.

Available in 2 switch, 4 switch, 6 switch and 8 switch versions in dark grey.

Features:

  • Voltage 12 Volts DC
  • Rated IP67 - Temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Integrated ATO/ATC fuse based circuit protection
  • Constructed from corrosion resistant materials
  • Faceplate material UV resistant thermoplastic
  • Rugged UV stabilized waterproof boots
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Switch Type OFF/ON Toggle with waterproof boot
  • Maximum Amperage Per Circuit 15 Amperes
  • Panel Cumulative Rating 60 Amperes
  • Switch Rating 15 Amperes
  • Maximum backlighting amperage draw 10mA
  • Fuse Available 1-40 Amperes
  • Height in" (mm) 4.30 (109.22)
  • Width in" (mm) 3.88 (98.55)
  • Weight Lb ( kg) 0.90 (0.41)
  Product Code Model Availability Price
Blue Sea Systems Weatherdeck Waterproof Switch & Fuse Panel - bluemarinestore.com
BLUE SEA SYSTEMS 4304
4 Switches
In stock
135.96 (inc. VAT)
112.36 (ex. VAT)
Blue Sea Systems Weatherdeck Waterproof Switch & Fuse Panel - bluemarinestore.com
BLUE SEA SYSTEMS 4306
6 Switches
In stock
192.95 (inc. VAT)
159.46 (ex. VAT)
Blue Sea Systems Weatherdeck Waterproof Switch & Fuse Panel - bluemarinestore.com
BLUE SEA SYSTEMS 4308
8 Switches
In stock
270.96 (inc. VAT)
223.93 (ex. VAT)

Blue Sea Systems Weatherdeck Panel Instructions EN ES FR IT (845 Kb) - Download
