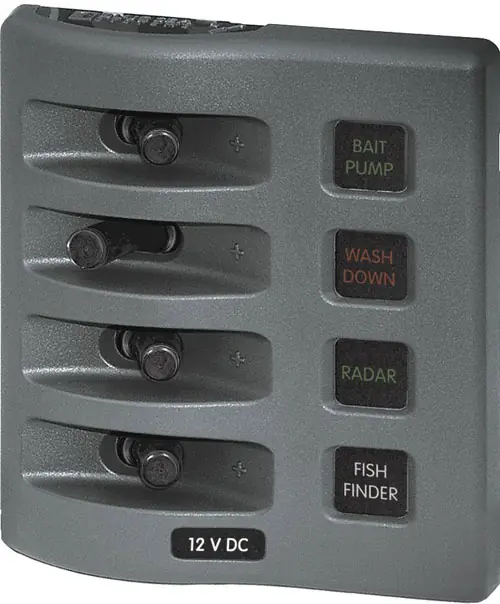

Blue Sea Systems Weatherdeck Waterproof Switch & Fuse Panel

Blue Sea Systems

Price:81.82 ex. VAT

Price: 99.00 (inc. VAT)
BLUE SEA SYSTEMS 43041
In stock
+
Add to wish list
  • Check Shipping Cost

Innovative waterproof combined switch and fuse panel with bi-coloured LED status light. The Blue Sea Systems Weatherdeck panels are designed for exterior use and are waterproof to IP67 (temporary immersion for 30 minutes). Behind the removable face plate is a gasket sealed fuse block for standard blade fuses, providing all in one switching and circuit protection. Includes 30 Blue Sea Systems square format labels (part nº 4215). Back lighting via a separate circuit for remote switching and dimming. The Weathedeck panels can be mounted in any orientation for 4 different options. Includes Weatherdeck ON - OFF switches which can be replaced with other function Weatherdeck Switches. Includes 15 Amp fuses.

Available in 2 switch, 4 switch, 6 switch and 8 switch versions in dark grey.

Features:

  • Voltage 12 Volts DC
  • Rated IP67 - Temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Integrated ATO/ATC fuse based circuit protection
  • Constructed from corrosion resistant materials
  • Faceplate material UV resistant thermoplastic
  • Rugged UV stabilized waterproof boots
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Switch Type OFF/ON Toggle with waterproof boot
  • Maximum Amperage Per Circuit 15 Amperes
  • Panel Cumulative Rating 60 Amperes
  • Switch Rating 15 Amperes
  • Maximum backlighting amperage draw 10mA
  • Fuse Available 1-40 Amperes
  • Height in" (mm) 4.30 (109.22)
  • Width in" (mm) 3.88 (98.55)
  • Weight Lb (Kg) 0.90 (0.41)
ATC BLADE FUSE (3 PACK) 1AMP
1.27 ex. VAT   1.54
Replacement standard automotive type blade fuse suitable for ATO / ATC fuse holders and fuse blocks. Available in 1amp, 2amp, 3amp, 4amp, 5amp, 7amp,...
Sold in Packs of 3 or Cruising Pack
In stock
+
Add to wish list

Blue Sea Systems Weatherdeck Panel Instructions EN ES FR IT (Blue_Sea_Systems_Weatherdeck_Panel_Instructions.pdf, 845 Kb) [Download]
