Blue Sea Systems SafetyHub Fuse Block

Price:164.42 ex. VAT
Price: 198.95 (inc. VAT)
BLUE SEA SYSTEMS 7748
Last one in stock
7 days (approx.)
+
Shipping Costs:

The Blue Sea Systems SafetyHub is an innovative ignition-protected fuse block combining both 30A−200A MIDI®/AMI® fuses for high current loads and 1A−20A  ATO®/ATC® fuses for low current loads. The M8 stud is perfect for connecting high amperage cables making ths SafetyHub a perfect choice for a battery buss. It can be wired directly to the battery (for unswitched fuse protection) or after a battery battery switch (for switched fuse protection).

The SafetyHub is ideal for connections that bypass the boats switch panel and allows multiple connections directly to the battery in a safe and organised all in one solution:

  • The MIDI®/AMI® connections are perfect for high amp loads such as a windless or inverter or can be used to connect solar panels, chargers or wind generators.
  • The ATO®/ATC® connections are ideal for loads that connected permanently such as bilge pumps or gas alarms etc.

SafetyHub 100

  • Ignition protected fusing for safe use on gasoline or diesel powered boats
  • Sealed IP66 rated cover for protection from the marine environment
  • Three 30A−200A MIDI®/AMI® fuses (not included)
  • Four 1A−20A  ATO®/ATC® fuses (not included)
  • Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection
  • Circuit identification label with write-on capability

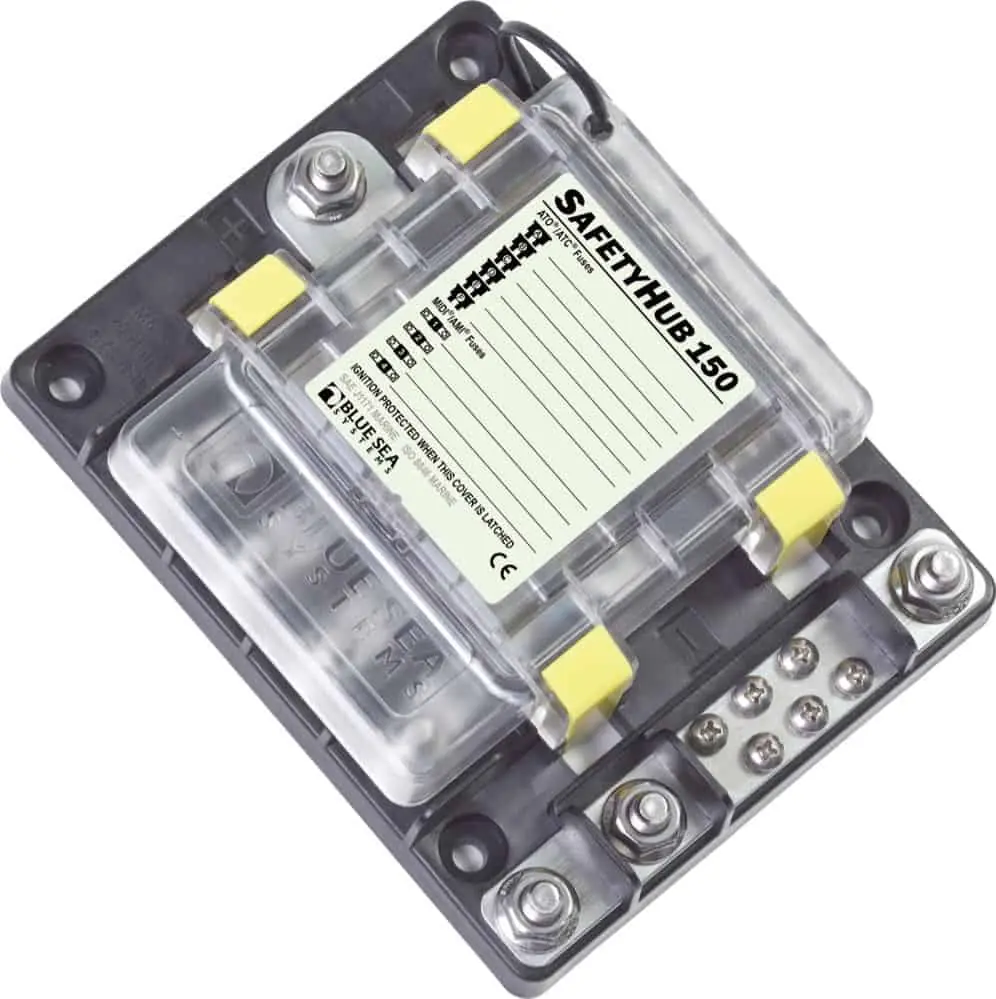

SafetyHub 150

  • Ignition protected fusing for safe use on gasoline or diesel powered boats
  • Sealed IP66 rated cover for protection from the marine environment
  • Four 30A−200A MIDI®/AMI® fuses (not included)
  • Six 1A−20A  ATO®/ATC® fuses (not included)
  • Negative bus provides common location for negative connection
  • Circuit identification label with write-on capability
  • Fuse puller easily removes ATO® or ATC® Fuses
  • Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
  • One-piece stainless flange nuts ensure safe and secure connections



Blue Sea Systems SafetyHub
  Product Code SafetyHub Model Availability Price
Blue Sea Systems SafetyHub Fuse Block - bluemarinestore.com
BLUE SEA SYSTEMS 7725
SafetyHub 100
In stock
157.95 (inc. VAT)
130.54 (ex. VAT)
Blue Sea Systems SafetyHub Fuse Block - bluemarinestore.com
BLUE SEA SYSTEMS 7748
SafetyHub 150
In stock
198.95 (inc. VAT)
164.42 (ex. VAT)
ATC BLADE FUSE CRUISING PACK
7.84 ex. VAT   9.49
Replacement standard automotive type blade fuses suitable for ATO / ATC fuse holders and fuse blocks. Sold in a cruising pack with 3 of each version,...
In stock
+

Blue Sea Systems SafetyHub 100 Manual EN (572 Kb) - Download
