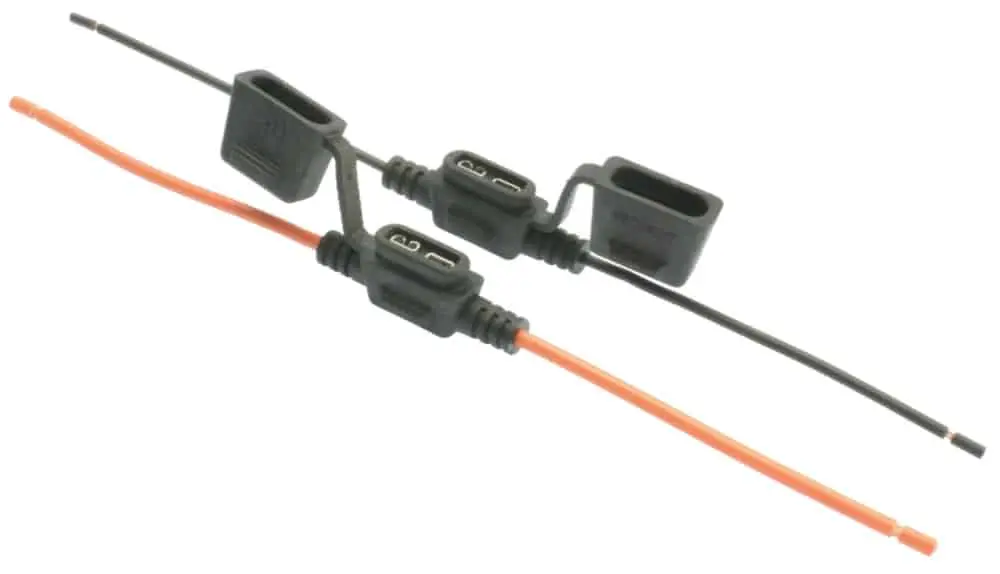

Splashproof ATO / ATC Standard Blade Fuse Holder

Price:3.55 ex. VAT
Price: 4.30 (inc. VAT)
LITTLEFUSE FHAC0001ZXJG
114 in stock
7 days (approx.)
+
Shipping Costs:

FHAC Series In-line ATO Fuse Holders designed for versatile application in humid environments typical on board. Use with ATO® Fuse 1 to 20 amps (standard duty) or 25-30A (heavy duty).


Ideal for multiple applications on board:

  • LED lighting
  • Electronics
  • Pumps and blowers (heavy duty version)


 Features:

  • Includes two 8.5 cm GXL wire leads for easy in-line installation
  • Attached cover secures and protects the fuse from splashes and dust
  • Black TPV (Thermoplastic Vulcanizate) UL 94 V-0 body for heat and flame resistance
  • Max Voltage: 32V DC
  • Operating Temp: -40° C to + 105° C


 Available in 20 amp version with 1.3mm black wire and 30 amp version with 3.3mm orange wire.

Model Ref. Max. Fuse Wire Size
Black FHAC0001ZXJG 20 A 16 AWG (1.3 mm²)
Orange FHAC0003ZXJB 25 A 14 AWG (3.3 mm²)
  Product Code Model Availability Price
Splashproof ATO / ATC Standard Blade Fuse Holder - bluemarinestore.com
LITTLEFUSE FHAC0001ZXJG
Black - 20 A
In stock
4.30 (inc. VAT)
3.55 (ex. VAT)
Splashproof ATO / ATC Standard Blade Fuse Holder - bluemarinestore.com
LITTLEFUSE FHAC0003ZXJB
Orange - 25 A
In stock
4.79 (inc. VAT)
3.96 (ex. VAT)

FHAC Series In-line ATO Fuse Holders designed for versatile application in humid environments typical on board. Use with ATO® Fuse 1 to 20 amps (standard duty) or 25-30A (heavy duty).


Ideal for multiple applications on board:

  • LED lighting
  • Electronics
  • Pumps and blowers (heavy duty version)


 Features:

  • Includes two 8.5 cm GXL wire leads for easy in-line installation
  • Attached cover secures and protects the fuse from splashes and dust
  • Black TPV (Thermoplastic Vulcanizate) UL 94 V-0 body for heat and flame resistance
  • Max Voltage: 32V DC
  • Operating Temp: -40° C to + 105° C


 Available in 20 amp version with 1.3mm black wire and 30 amp version with 3.3mm orange wire.

Model Ref. Max. Fuse Wire Size
Black FHAC0001ZXJG 20 A 16 AWG (1.3 mm²)
Orange FHAC0003ZXJB 25 A 14 AWG (3.3 mm²)
  Product Code Model Availability Price
Splashproof ATO / ATC Standard Blade Fuse Holder - bluemarinestore.com
LITTLEFUSE FHAC0001ZXJG
Black - 20 A
In stock
4.30 (inc. VAT)
3.55 (ex. VAT)
Splashproof ATO / ATC Standard Blade Fuse Holder - bluemarinestore.com
LITTLEFUSE FHAC0003ZXJB
Orange - 25 A
In stock
4.79 (inc. VAT)
3.96 (ex. VAT)
