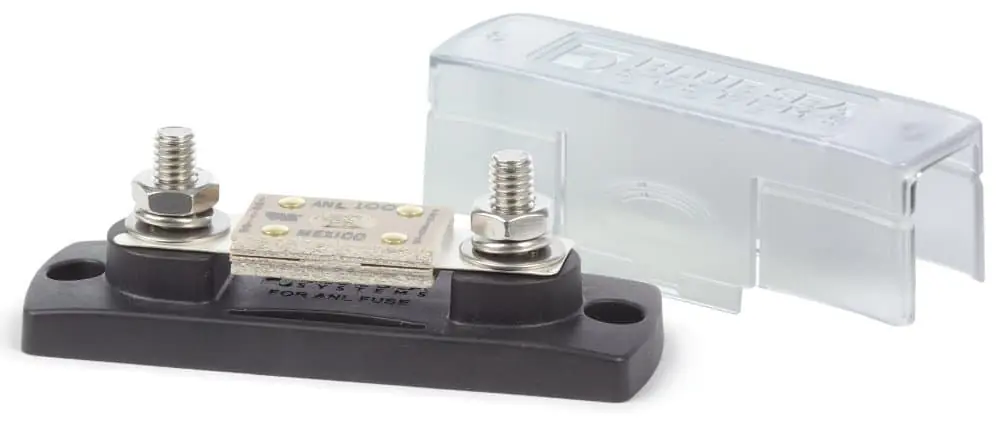

ANL type fuse holder for medium to high amp circuits with a tin plated copper body and heavy duty M8 stainless steel stud terminals for excellent corrosion resistance and high torque. ABYC/USCG approved transparent inspection cover with snap out sides for optimum cable alignment. The Blue Sea Systems ANL fuse blocks accept not only ANL type fuses but also ANN, CNL and CNN type fuses. ANL fuses are available form 30 amps to 750 amps, ideal for battery bank fuses (battery fuses should NOT be installed in the battery compartment), bow thrusters, windlasses and electric winches.

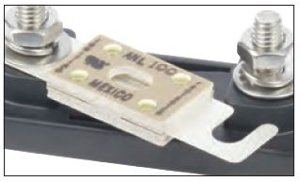

ANL fuses feature a swing out design allowing quick replacement without removing cables.

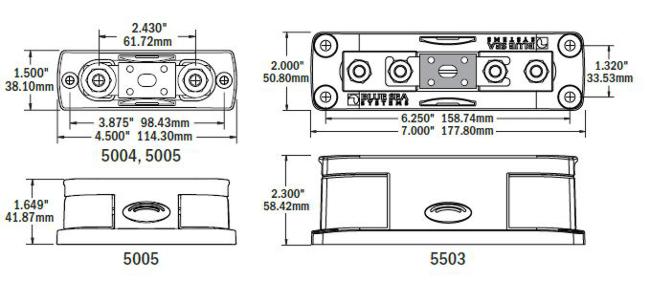

Availabe in two versions.
|Vmxo Voltage Max||32V DC||32V DC|
|Terminal Stud Size||5 ∕ 16"-18 (M8)||5 ∕ 16"-18 (M8)|
|Max. Cable Size||Up to 2/0 AWG (70mm2)||Up to 4/0 AWG (120mm2)|
|Block Material||Tin-Plated Copper||Tin-Plated Copper|
|ANL Fuse Types||35–300 Amps||35–750 Amps|
|Base Material||Reinforced Polycarbonate||Reinforced Polycarbonate|
|Maximum Torque||110 in-lb (12.43 Nm)||110 in-lb (12.43 Nm)|
