Blue Sea Systems ML-Series Remote Battery Switch RBS

Price:270.21 ex. VAT
Price: 326.95 (inc. VAT)
BLUE SEA SYSTEMS 7702
Last one in stock
10 days (approx.)
+
Shipping Costs:

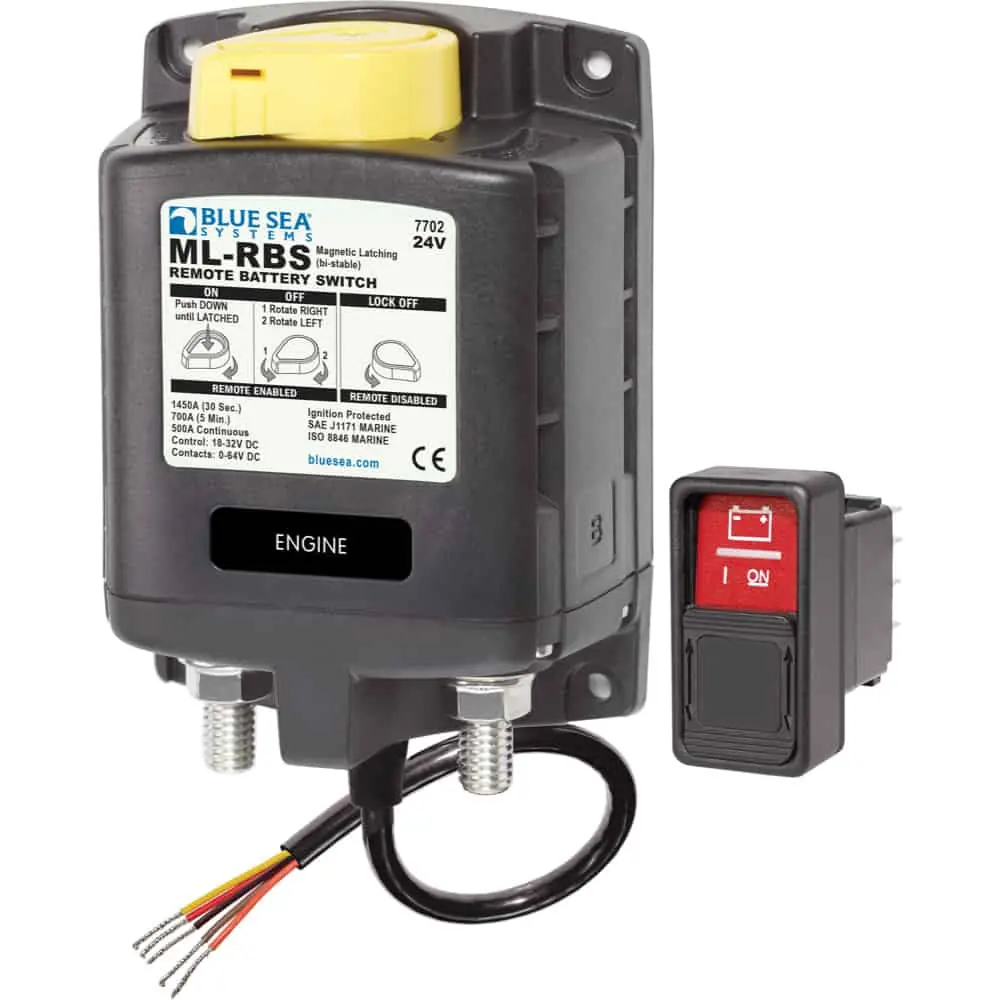

Blue Sea Systems ML-Series (magnetic latching) heavy duty remote battery switch with manual backup.

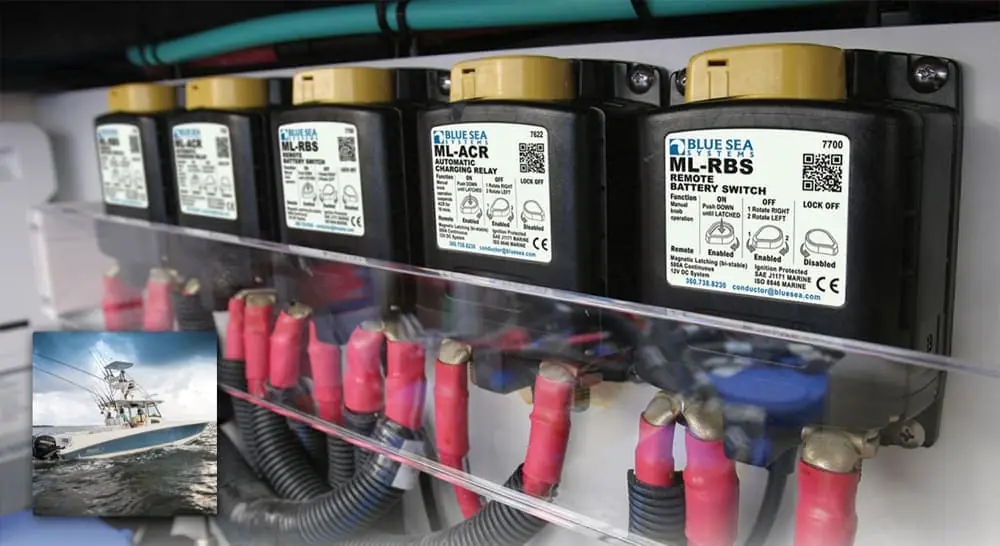

Battey switches should be installed as close to the batteries as possible but this often makes access difficult. A remote battery switch can be installed just outside the battery compartment and can be controlled from a convenient location. The Blue Sea Systems ML-series remote battery switch allows high-amp switching under load, the magnetic latch design only requires power while switching and therefore uses no power when in the open or closed position. The manual backup feature provides redundancy in case of a switch or control cable failure. Ideal for engine and service batteries, bow thruster batteries or other high amp services such as winches and windlasses. Includes ML-series Remote Control Contura Switch or alternatively can be controlled by an (ON)-OFF-(ON) standard toggle switch. An LED output can show the state of the switch.

Available in 12 V and 24 V versions.


Features:

  • 500 Ampere continuous rating—remote battery switch for engine, inverter, house loads, and emergency battery combine

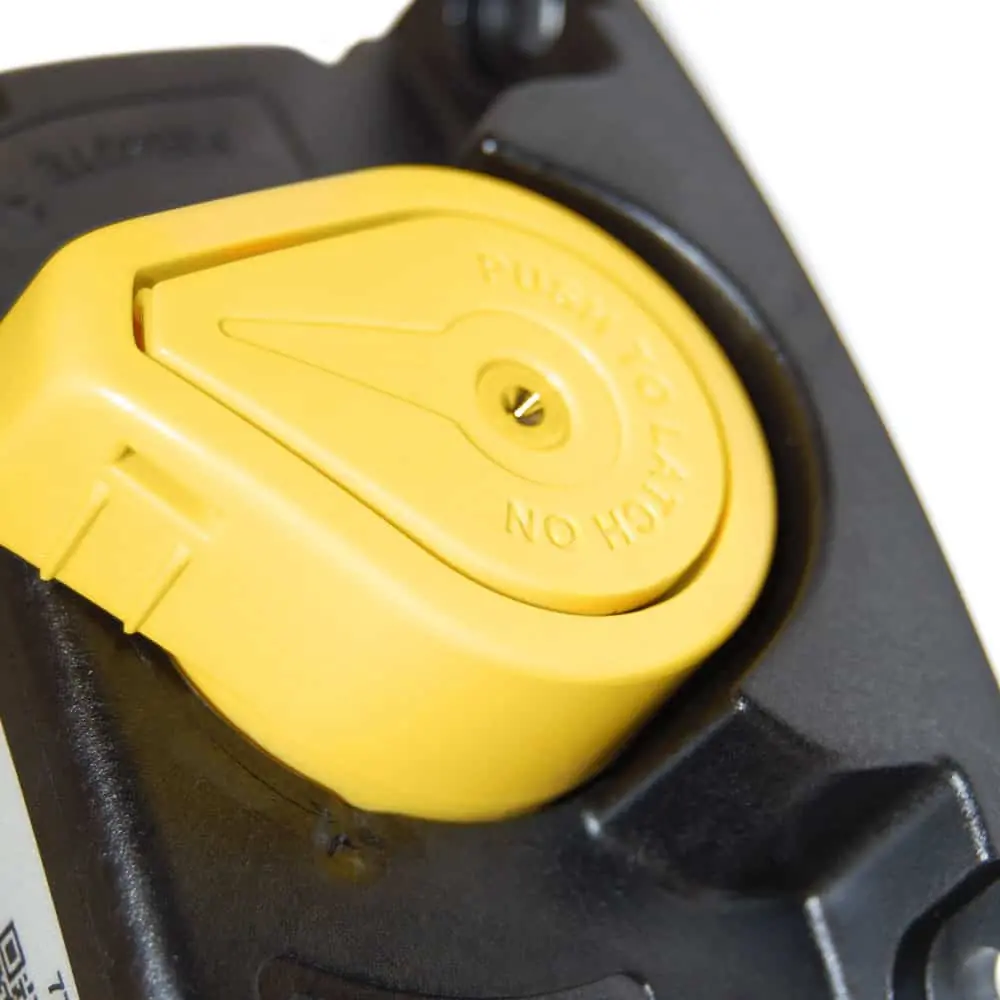

  • Manual override knob provides an added level of safety allowing control with or without power, and offering “LOCKED OFF” capability for servicing
  • Magnetic latching draws no current in “ON” or “OFF” state, only draws current when changing state of switch
  • Retail packaging includes ML-Series Remote Control Contura Switch
  • Silver alloy contacts provide high reliability for switching live loads
  • LED output to remotely indicate switch state
  • 3∕8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7∕8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification


Specifications

  • Cranking Rating 30 seconds: 1450 A
  • Intermittent Rating 300 seconds (5 min): 700 A
  • Continuous Rating: 500 A
  • Voltage Maximum Operating Vmxo: 32 Volts DC
  • Switching Cycles Cs: 100,000 Cycles
  • Amperage Operating Current Ioc: 100mA when changing state
  • Live Current Switching:  300A@12V DC—10,000 Cycles
  • Control Circuit Voltage 10.1 to 16.5V (12V models), 20.2 to 32.9V (24V models)
  • Terminal Stud Size: 3∕8"-16 (M10)
  • Terminal Stud Torque: 140 in-lb (15.5 N•m)
  • Ring Terminal Size :3∕8" (M10)
  • Terminal Ring Diameter Clearance:  1.12" (28.4mm)
  • Regulatory Meets ISO 8846 ignition protection, and SAE J1171 external ignition protection requirements
  • IP66—withstands water from heavy seas



Blue Sea Systems ML-Series Remote Battery Switch



  Product Code Voltage Availability Price
Blue Sea Systems ML-Series Remote Battery Switch RBS - bluemarinestore.com
BLUE SEA SYSTEMS 7700
12 Volt
In stock
344.95 (inc. VAT)
285.08 (ex. VAT)
Blue Sea Systems ML-Series Remote Battery Switch RBS - bluemarinestore.com
BLUE SEA SYSTEMS 7702
24 Volt
In stock
326.95 (inc. VAT)
270.21 (ex. VAT)

Blue Sea Systems ML-Series Remote Battery Switch Manual EN (451 Kb) - Download
