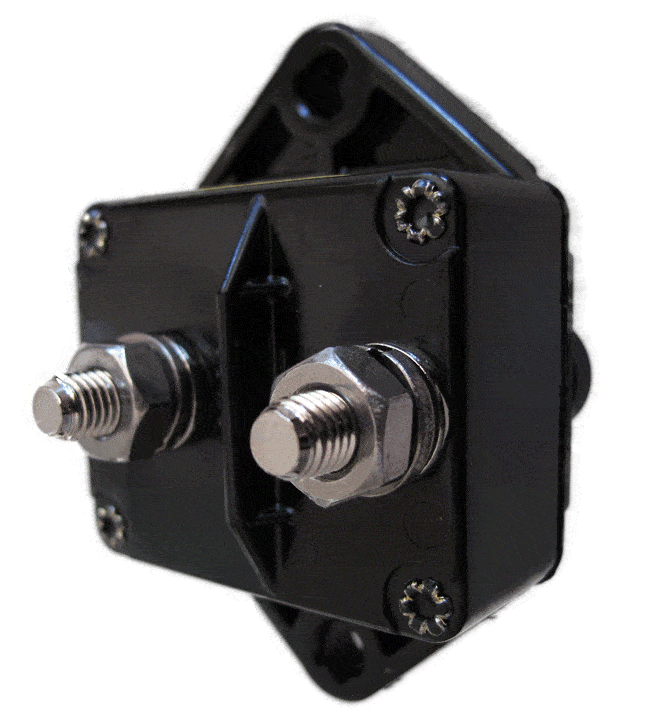

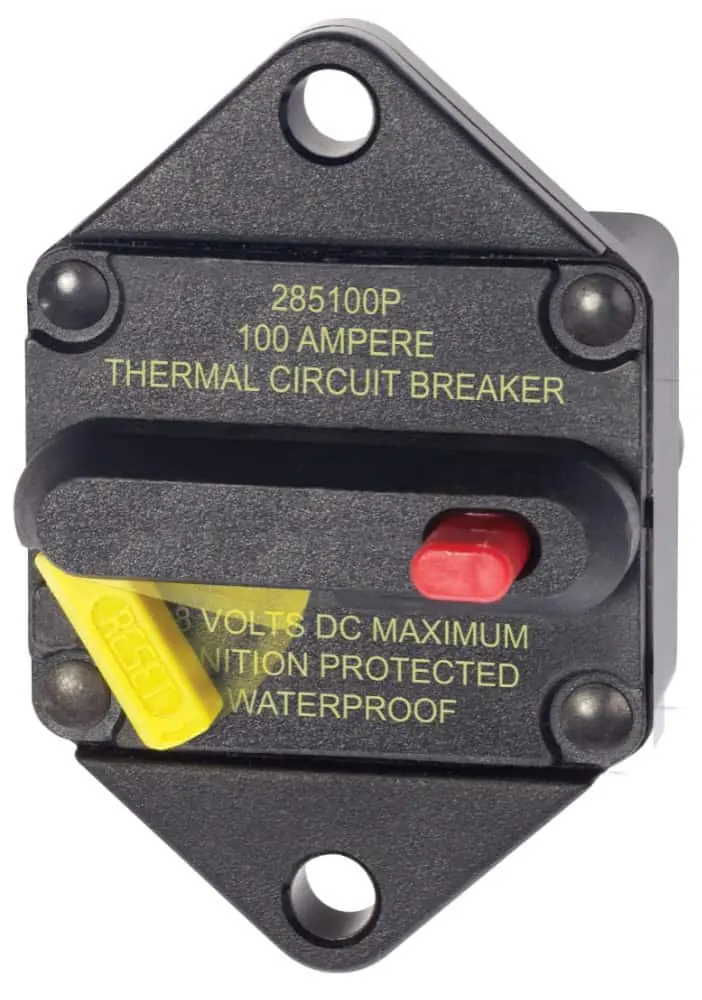

Blue Sea Systems 285-Series Panel Mount Circuit Breaker

Price:70.21 ex. VAT
Price: 84.95 (inc. VAT)
BLUE SEA SYSTEMS 7087
2 in stock
7 days (approx.)
+
Shipping Costs:

Medium duty thermal circuit protection for 25 to 150 Amps. The 285-Series are a drop in replacement for the 185-series with the exact same dimensions for easy replacement. Trip Free - designed to trip even if the reset lever is held in the on position. Self trimming case with recessed holes for a simple and clean installation. Large clearance around the terminal studs for large gauge wire lugs.

  • Drop in replacement for the 185-Series
  • Ignition protected - (meets SAE J1171 external ignition protection requirements) Safe for installation aboard gasoline powered boats
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit
  • "Trip Free" - cannot be held closed after trip


Specifications:

285 - Series Thermal Circuit Breaker

Interrupting Capacity Iic

3000 Amps @ 48 volts DC

Maximum Operating Voltage Vmxo 48 Volts DC
Minimum Operating Temperature Tmno -40°C
Maximum Operating Temperature Tmxo +85°C
Type Thermally Responsive Bi-metal
Class Type III Switchable/Manual Reset - Trip Free
Terminal Stud 1/4" - 28
Terminal Stud Torque 50 in-lb (5.65Nm)
Mounting Hole 1/4" M6
Weight 0.50lb / 0.23kg


bluesea systems bussman 185 panel mount

  Product Code Model Availability Price
Blue Sea Systems 285-Series Panel Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7080
7080 - 25A
In stock
68.95 (inc. VAT)
56.98 (ex. VAT)
Blue Sea Systems 285-Series Panel Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7081
7081 - 30A
In stock
72.95 (inc. VAT)
60.29 (ex. VAT)
Blue Sea Systems 285-Series Panel Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7082
7082 - 40A
In stock
58.95 (inc. VAT)
48.72 (ex. VAT)
Blue Sea Systems 285-Series Panel Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7083
7083 - 50A
In stock
81.95 (inc. VAT)
67.73 (ex. VAT)
Blue Sea Systems 285-Series Panel Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7086
7086 - 80A
In stock
72.95 (inc. VAT)
60.29 (ex. VAT)
Blue Sea Systems 285-Series Panel Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7087
7087 - 100A
In stock
84.95 (inc. VAT)
70.21 (ex. VAT)
Blue Sea Systems 285-Series Panel Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7088
7088 - 120A
7 days
72.95 (inc. VAT)
60.29 (ex. VAT)
Blue Sea Systems 285-Series Panel Mount Circuit Breaker - bluemarinestore.com
BLUE SEA SYSTEMS 7089
7089 - 150A
In stock
84.95 (inc. VAT)
70.21 (ex. VAT)
BLUE SEA SYSTEMS 7098
6.36 ex. VAT   7.70
Bezel mounting adapter for use with the 285 Series or 185 Series panel mount circuit breakers. The mounting adapter allows the circuit breaker to be...
7 days
+

BLUE SEA SYSTEMS 7198
7.43 ex. VAT   8.99
Self trimming moulded rubber bezel for use with the 285-Series or 185-Series panel mount circuit breakers. The rubber bezel covers rough edges of the...
7 days
+
