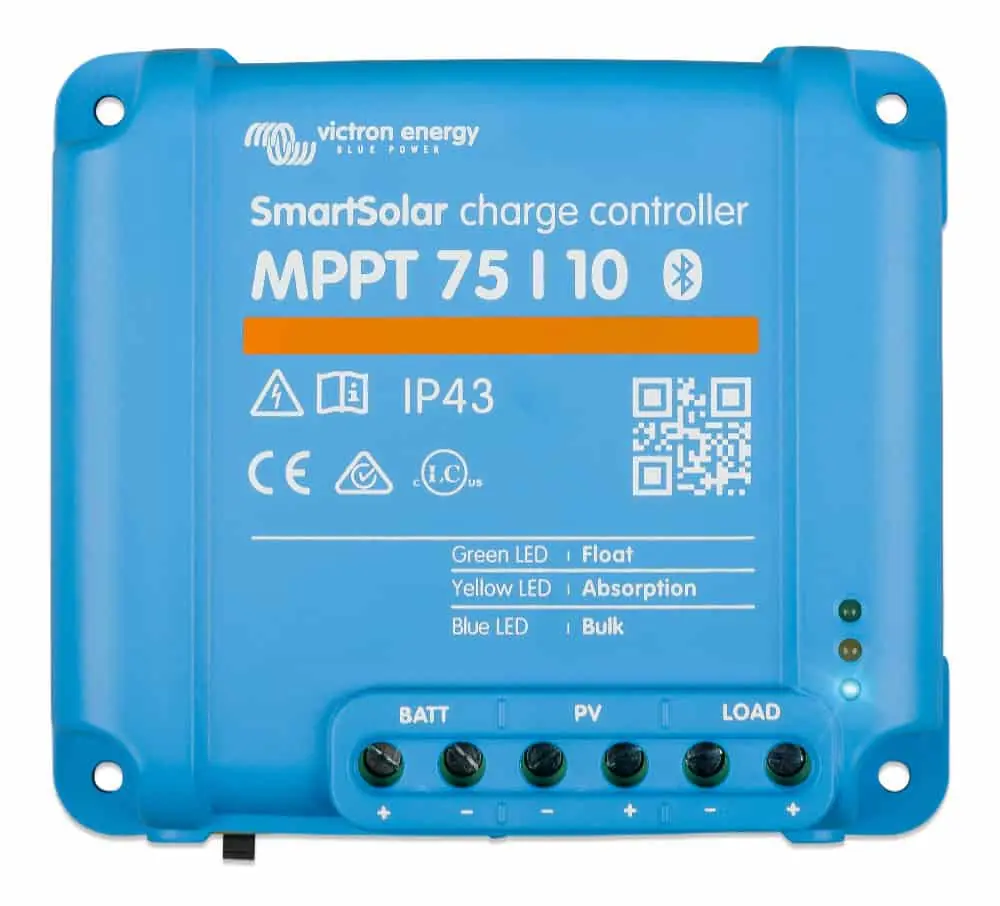

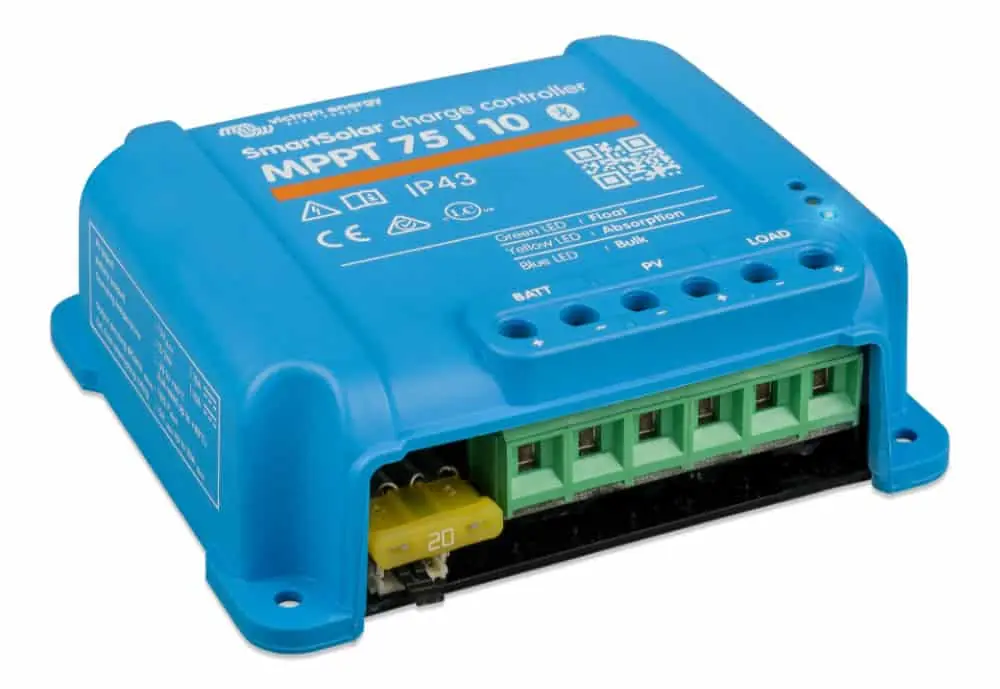

Victron Energy SmartSolar MPPT 75 Series Solar Regulators

List price:66.00 ex. VAT Price:52.85 ex. VAT
Price: 63.95 (inc. VAT)
You save: €13.15 (20%)
Save 20%
VICTRON ENERGY SCC075010060
3 in stock
3 days (approx.)
+
Shipping Costs:

Competitively priced MPPT solar regulator with up to 15A output for 12V / 24V Installations

Bluetooth Smart built-in - allows wireless set-up, monitoring and control as well as compatibility with Bluetooth sensing devices such as the Smart Battery Sense.

Ultra-fast Maximum Power Point Tracking (MPPT) - produces up to 30% more power compared to a PWM controller and up to 10% more power compared to slower MPPT controllers especially during cloudy days and fast changing conditions, when light intensity is changing continuously.

Intelligent Battery Management - When a solar charge controller is not able to recharge the battery to its full capacity, the result is often that the battery will be cycled between a partially charged state and the discharged state. This mode of operation (no regular full recharge) is detrimental to lead acid batteries and over time can cause damage. The BatteryLife algorithm helps to solve this problem when used with a load connected through the controller. It will monitor the state of charge of the battery and day by day slightly increase the load disconnect level until absorption voltage is reached. From that point onwards the load disconnect level will be modulated so that absorption voltage is reached about once every week. The MPPT 70/15 can also be set to follow the traditional load control mode with a fixed disconnect voltage The load output is short circuit proof and can supply capacitive loads such as an inverter.

Optional Bluetooth battery voltage and temperature sensing - the Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.

VE.Direct cable compatible - For a wired data connection to a MPPT control panel, a Color Control GX, other GX products, PC or other devices.

Real-time data display options with Victron Connect - setup, configure and monitor all system parameters on Apple and Android smartphones, tablets, PC & MAC with the free Apps and software. See the Victron Energy website for details. https://www.victronenergy.com/panel-systems-remote-monitoring/victronconnect

 Features:

SmartSolar 75/10 SmartSolar 75/15
Automatically adjusts to a 12V or a 24V system
Resin encapsulated electronics
Ultra-fast Maximum Power Point Tracking (MPPT)
BatteryLife: intelligent battery management
Maximum battery current - 10A Maximum battery current - 15A
Maximum PV power 12V - 145 watts Maximum PV power 12V - 220 watts
Maximum PV power 24V - 290 watts Maximum PV power 24V -  440 watts
Automatic load disconnect - maximum load 15 A
Battery reverse polarity protection (fuse)
Power terminals 6 mm² / AWG10
Waterproof to IP65 (electronic components)
Weight 0.5 kg
Dimensions (h x w x d) 100 x 113 x 40 mm

  Product Code SmartSolar 75 Availability Price
Victron Energy SmartSolar MPPT 75 Series Solar Regulators - bluemarinestore.com
VICTRON ENERGY SCC075010060
SmartSolar 75/10
In stock
63.95 (inc. VAT)
52.85 (ex. VAT)
Victron Energy SmartSolar MPPT 75 Series Solar Regulators - bluemarinestore.com
VICTRON ENERGY SCC075015060
SmartSolar 75/15
In stock
69.95 (inc. VAT)
57.81 (ex. VAT)
VICTRON ENERGY ASS030530203
12.06 ex. VAT   14.59
The VE.Direct cable connects compatible MPPT solar regulators to the Victron Energy MPPT control panel. Available in different lengths with both straight...
In stock


VICTRON ENERGY SCC900500000
48.76 ex. VAT   59.00
Quickly setup Victron Energy MPPT solar regulators and display solar system information. The Victron Energy MPPT Control shares the same design as the...
In stock
+

VICTRON ENERGY ASS030536011
33.79 ex. VAT   40.89
Instantly update compatible non Bluetooth Victron Energy products to Bluetooth connectivity. Simply plug in the dongle to the compatible equipment. Install...
In stock
+

Victron Energy SmartSolar MPPT 75/10 & 75/15 Datasheet EN (265 Kb) - Download

Victron Energy SmartSolar MPPT 75/10 & 75/15 Datasheet ES (228 Kb) - Download

Victron Energy SmartSolar MPPT 75/10 & 75/15 Manual EN NL FR DE ES SE (1,442 Kb) - Download
