Available in three models:
SB - Standard Bails - Provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
LB - Large Bails - Provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
CB - Clevis Bails - Do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
|Model||A||B||C||D||E||Thickness||Weight||Work Load||Break Load|

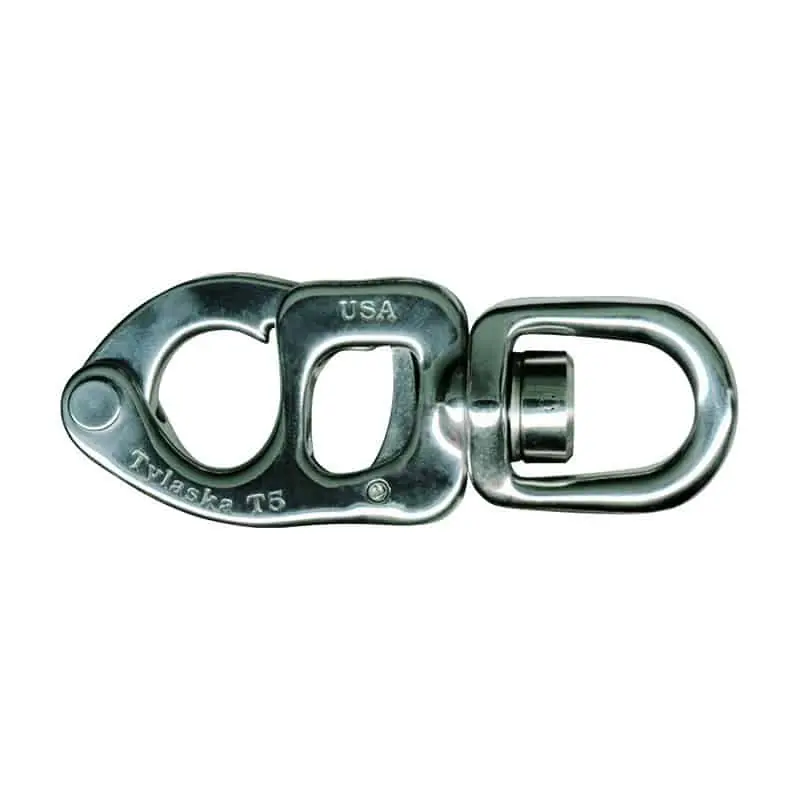

|T5 SB||14.2mm||14.2mm||13.5mm||14.2mm||74.6mm||7.9mm||59gm||1136 kg||2273 kg|
|T5 LB||14.2mm||14.2mm||20.6mm||22.2mm||84.1mm||7.9mm||74gm||1136 kg||2273 kg|
|T5 CB||14.2mm||14.2mm||15.1mm||12.7mm||82.6mm||7.9mm||79gm||1136 kg||2273 kg|
