The FOX-D1 Digital display is a simple and attractive digital ammeter and voltmeter ideal for monitoring battery condition as well as amps in and out during charge and discharge. This unit is perfect for tracking charging current from solar panels or wind generators up to 20 amps. The Fox-D1 uses minimal power and can therefore be left in use continuously. A switch below the display is used to select either voltage or current which can be indicated as either negative or positive. A current flow indication without sign is considered positive and is flowing into the battery. When a negative sign (-) is indicated, the current flow is flowing from the battery in the direction of the user-consumer.
- Suitable for both 12v and 24v systems
- Operating voltage: 8 -50 volts
- Max operating current: 20 amps
- Dimensions (WHD): 115x78x35mm
- Dist. between holes: 92mm

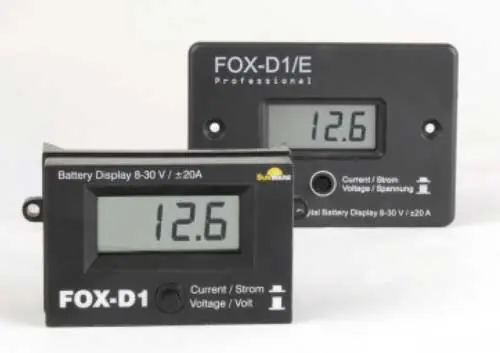

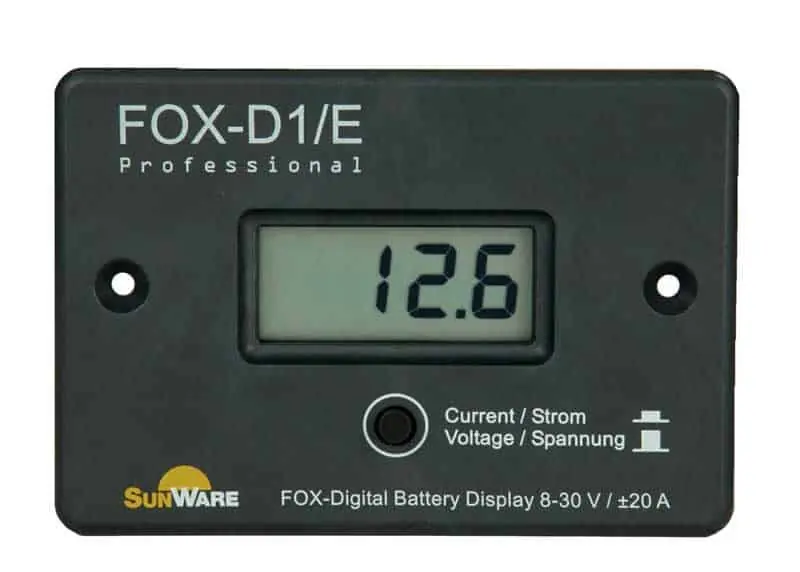

Available in a surface mount version (Fox-D1) and a panel mount version (Fox-D1/E)
