Shakespeare HA156C-AIS V-Tronix AIS Antenna

Price:57.81 ex. VAT
Price: 69.95 (inc. VAT)
SHAKESPEARE HA156C-AIS
2 in stock
7 days (approx.)
+
Shipping Costs:

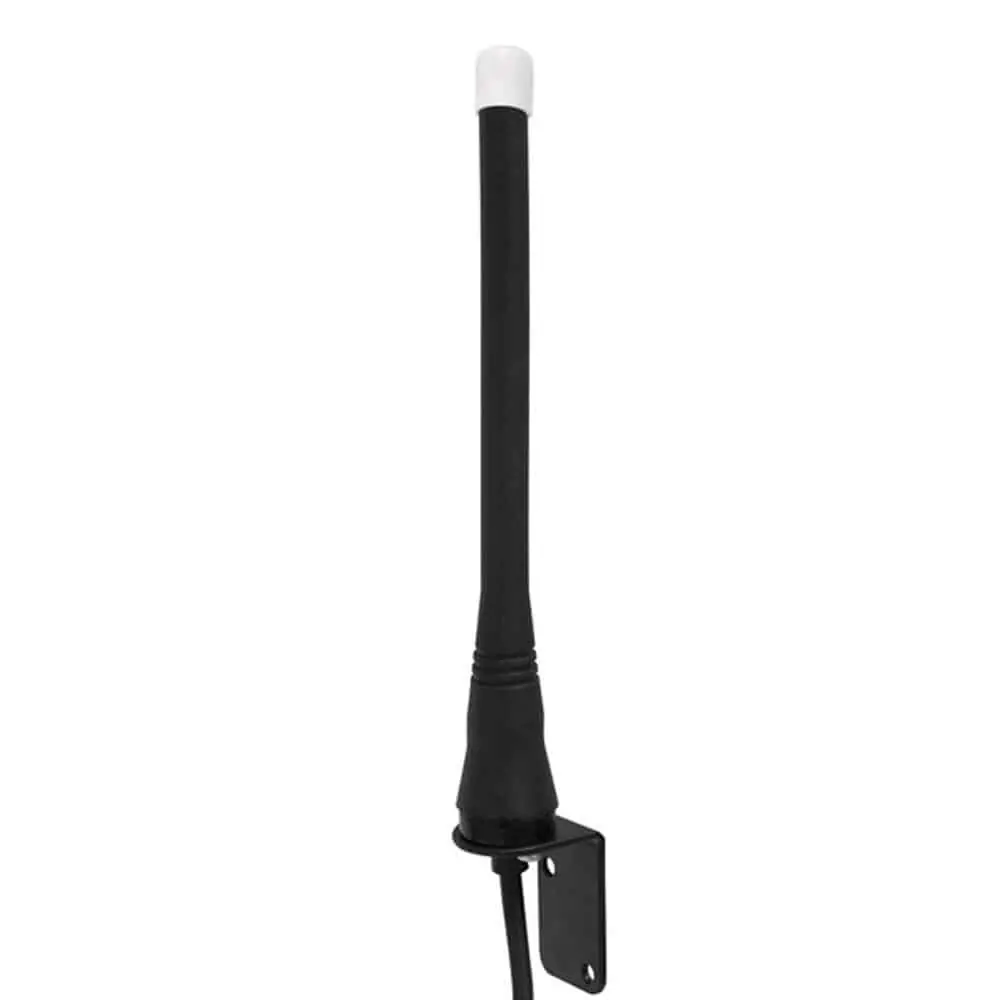

Heliflex Stubby type AIS antenna with 20 m of RG58 cable and aluminium L bracket. The HA156 is only 15 cm long and is specifically tuned to AIS (160-162Mhz) frequencies for optimal performance for both AIS receivers and transponders.

The cable is supplied with a BNC connector normally required for AIS receivers and transponders and integrated black aluminium L bracket for simple installation at the masthead of any other vertical surface.

Features:

  • Ultra light weight helical construction
  • Can be used as emergency backup VHF aerial
  • Tuned to give optimum gain and performance at AIS frequencies (160-162Mhz).
  • Gain 1 dB
  • Impedance 50 ohms
  • Polarization Vertical
  • SWR  ≤ 1,5 at 162 MHz
  • Max. Input Power 50 W
  • DC Ground No
  • Antenna length 150 mm
  • Antenna Weight 50 g
  • BNC bayonet connector
