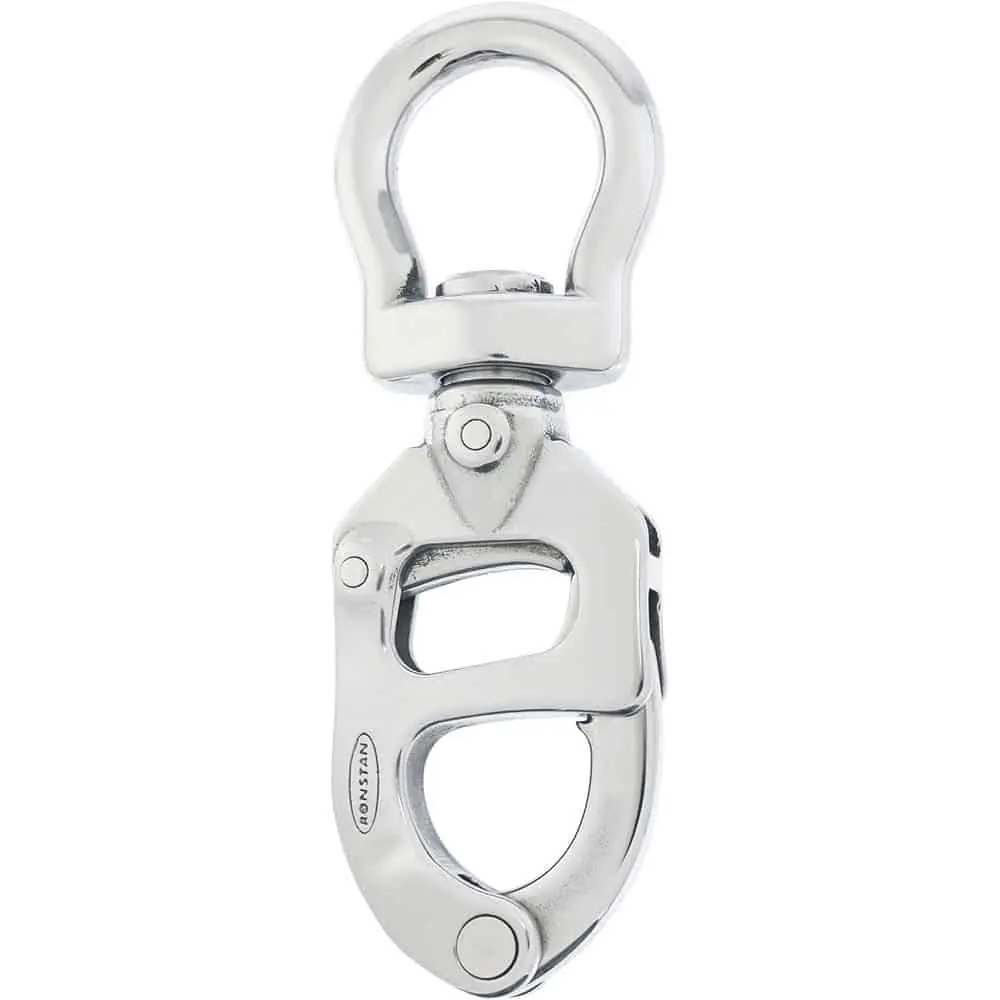

Ronstan Triggersnap™ Shackles

List price:193.12 ex. VAT Price:181.78 ex. VAT
Price: 219.95 (inc. VAT)
You save: €11.34 (6%)
Save 6%
RONSTAN RF7320
Preorder
3 days (approx.)
+
Shipping Costs:

High strength to weight ratio and individually proof-load tested and stamped during manufacture for maximum quality control and traceability. Triggersnaps™, the latest shackle range from Ronstan feature a latch mechanism for quick and easy single handed operation. Release safely under load with the Ronstan aluminium spike to easily activate the trigger.

Manufactured from 15-5PH stainless steel by a precision casting process (investment casting) and heat treated for both very high strength and excellent corrosion resistance and durability.

Features:

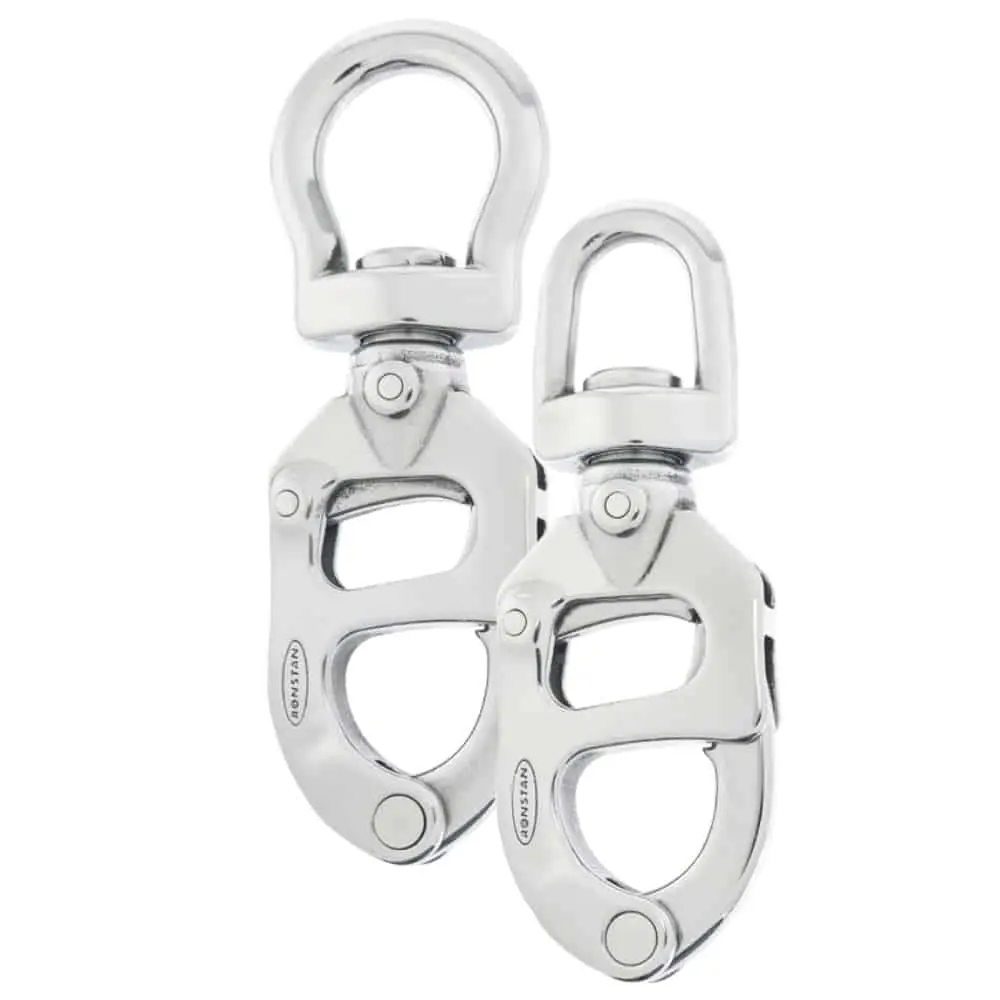

  • Small and large bail versions
  • High strength-to-weight ratio
  • Heat treated, precision cast 15-5PH stainless steel body, bail, latch & trigger
  • 316 Stainless steel rivets & springs
  • Individually proof-load tested
  • Individually stamped with a production code for traceability
  •  Use the aluminium spike to release safely™ while under load


Available in three sizes with small and large bail versiones.

Ronstan Triggersnaps

Ref. Model A
mm
B
mm
C
mm
Work Load
kg
Break Load
kg
Weight
g
RF7110 Series 100 Small Bail 14 9 80 1000 2000 60
RF7120 Series 100 Large Bail 14 18 89 1000 2000 66
RF7210 Series 200 Small Bail 16 13 97 1600 3200 106
RF7220 Series 200 Large Bail 16 22 108 1600 3200 116
RF7310 Series 300 Small Bail 19 16 114 2400 4800 170
RF7320 Series 300 Large Bail 19 25 123 2400 4800 194
  Product Code Triggersnaps™ Availability Price
Ronstan Triggersnap™ Shackles - bluemarinestore.com
RONSTAN RF7110
Series 100 Small Bail
3 days
177.95 (inc. VAT)
147.07 (ex. VAT)
Ronstan Triggersnap™ Shackles - bluemarinestore.com
RONSTAN RF7120
Series 100 Large Bail
3 days
183.94 (inc. VAT)
152.02 (ex. VAT)
Ronstan Triggersnap™ Shackles - bluemarinestore.com
RONSTAN RF7210
Series 200 Small Bail
3 days
179.95 (inc. VAT)
148.72 (ex. VAT)
Ronstan Triggersnap™ Shackles - bluemarinestore.com
RONSTAN RF7220
Series 200 Large Bail
3 days
195.95 (inc. VAT)
161.94 (ex. VAT)
Ronstan Triggersnap™ Shackles - bluemarinestore.com
RONSTAN RF7310
Series 300 Small Bail
3 days
213.95 (inc. VAT)
176.82 (ex. VAT)
Ronstan Triggersnap™ Shackles - bluemarinestore.com
RONSTAN RF7320
Series 300 Large Bail
3 days
219.95 (inc. VAT)
181.78 (ex. VAT)

Ronstan Triggersnaps Data Sheet EN (835 Kb) - Download
