Maestrini Vittoria Bronze Ball Valve / Sea Cock

Price:114.01 ex. VAT
Price: 137.95 (inc. VAT)
MAESTRINI 28910E
Last one in stock
10 days (approx.)
+
Shipping Costs:

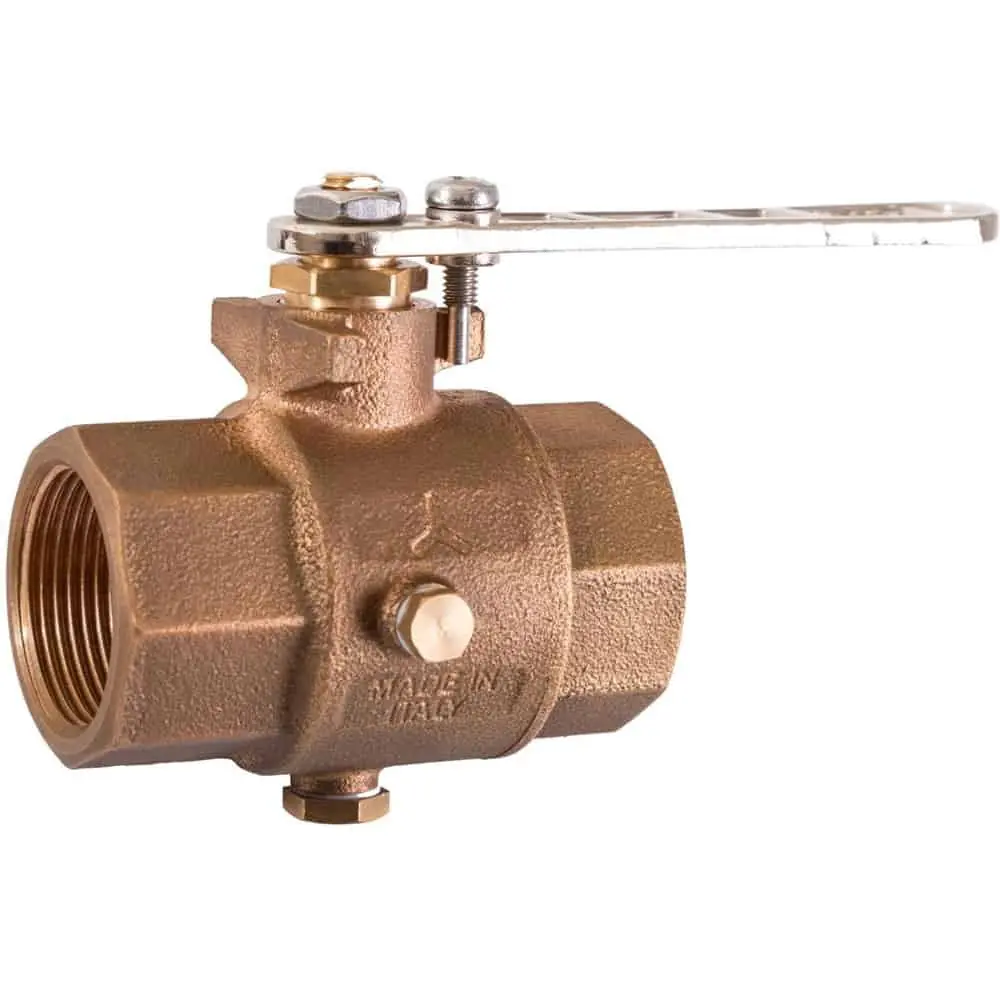

Patented Gunmetal bronze BSP ball valve with polymer ball approved by RINA for use below the waterline on pleasure vessels.

The Maestrini Vittoria ball valve has now been awarded two patents. The first for the innovative reversible handle, ideal for installation in tight spots and close to bulkheads and the second for the connection between the polymer ball and the shaft which significantly improves the reliability of operation.

Unlike other bronze ball valves, the Maestini Vittoria is manufactured not only with a bronze body but also a bronze stem and coupling for maximum corrosion resistance.  The acetal polymer ball and PTFE ball sealing gaskets ensure maximum reliability and the nickel plated brass handle stays corrosion free even in damp bilges. The 28910 Vittoria ball valve features both bottom and side drain valves for easy winterization in cold climates.

CuSn5Zn5Pb5 Bronze or Gunmetal, ensures maximum corrosion resistance in seawater, does not suffer from crevice corrosion or stress cracking and provides decades of trouble free service.

Specifications:

  • Body Material: CC499K EN1982 Gunmetal Bronze
  • Stem & coupling Material: CC491K Gunmetal Bronze
  • Ball Material: Acetal Polymer
  • Handle: CW617N EN12165 Nickel plated Brass
  • Operating Temp: -10°C to + 120°C
  • Maximum Operating Pressure: 500 psi

  Product Code Maestrini Thread Availability Price
Maestrini Vittoria Bronze Ball Valve / Sea Cock - bluemarinestore.com
MAESTRINI 28910D
1/2" BSP
In stock
119.95 (inc. VAT)
99.13 (ex. VAT)
Maestrini Vittoria Bronze Ball Valve / Sea Cock - bluemarinestore.com
MAESTRINI 28910E
3/4" BSP
In stock
137.95 (inc. VAT)
114.01 (ex. VAT)
Maestrini Vittoria Bronze Ball Valve / Sea Cock - bluemarinestore.com
MAESTRINI 28910F
1" BSP
In stock
164.95 (inc. VAT)
136.32 (ex. VAT)
Maestrini Vittoria Bronze Ball Valve / Sea Cock - bluemarinestore.com
MAESTRINI 28910G
1"1/4 BSP
In stock
196.95 (inc. VAT)
162.77 (ex. VAT)
Maestrini Vittoria Bronze Ball Valve / Sea Cock - bluemarinestore.com
MAESTRINI 28910H
1"1/2 BSP
In stock
233.95 (inc. VAT)
193.35 (ex. VAT)
AG 7935PR03
13.71 ex. VAT   16.59
Stainless steel replacement handle for the original zinc plated steel handle of Effebi Isis DZR ball valves. The zinc plated steel handle and locking nut...
In stock
