Blue Wave Swageless Fork Terminal

Price:32.19 ex. VAT
Price: 38.95 (inc. VAT)
BLUE WAVE 840804
Please Confirm
+
Shipping Location:

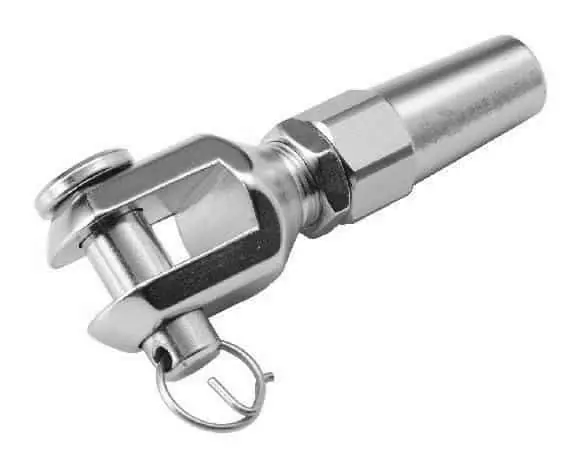

Llyods approved Llyods approved, highly polished stainless steel AISI 316, swageless fork terminal. Does not require unwinding the cable for installation. Suitable for standard 1x19 wire, 7x7 semi flexible wire and compact strand. Installed quickly by hand with tools we have on board. In our opinion swageless termianls are not only more reliable than swaged terminals but they can be inspected, re-used and are ideal for emergency repairs even in the most remote locations. Contact us for other sizes.

Blue Wave Swageless Fork Terminal

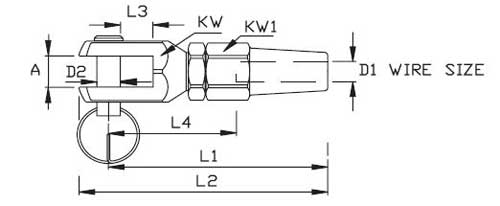

Dimensions in mm

Wire ID A L1 L2 L3 D1 D2 KW KW1 Breakload Weight
4mm 840804 8 62 73 8 4 8 19 14 1500 kg 0.073 kg
5mm 841005  10 72 83 10 10 22  16  2180 kg  0.098 kg
6mm 841206  12 82 95 12 12 27  19  3700 kg  0.150 kg
7mm 841207 12 102 115  13 12 29  22  4700 kg  0.212 kg
8mm  841408  14  103 118 14 14 30  24  5600 kg  0.281 kg
10mm 841610 16  117 135  16  10  16  36  27  8300 kg  0.460 kg
12mm  841912 18 142  162  16 12  19  42 32  12000 kg  0.720 kg
  Product Code Wire Size Availability Price
Blue Wave Swageless Fork Terminal - bluemarinestore.com
BLUE WAVE 840804
4 mm
Please Confirm
32.19 ex. VAT

38.95 (inc. VAT)

Blue Wave Swageless Fork Terminal - bluemarinestore.com
BLUE WAVE 841005
5 mm
In stock
38.80 ex. VAT

46.95 (inc. VAT)

Blue Wave Swageless Fork Terminal - bluemarinestore.com
BLUE WAVE 841206
6 mm
In stock
49.55 ex. VAT

59.96 (inc. VAT)

Blue Wave Swageless Fork Terminal - bluemarinestore.com
BLUE WAVE 841207
7 mm
Please Confirm
65.25 ex. VAT

78.95 (inc. VAT)

Blue Wave Swageless Fork Terminal - bluemarinestore.com
BLUE WAVE 841408
8 mm
Please Confirm
80.12 ex. VAT

96.95 (inc. VAT)

Blue Wave Swageless Fork Terminal - bluemarinestore.com
BLUE WAVE 841610
10 mm
Please Confirm
101.61 ex. VAT

122.95 (inc. VAT)

Blue Wave Swageless Fork Terminal - bluemarinestore.com
BLUE WAVE 841912
12 mm
Please Confirm
164.46 ex. VAT

199.00 (inc. VAT)

Bluewave Swageless Terminals Installation English (Blue_Wave_Swageless_Terminals_Installation.pdf, 320 Kb) [Download]
