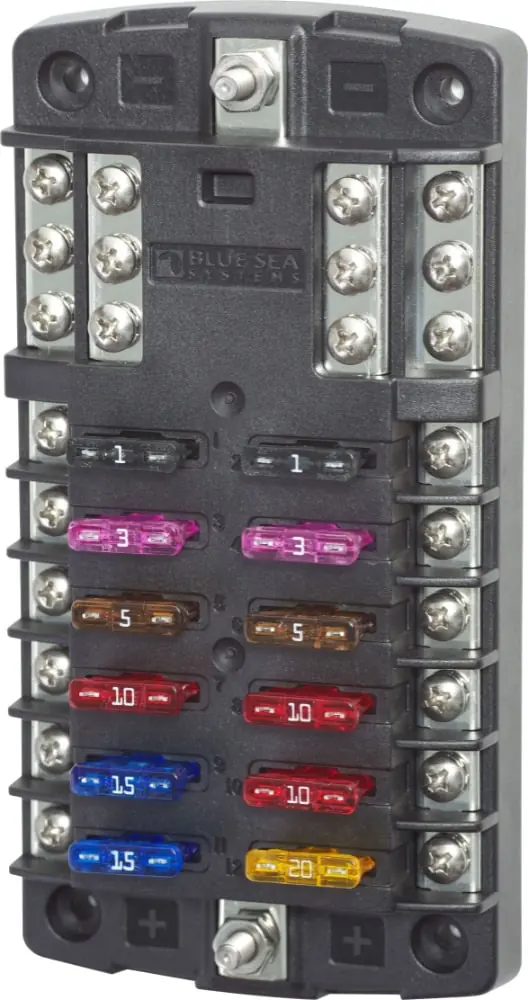

Blue Sea Systems ST Blade Fuse Block with Negative Bus

Price:75.99 ex. VAT
Price: 91.95 (inc. VAT)
BLUE SEA SYSTEMS 5026
3 in stock
7 days (approx.)
+
Shipping Costs:

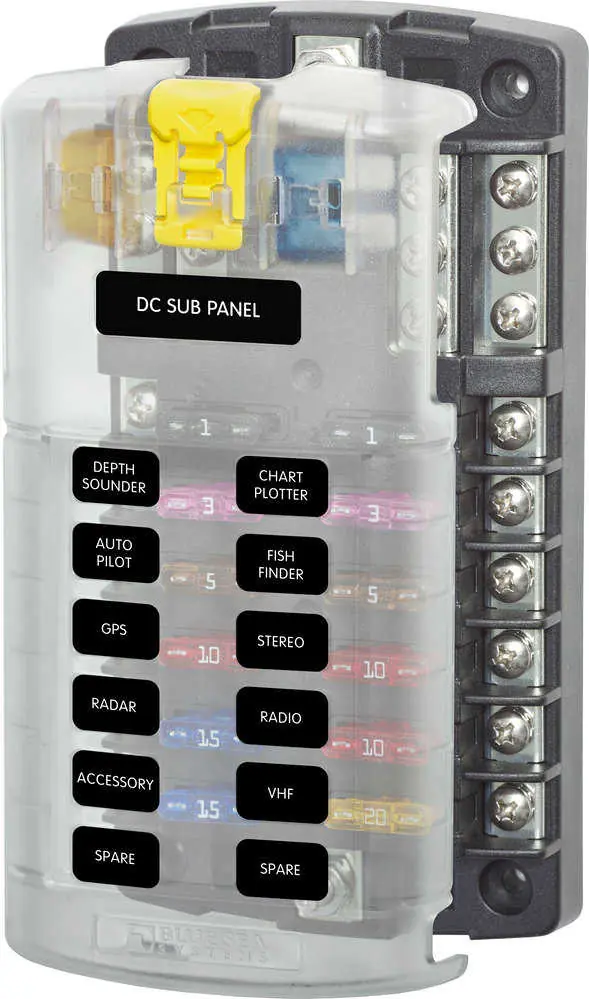

Simple and effective blade fuse holder with ABYC/USCG approved protective cover. Features a common positive #10-32 stud for connection to the positive supply,  a common negative #10-32 stud for connection to negative and screw down connectors for spade or ring crimp terminals for connecting circuits. All connections are tin plated copper for corrosion resistance. The cover features storage for two spare fuses. Accepts ATO or ATC blade fuses (not supplied). Includes 1 x 15 amp blades fuse and 20 x blank (write on ) labels. Also compatible with Blue Sea Systems' Small Format Labels for circuit identification.

Available in 6 fuse and 12 fuse versions.

Features:

  • Voltage Maximum Operating: 32V DC
  • Amperage Maximum Operating (per circuit): 30 Amps
  • Amperage Maximum Operating (per block): 100 Amps
  • Fuse Type:  ATO® or ATC® fuses

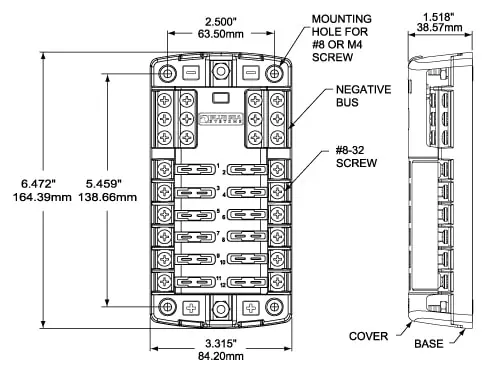

  • Positive Bus: #10-32 Stud
  • Negative Bus: #10-32 Stud
  • Terminal:  #8-32 Screws with captive star lock washer
  • Mounting:  #8 Screw (M4)



ST Blade Fuse Blocks are a great solution for adding circuit protection to new systems and equipment where there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the supply wire to the ST Blade Fuse Block. This is perfect for new electronics or lighting that have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 fuse ST Blade Fuse Block then provides a central location for the fuses for each of the new electronics, lighting or systems.

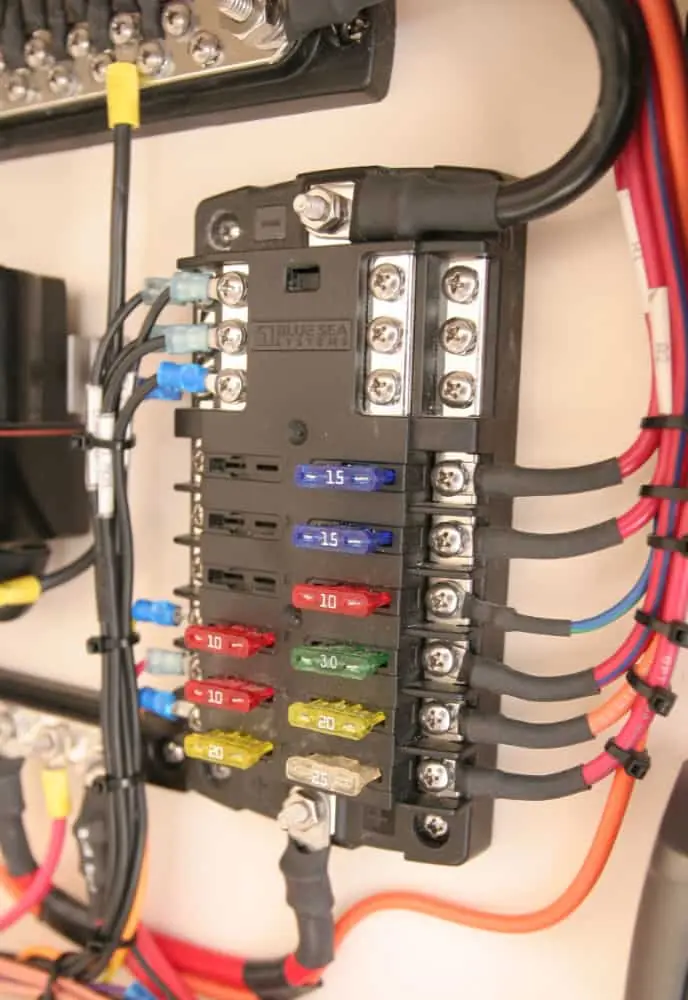

Blue Sea Systems ST Blade Fuse Block Wiring

  Product Code ST Fuse Block + Negative Bus Availability Price
Blue Sea Systems ST Blade Fuse Block with Negative Bus - bluemarinestore.com
BLUE SEA SYSTEMS 5025
6 Fuses - 5025
In stock
72.95 (inc. VAT)
60.29 (ex. VAT)
Blue Sea Systems ST Blade Fuse Block with Negative Bus - bluemarinestore.com
BLUE SEA SYSTEMS 5026
12 Fuses - 5026
In stock
91.95 (inc. VAT)
75.99 (ex. VAT)
