Whale Orca Electric Bilge Pump

Price:21.89 ex. VAT
Price: 26.49 (inc. VAT)
WHALE BE0500
Last one in stock
10 days (approx.)
+
Shipping Costs:

Submersible, compact and powerful electric bilge pump designed for use with a separate electric bilge switch (not included).

Full range of pumps to suit every installation with capacities from 32 l/min to 189 l/min and available for both 12 V or 24 V systems.

 Whale Orca Electric Bilge Pump

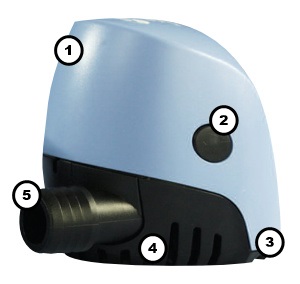

  1. Fully protected robust housing made from fuel and oil resistant ABS plastic.
  2. Easy release cover - simply press both buttons and pull to release.
  3. Versatile installation - choose from multiple wire location options.
  4. Efficiency large surface area ensures maximum area exposed to bilge water
  5. Easy to install with dual size stepped hose connector on the Orca 950 & Orca 1300.

 Features:

  • High performance - five models from 32 l/min up to 189 l/min
  • Compact design- fits in small spaces in the bilge
  • Low amp draw means long battery life
  • Efficient design - large filter base ensures maximum surface area exposed to bilge water
  • Simple installation - multiple wire locations, extra long wires
  • Easily  maintained- access to motor cartridge and filter area
  • Reliability - robust ABS fuel-resistant housing

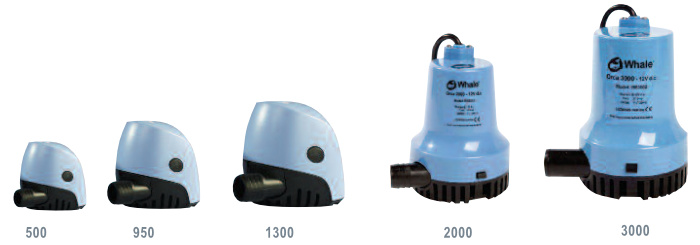

Available in 5 models with both 12 V and 24 V versions.

Whale Orca Electric Bilge Pumps

Model Ref. Flow Rate
0 Metre Head
Flow Rate
1 Metre Head
Max.
Discharge
Head m
Voltage

Current

Recommended
Fuse

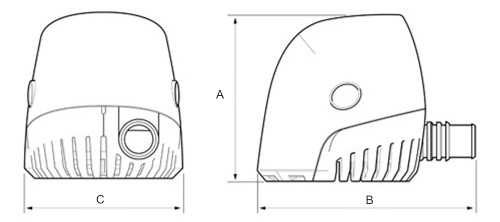

Hose Connector Dimensions
A x B x C mm
Weight
kg
Orca 500 BE0500 32 l/min
(500 GPH)
28 l/min
(450 GPH)
3 12 V 1.5 Amps 2 Amps 19 mm (3/4")  83 x 102 x 79 0.28
Orca 950 BE0950 59 l/min
(950 GPH)
53 l/min
(850 GPH)
3.5 12 V 3.5 Amps 5 Amps 25 mm (1") / 28 mm (1 ⅛")
Stepped
109  x 135 x 103 0.45
Orca 1300 BE1450 82 l/min
(1300 GPH)
69 l/min
(1100 GPH)
4.5 12 V 5.0 Amps 7.5 Amps 25 mm (1") / 28 mm (1 ⅛")
Stepped
129 x 168 x 121 0.82
Orca 1300 BE1454 82 l/min
(1300 GPH)
65 l/min
(1100 GPH)
4.5 24 V 2.5 Amps 5 Amps 25 mm (1") / 28 mm (1 ⅛")
Stepped
129 x 168 x 121 0.82

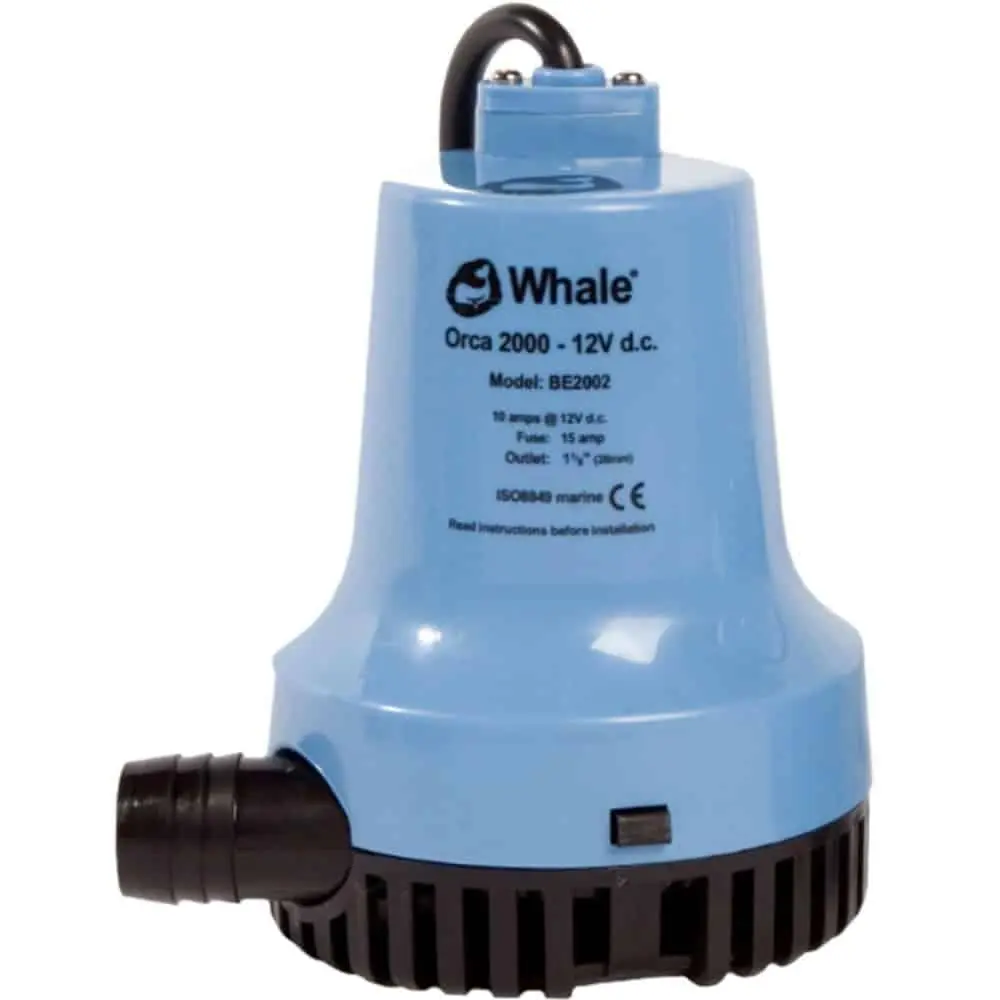

Orca 2000 BE2002 126 l/min
(2000 GPH)
104 l/min
(1650 GPH)
4 12 V 10 Amps 15 Amps 28 mm (1 ⅛") 165 x 144 x 121 1.32
Orca 2000 BE2004 126 l/min
(2000 GPH)
104 l/min
(1650 GPH)
4 24 V 10 Amps 15 Amps 28 mm (1 ⅛") 165 x 144 x 121 1.32
Orca 3000 BE3004 189 l/min
(3000 GPH)
170 l/min
(2700 GPH)
4.6 24 V 9 Amps 15 Amps 32 mm (1 ¼") 195 x 166 x 132 2.64

 Whale Orca Auto 1300

  Product Code Orca Availability Price
Whale Orca Electric Bilge Pump - bluemarinestore.com
WHALE BE0500
Orca 500 - 12 V
In stock
26.49 (inc. VAT)
21.89 (ex. VAT)
Whale Orca Electric Bilge Pump - bluemarinestore.com
WHALE BE0950
Orca 950 - 12 V
In stock
47.19 (inc. VAT)
39.00 (ex. VAT)
Whale Orca Electric Bilge Pump - bluemarinestore.com
WHALE BE1450
Orca 1300 - 12 V
In stock
60.95 (inc. VAT)
50.37 (ex. VAT)
Whale Orca Electric Bilge Pump - bluemarinestore.com
WHALE BE1454
Orca 1300 - 24 V
In stock
66.95 (inc. VAT)
55.33 (ex. VAT)
Whale Orca Electric Bilge Pump - bluemarinestore.com
WHALE BE2002
Orca 2000 - 12 V
10 days
172.95 (inc. VAT)
142.93 (ex. VAT)
Whale Orca Electric Bilge Pump - bluemarinestore.com
WHALE BE2004
Orca 2000 - 24 V
10 days
172.95 (inc. VAT)
142.93 (ex. VAT)
Whale Orca Electric Bilge Pump - bluemarinestore.com
WHALE BE3004
Orca 3000 - 24 V
Please Confirm
233.95 (inc. VAT)
193.35 (ex. VAT)

Whale Orca Electric Bilge Pump Datasheet EN (278 Kb) - Download

Whale Orca Bilge Pump Manual EN FR DE IT ES SE (232 Kb) - Download
