Simarine PICO Smart Battery Monitor

List price:251.00 ex. VAT Price:248.72 ex. VAT You save:2.28 (1%)
Price: 300.95 (inc. VAT)

Save 1%
SIMARINE P001
Preorder
7 days (approx.)
+
Shipping Costs

Award winning and innovative modular smart battery, energy, tank and temperature monitor with built-in Wifi and barometer.

Monitoring and managing battery state is essential to avoid battery failure and significant cost for unexpected battery replacement. We have more and more systems onboard from electronics to fridges, freezers, powered winches, watermakers etc. as well as alternative energy generation from solar, wind or hydro power. Monitoring how much power we generate and where we use it becomes more and more complicated. The Simarine Pico can show not only current battery state but also a detailed report on how we are using and generating energy. Up to 14 fuel, water and waste tanks can also be monitored as well as temperature, angle of heel etc. for a complete picture of overall endurance as well as environmental parameters.

The next generation battery and system monitor.

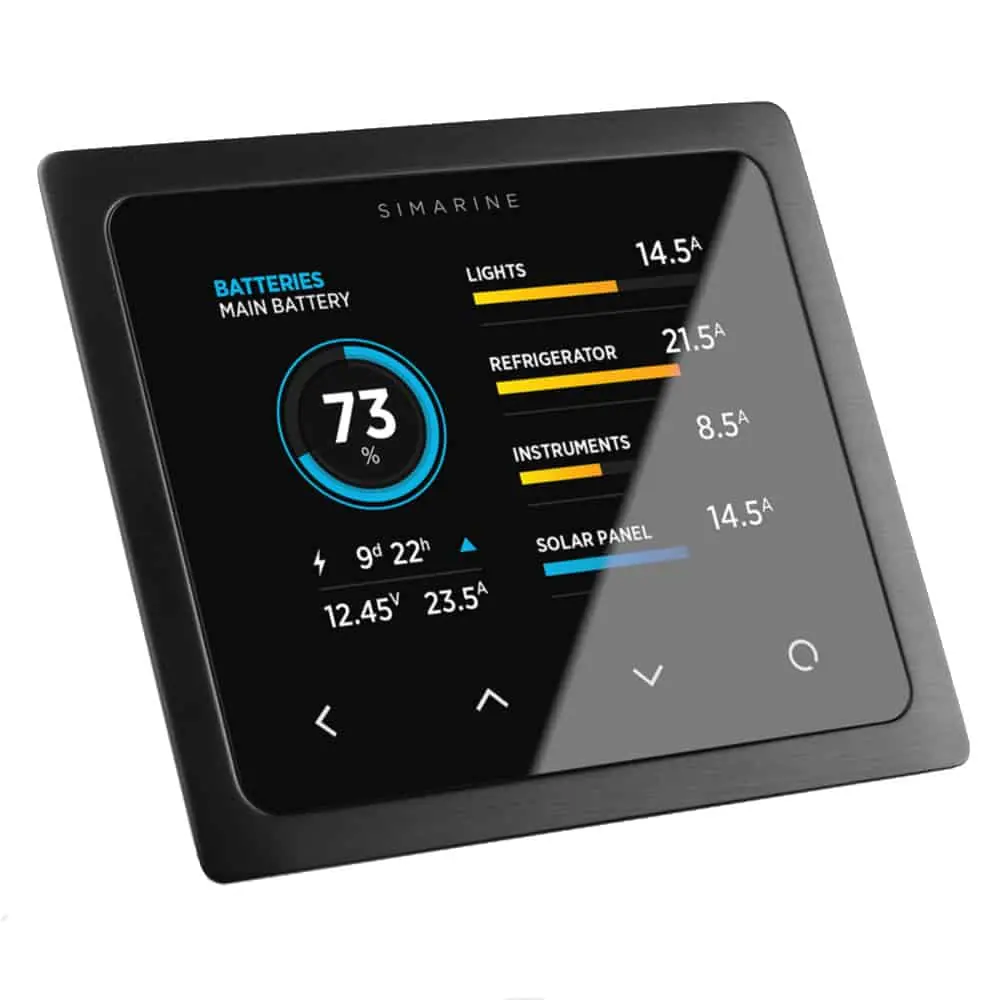

The Simarine PICO is a color 3.5" LCD TFT Gorilla Glass display with anti-reflective coating and 4 touch buttons in a anodised aluminium water and dustproof housing. The screen brightness is automatically adjusted with the built in light sensor. The PICO sets a new standard with Real-Time Battery Health™ Algorithm,  precise battery monitoring and health measurements and displays all the information you need in a elegant and simple user configurable color graphical display.

Modular design - perfect for a small boat or a super yacht

Simarine Pico Modular Design

PICO is compatible with all Simarine shunts and modules for battery monitoring, energy generation monitoring such as solar panels, wind/hydro generators and consumption monitoring such as fridges, freezers, lights, tank levels and environmental parameters such a temperature, angle of heel and air pressure. Start with exactly what you need and add systems as required.  The PICO expandable architecture allows adding up to 20 shunts and modules and can monitor up to 6 battery banks, 14 tanks and 20 independent consumer and generators.


Built-in Wifi and Free App

Simarine Pico Free App

The Simarine PICO has built-in Wi-Fi and combined with the free Android and iOS Apps, you can monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features from your mobile phone anywhere on board.

Simarine – Apps on Google Play

‎Simarine on the App Store (apple.com)



Built-in Precision Barometer and Barograph

The PICO now features a built-in precision barometer as standard. The barometer page shows the current air pressure and trend as well as a configurable barograph for easy monitoring of pressure changes and an early warning system for significant meteorological events.

Features:

  • Operating voltage: 6 - 35 V
  • Power consumption at 12V:  5mA - 90mA
  • Housing Construction: CNC-milled 6000 series anodized aluminium
  • Display: 3.5’’ IPS LCD optically bonded with anti-reflective Gorilla Glass®
  • Protection: Water- and dustproof to IP67
  • WIFI Radio Frequency Band: 2,4 GHz
  • Dimensions - Surface mount 89 x 84 x 10 mm, Panel Mount 108,5 x 94 x 10 mm
  • Connectivity - Batteries x 6, Shunts x 24, Temperature sensors x 10, Tank level sensors x 14, Inclinometer sensors x 2
  • Logging Capacity - up to 3 months

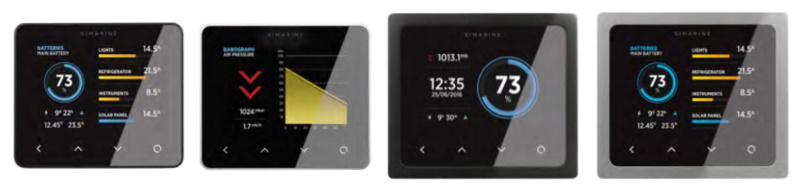

Available in four models, surface mount black or silver and panel mount black or silver.

Simarine Pico Battery Monitor


Available in the following packs:

PICO Display Unit Only

Compatible with all Simarine shunts and modules allowing a custom modular configuration. Add features as and when required.

PICO One Pack - PICO Display Unit + SC301 Combo Shunt

Battery current up to 300 A + 2 voltage inputs + 2 tank/ temperature inputs.

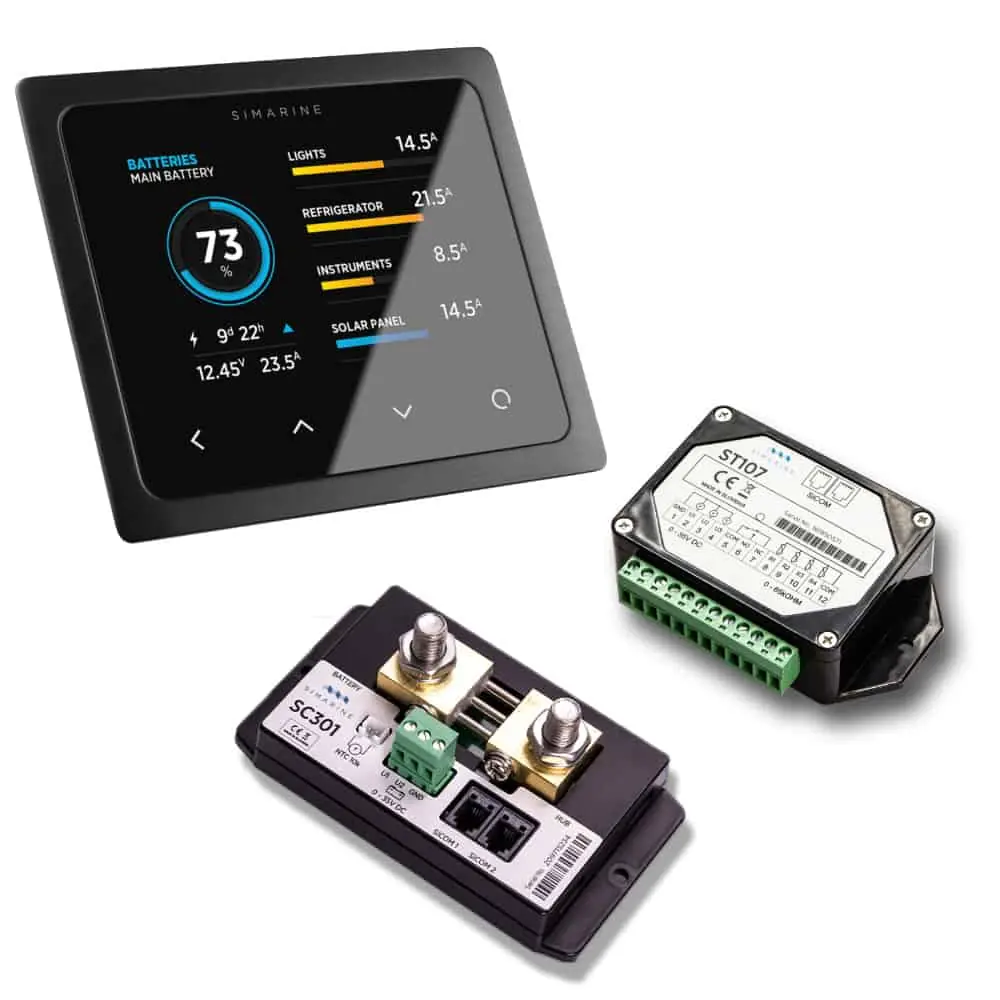

PICO Standard Pack - PICO Display Unit + SC301 Shunt + ST107 Tank and Voltage Module

Battery current up to 300 A + 2 voltage inputs + 2 tank/ temperature inputs.
3 voltage inputs + 4 resistance inputs + 1 relay output - monitor up to 7 tank levels, 3 battery voltages and 4 temperatures.

PICO Blue Pack - PICO Display Unit + SC501 Shunt + ST107 Tank and Voltage Module + SCQ25 Quadro Shunt Module

Battery current up to 500 A + 2 voltage inputs + 1 temperature inputs.
3 voltage inputs + 4 resistance inputs + 1 relay output - monitor up to 7 tank levels, 3 battery voltages and 4 temperatures.
4 x Consumer devices or generators + 3 voltage inputs + 4 resistance inputs + 1 relay output

  Product Code Simarine PICO Pack Simarine PICO Model Availability Price
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE P001
PICO Display Only Surface Mount Black
7 days
300.95 (inc. VAT)
248.72 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE P002
PICO Display Only Surface Mount Silver
7 days
300.95 (inc. VAT)
248.72 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE P003
PICO Display Only Panel Mount Black
7 days
300.95 (inc. VAT)
248.72 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE PCKG1B
PICO One Pack Surface Mount Black
7 days
383.95 (inc. VAT)
317.31 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE PCKG2SB
PICO Standard Pack Surface Mount Black
7 days
489.00 (inc. VAT)
404.13 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE PCKG2SS
PICO Standard Pack Surface Mount Silver
7 days
489.00 (inc. VAT)
404.13 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE PCKG2PB
PICO Standard Pack Panel Mount Black
In stock
489.00 (inc. VAT)
404.13 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE PCKG2PS
PICO Standard Pack Panel Mount Silver
7 days
489.00 (inc. VAT)
404.13 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE PCKG3SB
PICO Blue Pack Surface Mount Black
7 days
639.94 (inc. VAT)
528.88 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE PCKG3SS
PICO Blue Pack Surface Mount Silver
In stock
639.94 (inc. VAT)
528.88 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE PCKG3PB
PICO Blue Pack Panel Mount Black
7 days
639.94 (inc. VAT)
528.88 ex. VAT
Simarine PICO Smart Battery Monitor - bluemarinestore.com
SIMARINE PCKG3SS
PICO Blue Pack Panel Mount Silver
In stock
639.94 (inc. VAT)
528.88 ex. VAT

Simarine PICO Quick Guide EN (346 Kb) - Download

Simarine Pico Manual EN DE Version 1.5 (2,863 Kb) - Download

Simarine SC301 SC501 Manual EN DE (1,193 Kb) - Download
