Selden Plain Bearing Block PBB Double with Becket

List price:52.16 ex. VAT Price:48.35 ex. VAT You save:3.81 (7%)
Price: 58.50 (inc. VAT)

Save 7%
SELDEN 405-001-06
3 in stock
3 days (approx.)
+
Shipping Costs

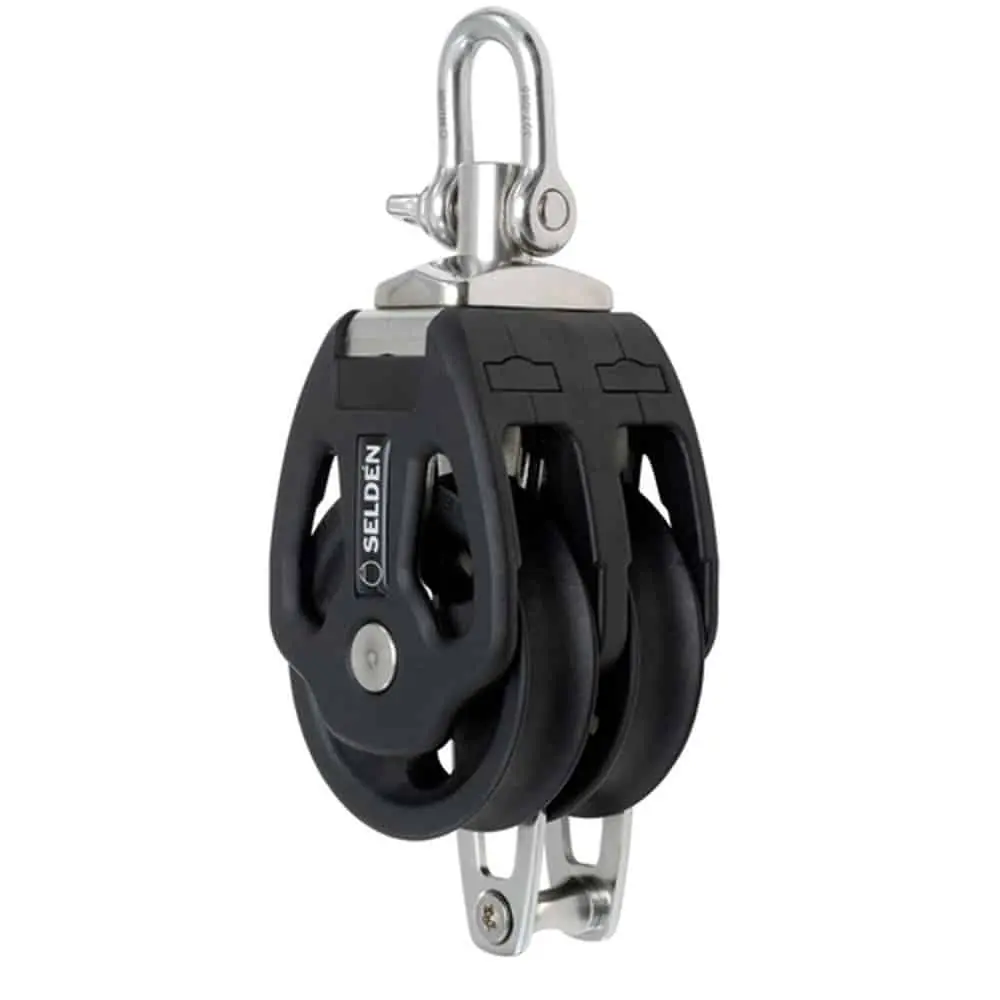

Selden Plain Bearing Block

Great performance at a great price and perfect for less dynamic applications where heavy loads are expected. Seldén Plain Bearing Blocks PBB are ideal for boom vangs, tackles, halyard blocks, spinnaker sheet and guys, preventers and cascades.

Features:

  1. Stainless steel AISI 316 shackle. Size 70 mm and 80 mm feature an oversized shackle pin for even more strength
  2. Stainless steel AISI 316 shackle shaft
  3. Stainless steel AISI 316 side strap for maximum strength and long service life
  4. Unique sliding lock/unlock mechanism for size 50 mm - 80 mm. The 100 mm block features a set screw locking system.
  5. Torsional rigid side plates manufactured from glass fibre reinforced polymer to prevent jamming. The 100 mm block features machined, black anodised side plates
  6. Stainless steel AISI 316 bearing pin
  7. Strong polymer sheave on sizes 50 mm and 60 mm, glass fibre reinforced sheave with polymer bushing on sizes 70 mm and 80 mm and on the 100 mm block an anodised aluminium sheave with a polymer bushing and two axial Delrin® bearings to stabilize the sheave when the rope enters or exits the block with an angle.

Available  in 3 sizes with 50, 60 and 80 mm sheave diameters.



Sheave Size
mm
Ref. Max. Line Size
mm
Shackle / Shackle Pin
mm
Working Load
kg
Breaking Load
kg
Weight
g
50 405-001-06 12 5 /5 650 1300 233
60 406-001-06 14 6/6 1000 2000 378
80 408-001-06 16 8/10 2000 4000 901
  Product Code Seldén PBB Size Availability Price
Selden Plain Bearing Block PBB Double with Becket - bluemarinestore.com
SELDEN 405-001-06
50 mm
In stock
58.50 (inc. VAT)
48.35 ex. VAT
Selden Plain Bearing Block PBB Double with Becket - bluemarinestore.com
SELDEN 406-001-06
60 mm
In stock
80.10 (inc. VAT)
66.20 ex. VAT
Selden Plain Bearing Block PBB Double with Becket - bluemarinestore.com
SELDEN 408-001-06
80 mm
3 days
205.00 (inc. VAT)
169.42 ex. VAT
