Osculati Precision Cast AISI 316 Stainless Steel Stud Hinge
The Osculati Precision-Cast AISI 316 Stainless Steel Stud Hinge is a premium marine-grade solution designed for demanding nautical applications, such as boat hatches, doors, lockers, engine compartments, lifting decks, and cockpit floor openings.
Crafted from high-quality AISI 316 stainless steel (marine-grade for superior corrosion resistance in saltwater environments), each hinge features precision casting and a mirror-polished finish that delivers both exceptional durability and refined elegance.
Key Advantages:
- Clean, fastener-free appearance — Studs on the underside allow secure mounting from below, eliminating visible screws on the top surface for a sleek, professional look.
- Superior sealing — The stud design makes it significantly easier to achieve watertight seals, helping prevent leaks around hatches and compartments.
- Robust construction — 4 mm thick material provides outstanding strength and longevity, even under heavy use.
- Versatile configurations — Available in upper hinge versions with 95° opening and lower hinge (concealed) versions with 180° opening, plus various left/right orientations (rectangular or D-shaped) to suit different installations.
Specifications Overview:
- Material: Precision-cast, mirror-polished AISI 316 stainless steel.
- Thickness: 4 mm.
- Width: 40 mm (consistent across all models).
- Available lengths: 63 mm, 70 mm, 76 mm, 126 mm.
- Stud configuration: 2+2 or 2+3 studs (depending on size).
- Sold individually.
These hinges combine unmatched strength, corrosion resistance, and aesthetic appeal — ideal for yacht builders, boat refitters, and owners who demand reliable, leak-resistant hardware without compromising on style.
| Ref. | Hinge | Opening | Left | Right | Width | Length | Studs |

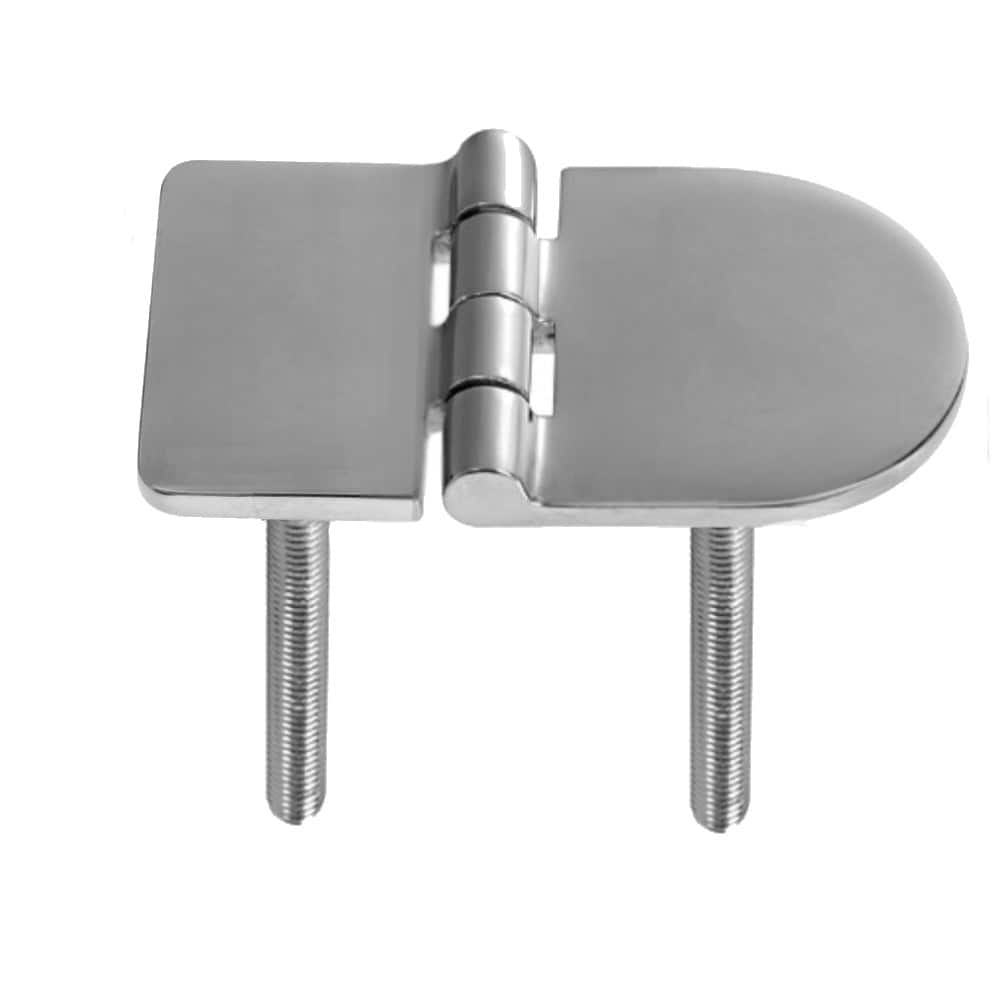

| 38.883.30 | Upper | 95° | Rectangular | D | 40 mm | 70 mm | 2+2 |

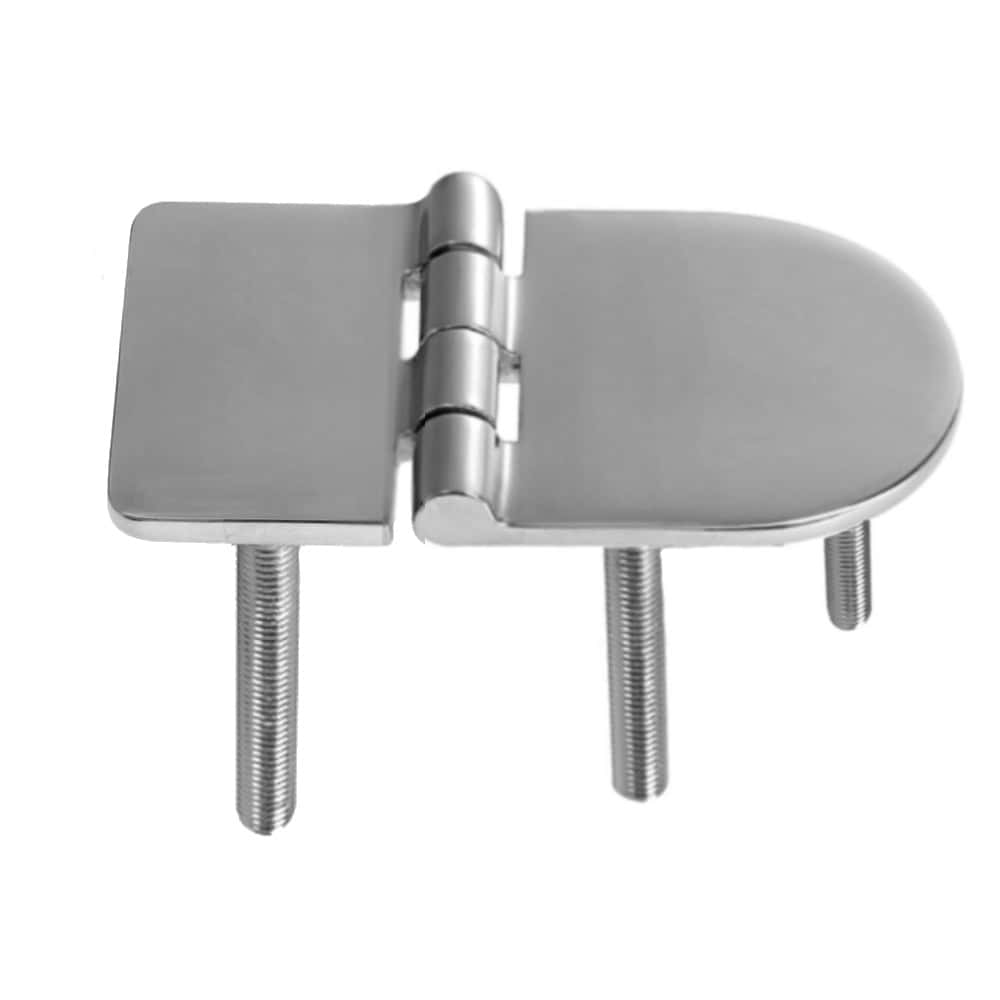

| 38.883.19 | Upper | 95° | Rectangular | D | 40 mm | 76 mm | 2+3 |

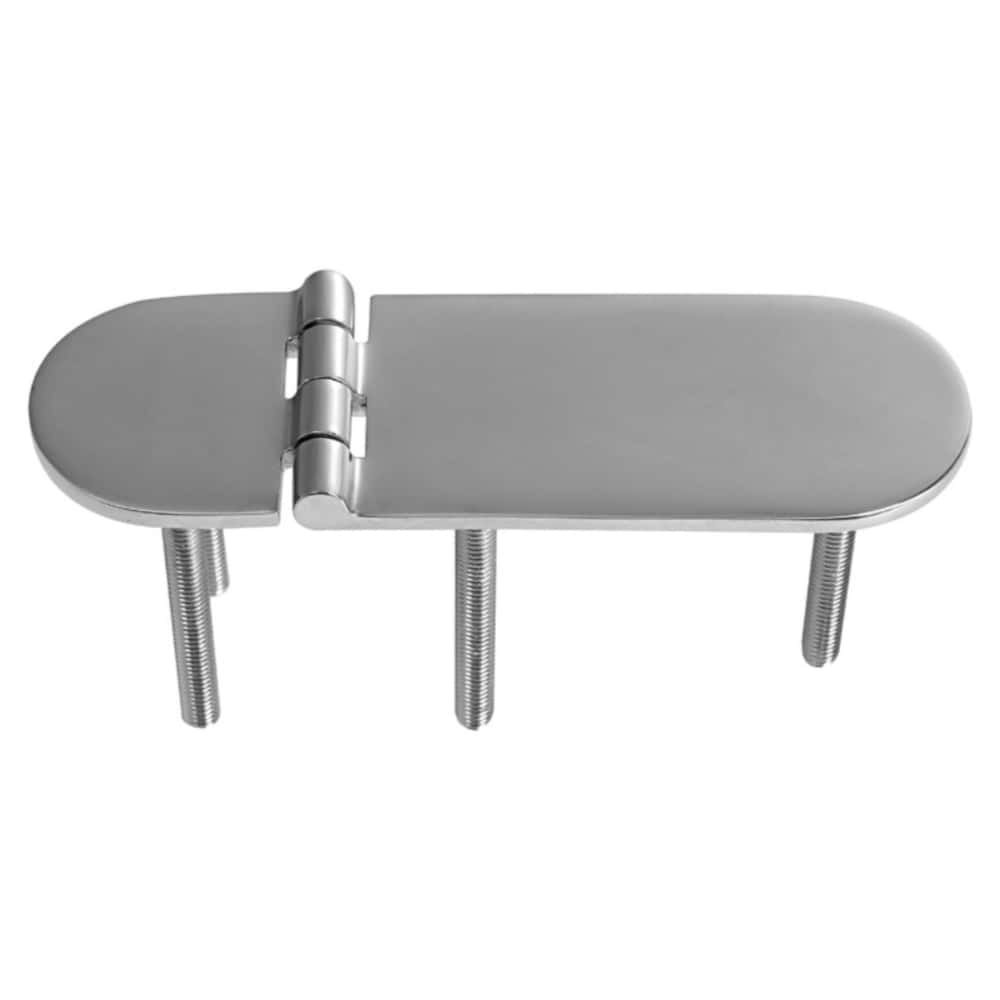

| 38.883.32 | Upper | 95° | D | Long D | 40 mm | 126 mm | 2+3 |
| 38.873.31 | Lower | 180° | Rectangular | D | 40 mm | 63 mm | 2+2 |

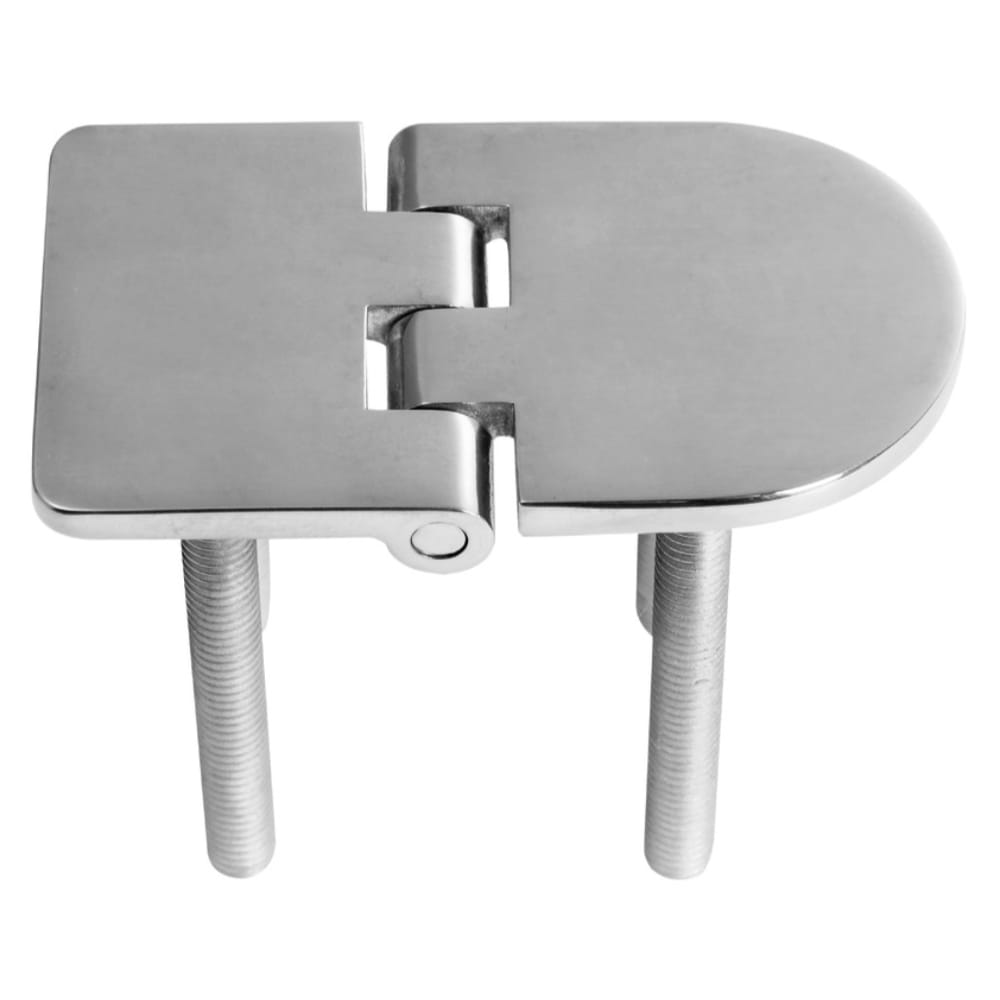

| 38.873.30 | Lower | 180° | Rectangular | D | 40 mm | 70 mm | 2+2 |
| 38.873.19 | Lower | 180° | Rectangular | D | 40 mm | 76 mm | 2+3 |

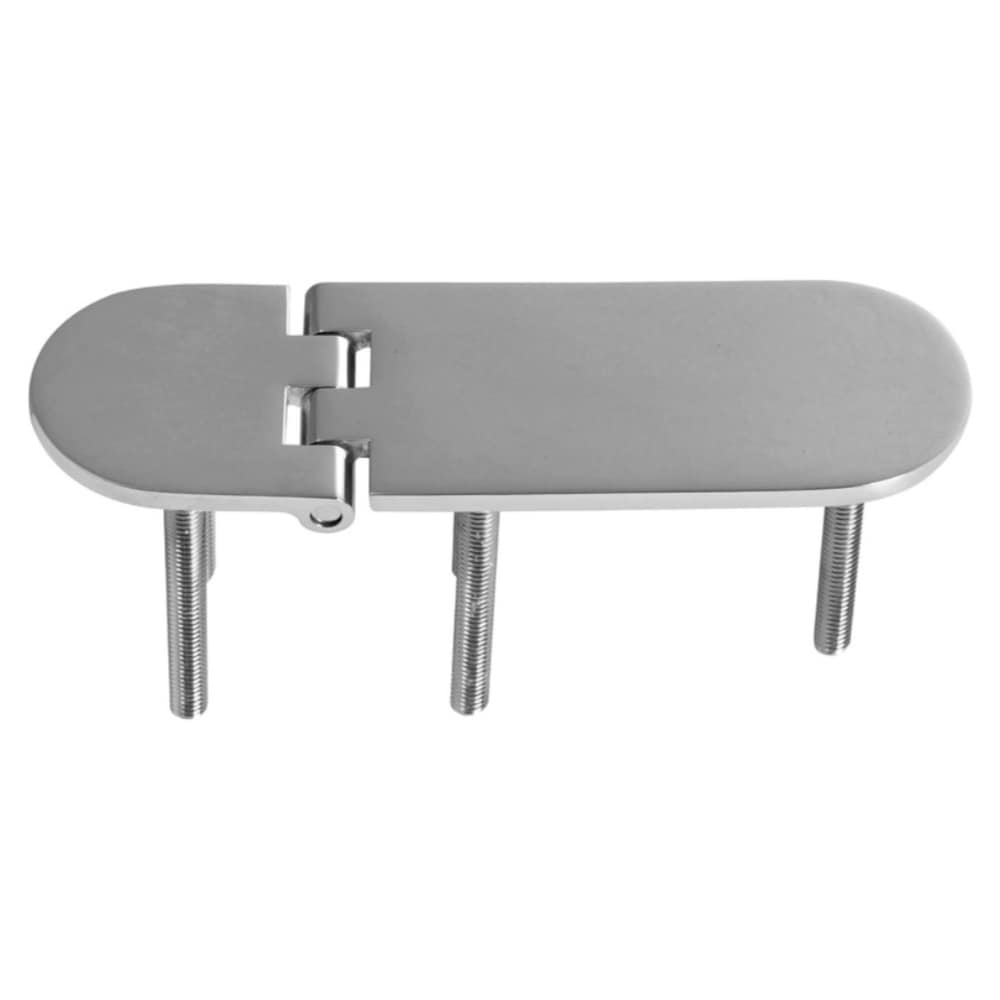

| 38.873.32 | Lower | 180° | D | Long D | 40 mm | 126 mm | 2+3 |
| Code | AISI 316 Stud Hinge | Availability | Price | |
|---|---|---|---|---|
|
OSCULATI 38.883.30
|
In stock
|
€14.50 (inc. VAT)
€11.98 (ex. VAT) |
|
|
OSCULATI 38.883.19
|
In stock
|
€19.38 (inc. VAT)
€16.02 (ex. VAT) |
|
|
OSCULATI 38.883.32
|
In stock
|
€19.19 (inc. VAT)
€15.86 (ex. VAT) |
|
|
OSCULATI 38.873.31
|
In stock
|
€12.69 (inc. VAT)
€10.49 (ex. VAT) |
|
|
OSCULATI 38.873.30
|
In stock
|
€13.39 (inc. VAT)
€11.07 (ex. VAT) |
|
|
OSCULATI 38.873.19
|
In stock
|
€19.29 (inc. VAT)
€15.94 (ex. VAT) |
|
|
OSCULATI 38.873.32
|
In stock
|
€17.59 (inc. VAT)
€14.54 (ex. VAT) |
No posts found

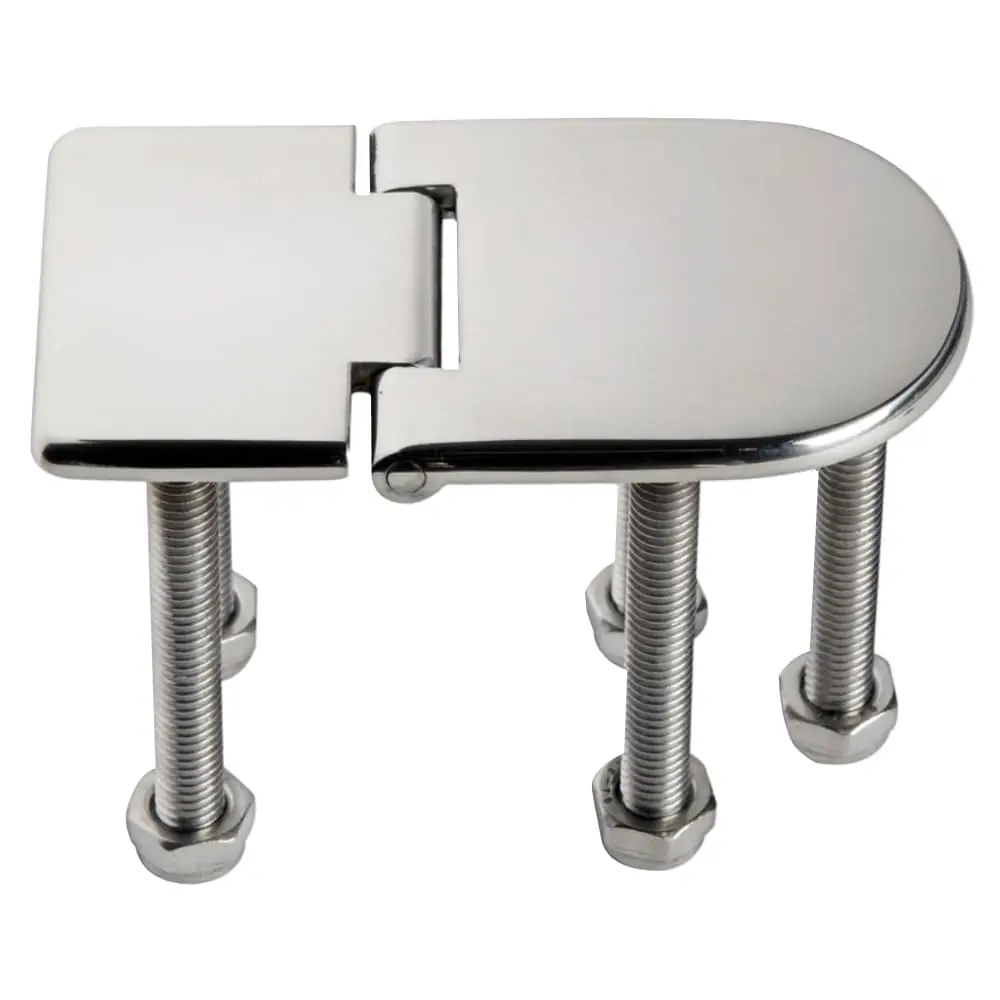

AISI 316 Stud Hinge:
40 mm x 76 mm - 38.873.19
