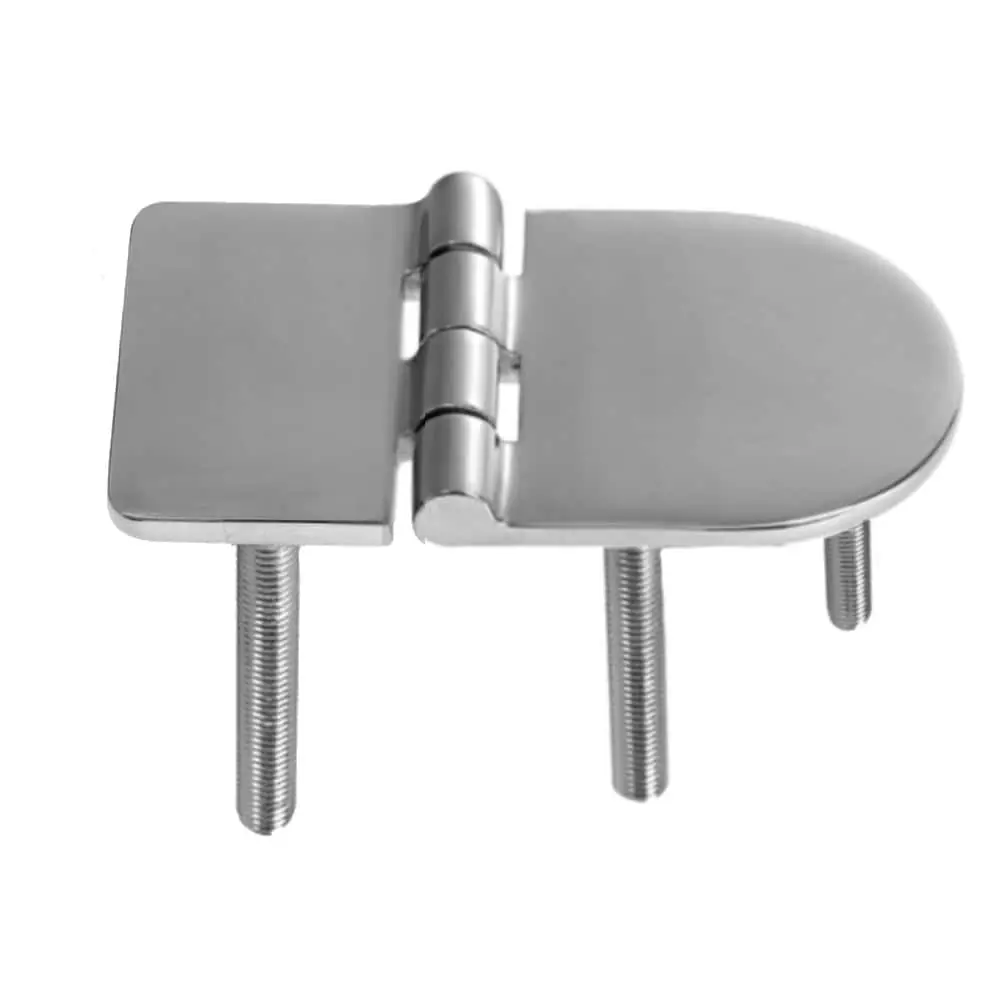

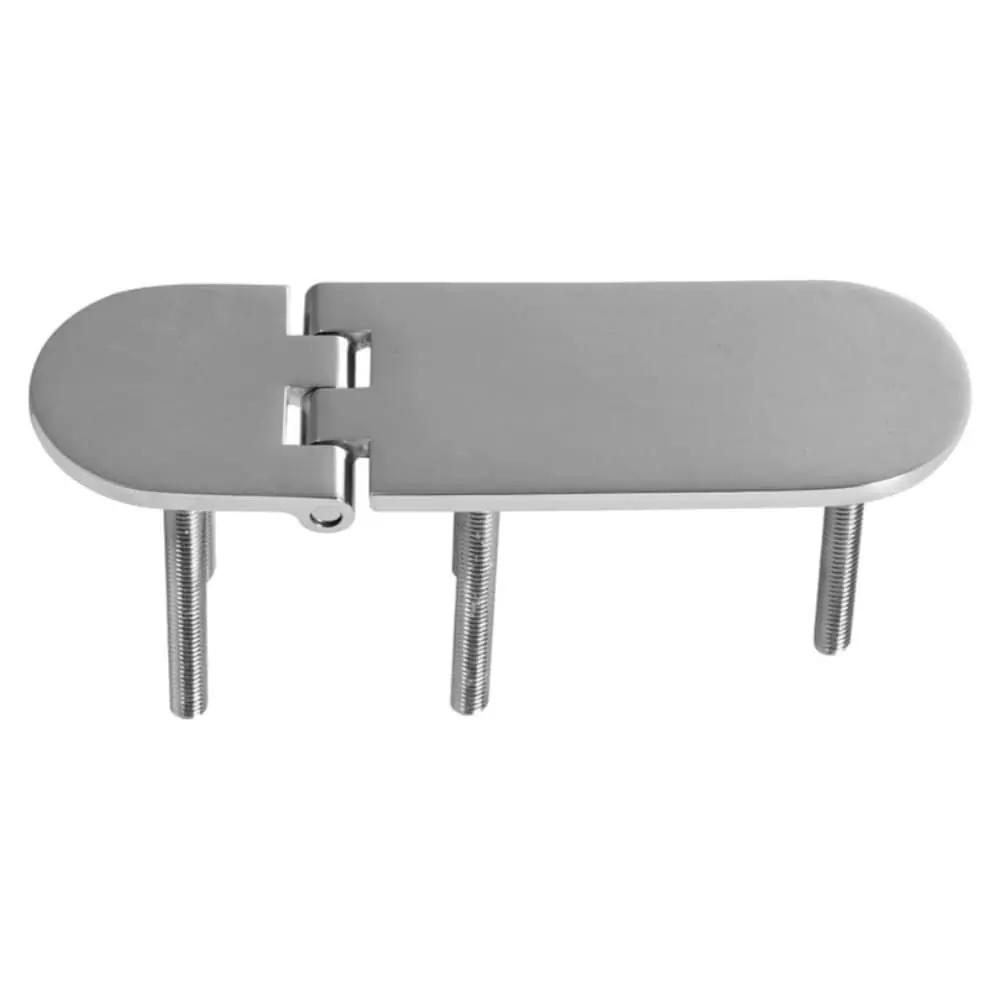

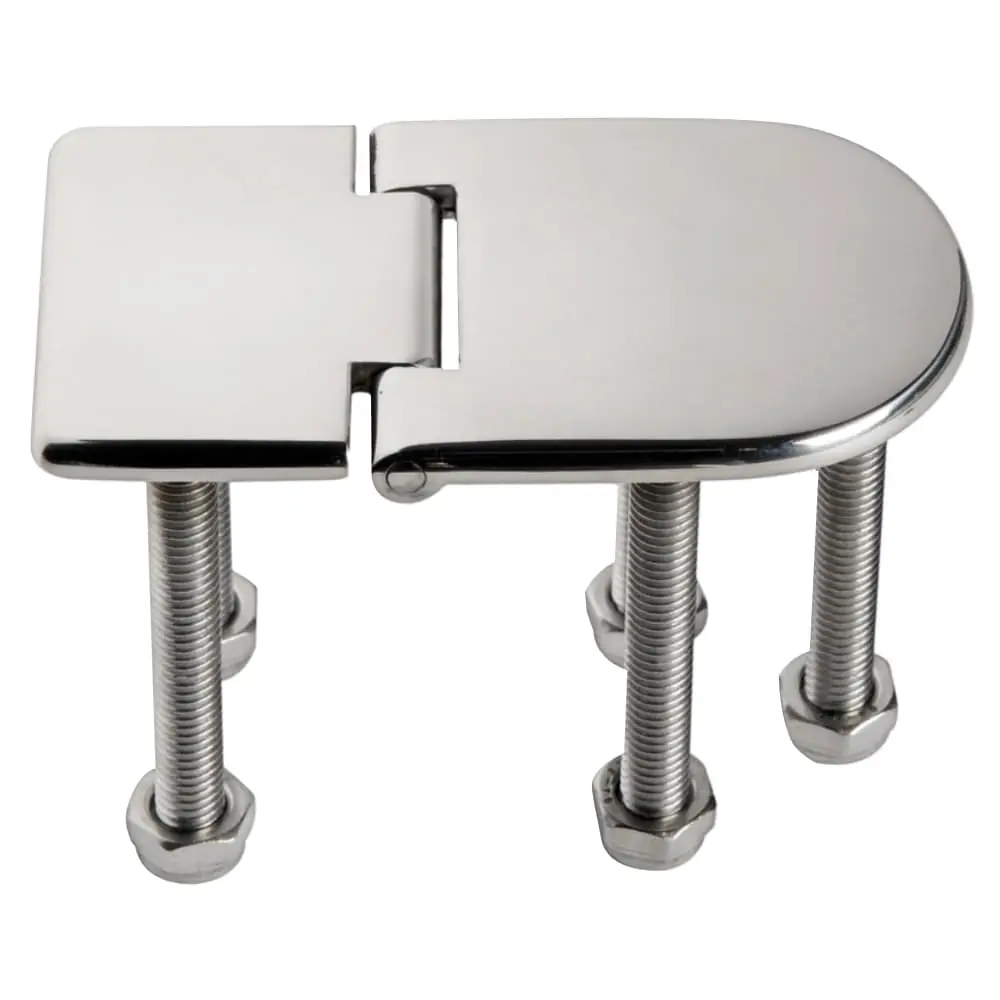

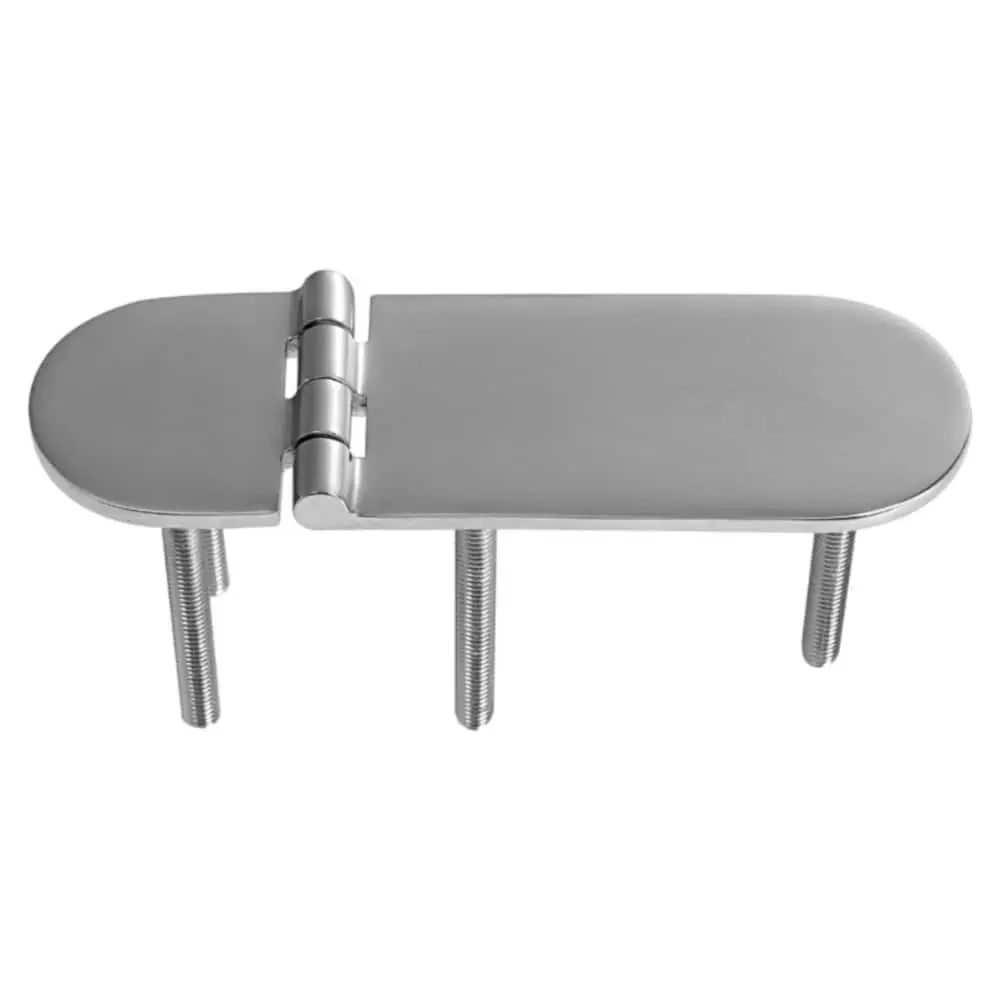

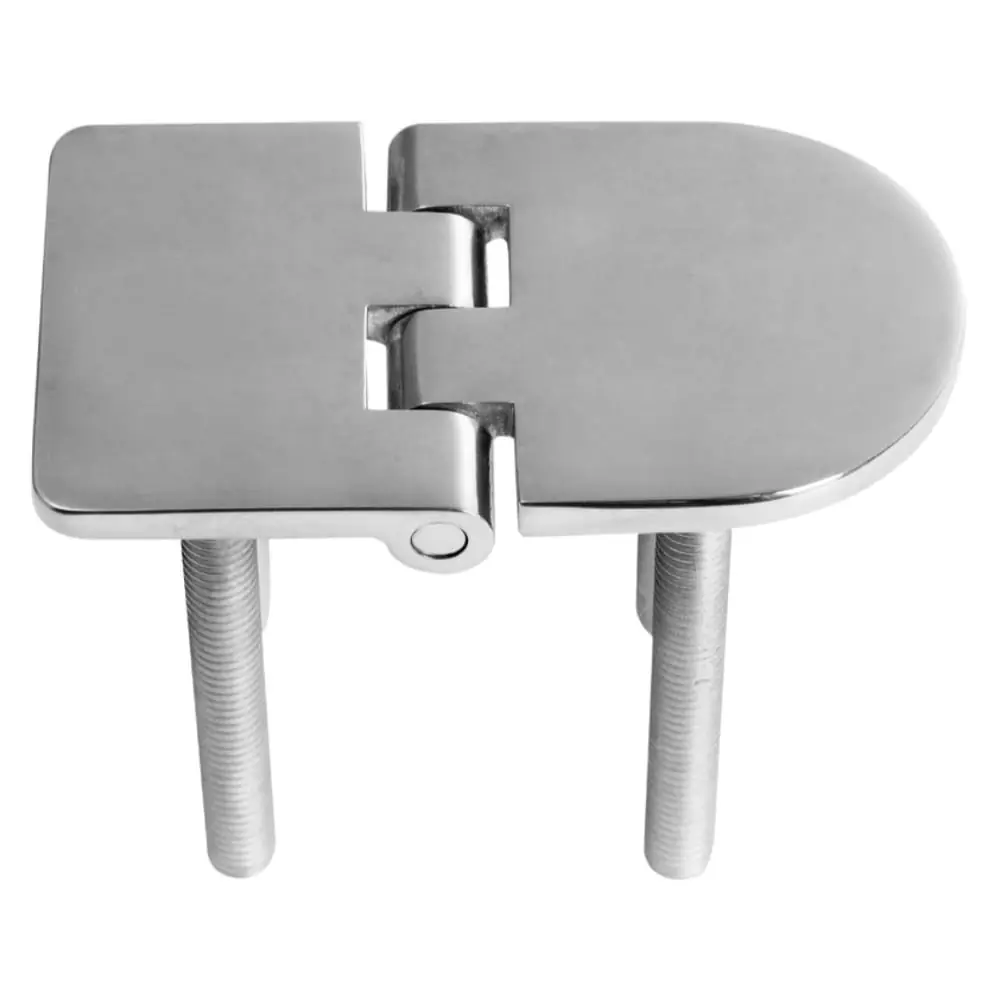

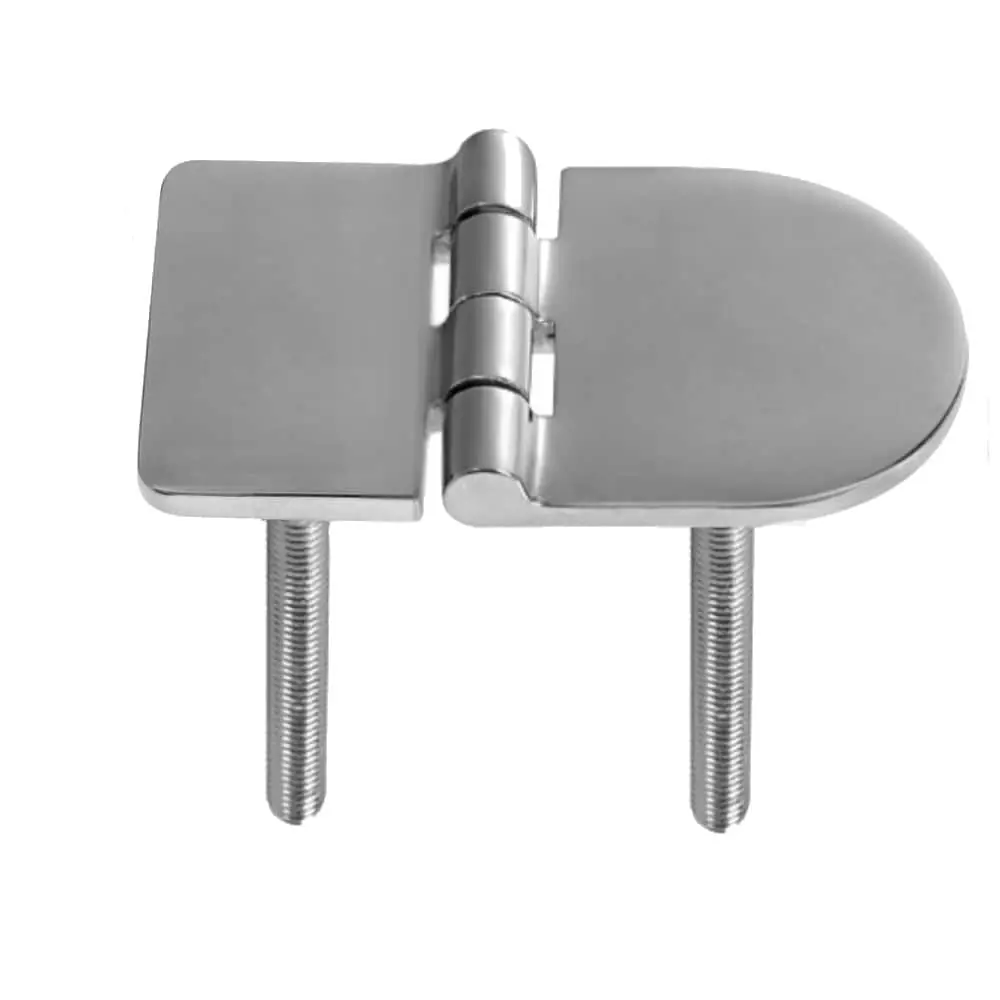

Osculati Precision Cast AISI 316 Stainless Steel Stud Hinge
Precision cast mirror polished AISI 316 stainless steel hinge with smooth upper surface and studs for fastening.
Very strong 4 mm thick construction and unmatched elegance due to the lack of visible fasteners. Stud hinges are also easier to seal and therefore avoid leaks.
Available with an upper hinge which allows a 95° opening or a lower concealed hinge with allows a 180° opening.
Sold each.
| Ref. | Hinge | Opening | Left | Right | Width | Length | Studs |
| 38.883.30 | Upper | 95° | Rectangular | D | 40 mm | 70 mm | 2+2 |
| 38.883.19 | Upper | 95° | Rectangular | D | 40 mm | 76 mm | 2+3 |
| 38.883.32 | Upper | 95° | D | Long D | 40 mm | 126 mm | 2+3 |
| 38.873.31 | Lower | 180° | Rectangular | D | 40 mm | 63 mm | 2+2 |
| 38.873.30 | Lower | 180° | Rectangular | D | 40 mm | 70 mm | 2+2 |
| 38.873.19 | Lower | 180° | Rectangular | D | 40 mm | 76 mm | 2+3 |
| 38.873.32 | Lower | 180° | D | Long D | 40 mm | 126 mm | 2+3 |
| Product Code | AISI 316 Stud Hinge | Availability | Price | |
|---|---|---|---|---|
|
OSCULATI 38.883.30
|
In stock
|
€15.09 (inc. VAT)
€12.47 (ex. VAT) |
|
|
OSCULATI 38.883.19
|
In stock
|
€20.19 (inc. VAT)
€16.69 (ex. VAT) |
|
|
OSCULATI 38.883.32
|
In stock
|
€19.89 (inc. VAT)
€16.44 (ex. VAT) |
|
|
OSCULATI 38.873.31
|
In stock
|
€13.29 (inc. VAT)
€10.98 (ex. VAT) |
|
|
|
OSCULATI 38.873.30
|
In stock
|
€13.89 (inc. VAT)
€11.48 (ex. VAT) |
|
|
OSCULATI 38.873.19
|
In stock
|
€20.09 (inc. VAT)
€16.60 (ex. VAT) |
|
|
OSCULATI 38.873.32
|
In stock
|
€18.30 (inc. VAT)
€15.12 (ex. VAT) |
No posts found
AISI 316 Stud Hinge:
40 mm x 70 mm - 38.883.30
