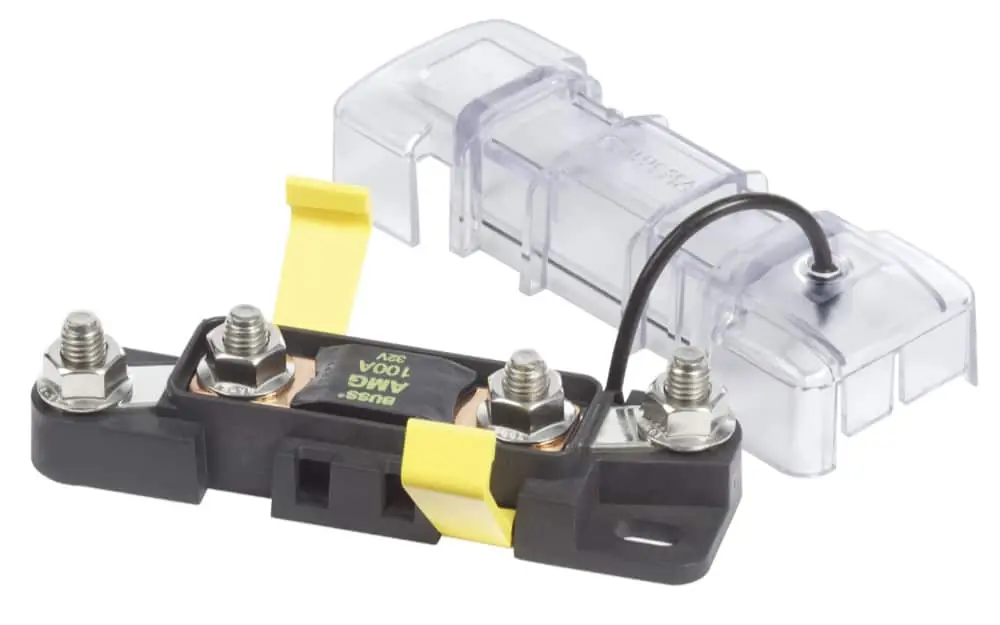

Blue Sea Systems MEGA® / AMG® Safety Fuse Block

Price:47.89 ex. VAT
Price: 57.95 (inc. VAT)
BLUE SEA SYSTEMS 7721
3 in stock
10 days (approx.)
+
Shipping Costs:

AMG type fuse holder for high amp circuits up to 300A, ignition protected for use aboard both gasoline or diesel powered boats.  The sealed cover protects the fuse from the harsh marine environment meets the ABYC/USCG insulation requirements. The cover features breakouts for optimum cable alignment in any direction.

AMG fuses are available from 100 amps to 300 amps, ideal for battery bank fuses (battery fuses should NOT be installed in the battery compartment), bow thrusters, windlasses and electric winches.

Model 7221
Maximum Voltage 32V DC
Terminal Stud Size 5 ∕ 16"-18 (M8)
Max. Cable Size Up to 4/0 AWG (100mm2)
Block Material Tin-Plated Copper
ANL Fuse Types 35–300 Amps
Base Material Reinforced Polycarbonate
Maximum Torque 120 in-lb (13.56 N·m)


Blue Sea Systems AMG Safety Fuse Holder

No posts found

Write a review

AMG type fuse holder for high amp circuits up to 300A, ignition protected for use aboard both gasoline or diesel powered boats.  The sealed cover protects the fuse from the harsh marine environment meets the ABYC/USCG insulation requirements. The cover features breakouts for optimum cable alignment in any direction.

AMG fuses are available from 100 amps to 300 amps, ideal for battery bank fuses (battery fuses should NOT be installed in the battery compartment), bow thrusters, windlasses and electric winches.

Model 7221
Maximum Voltage 32V DC
Terminal Stud Size 5 ∕ 16"-18 (M8)
Max. Cable Size Up to 4/0 AWG (100mm2)
Block Material Tin-Plated Copper
ANL Fuse Types 35–300 Amps
Base Material Reinforced Polycarbonate
Maximum Torque 120 in-lb (13.56 N·m)


Blue Sea Systems AMG Safety Fuse Holder
