Blue Sea Systems AMI / MIDI Safety Fuse Block

Price:38.80 ex. VAT
Price: 46.95 (inc. VAT)
BLUE SEA SYSTEMS 7720
2 in stock
7 days (approx.)
+
Shipping Costs:

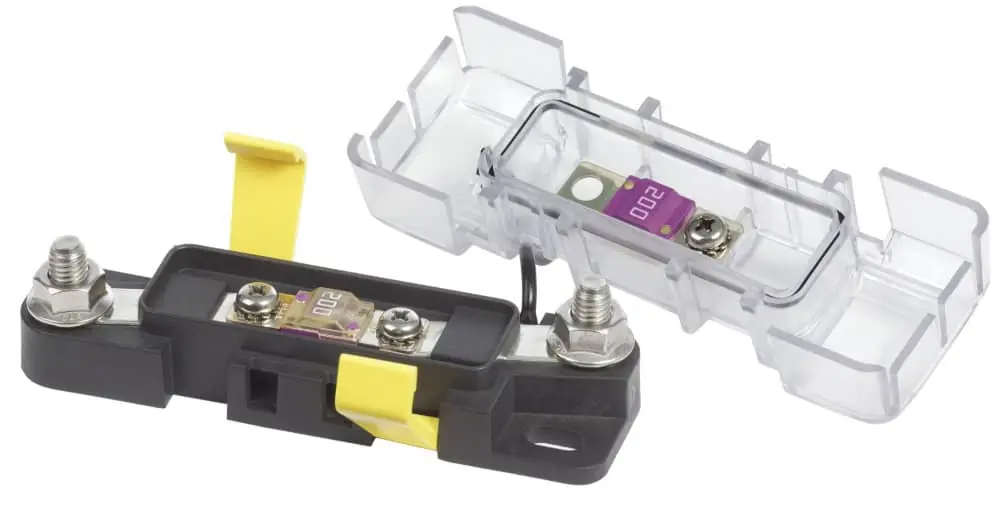

AMI / MIDI type fuse holder for circuits from 30 A to 200 A, ignition protected for use aboard both gasoline or diesel powered boats.  The sealed cover protects the fuse from the harsh marine environment and meets the ABYC/USCG insulation requirements. The cover features breakouts for optimum cable alignment in any direction.

Accepts Blue Sea Systems Square Format standard or custom label.

Fuses sold separately.

Model 7220
Maximum Voltage 32V DC
Terminal Stud Size 5 ∕ 16"-18 (M8)
Fuse Screw Size M5 x 0.8
Max. Cable Size Up to 4/0 AWG (100mm2)
Block Material Tin-Plated Copper
ANL Fuse Types 30–3200 Amps
Base Material Reinforced Polycarbonate
Maximum Torque 120 in-lb (13.56 N·m)


Blue Sea Systems AMI/MIDI Fuse Block
