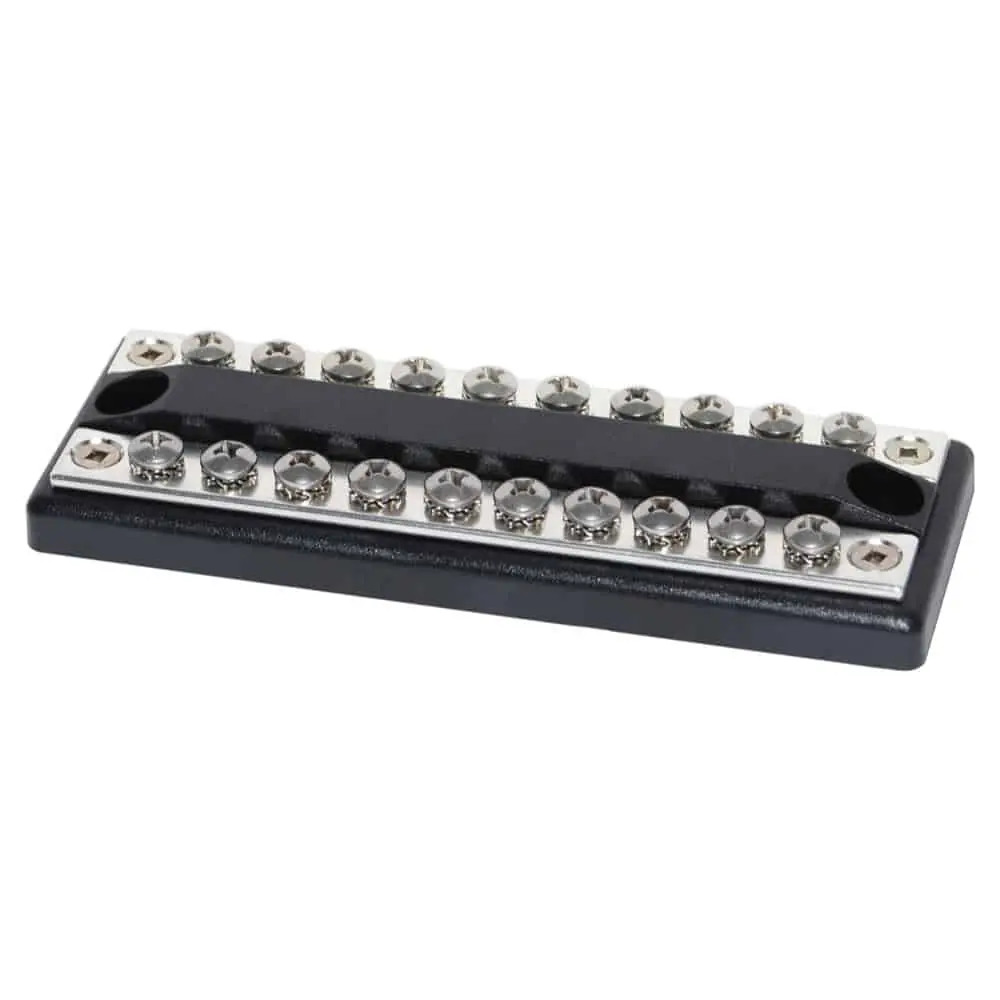

Blue Sea Systems 100 A DualBus Bus Bar

Price:27.76 ex. VAT
Price: 33.59 (inc. VAT)
BLUE SEA SYSTEMS 2702
2 in stock
10 days (approx.)
+
Shipping Costs:

Tin Plated 100 A dual copper busbar, used to consolidate multiple wires or feed multiple circuits. Combine both positive and negative circuits in the same bus bar.

Available with 2 x 5 #8-32 screws (2701) or with 2 x 10 #8-32 screws (2702)

  • Combine both positive and negative circuits
  • Great for limited space applications in electronics, cabinets and under dashboards
  • Tin-Plated copper bus won't corrode and stays conductive
  • Insulating cover available for model 2701 (Ref. 2709)


Specifications:

Model 2701 2702
Bus Material Tin Plated Copper
Base Material Glass reinforced Polycarbonate
Cover Material Polycarbonate
Maximum Operating Voltage Vmxo 48 Volts DC/ 300 Volts AC
Contimuous Rating Ic 100 A
Screw Size #8-32
Mounting Holes #10 M5 Screws
Weight 0.20 lb/0.1 kg 0.3 lb/0.14 kg


Blue Sea Systems DualBus

  Product Code DualBus 100 A Availability Price
Blue Sea Systems 100 A DualBus Bus Bar - bluemarinestore.com

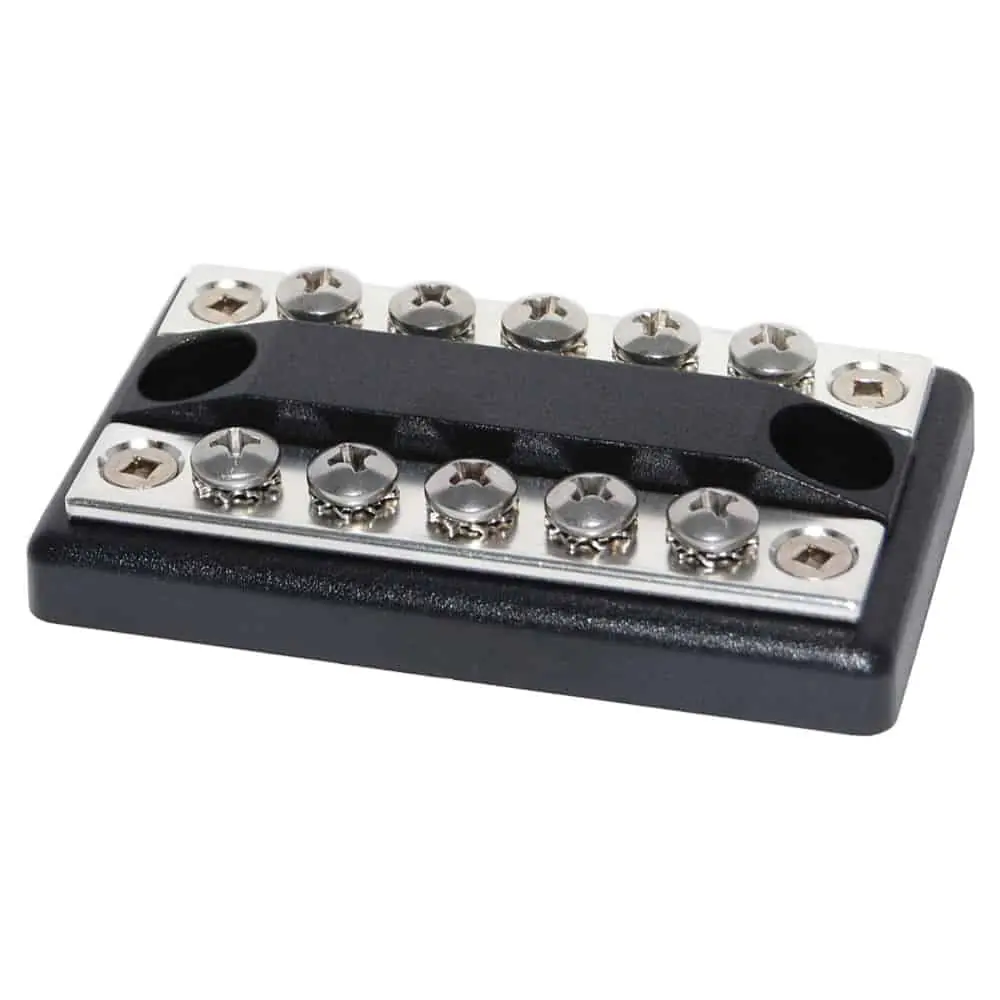

BLUE SEA SYSTEMS 2701
2701
In stock
26.69 (inc. VAT)
22.06 (ex. VAT)
Blue Sea Systems 100 A DualBus Bus Bar - bluemarinestore.com
BLUE SEA SYSTEMS 2702
2702
In stock
33.59 (inc. VAT)
27.76 (ex. VAT)
BLUE SEA SYSTEMS 2709
17.84 ex. VAT   21.59
Protective cover for Blue Sea Systems DualBus 2701 bus bar.
In stock
+
