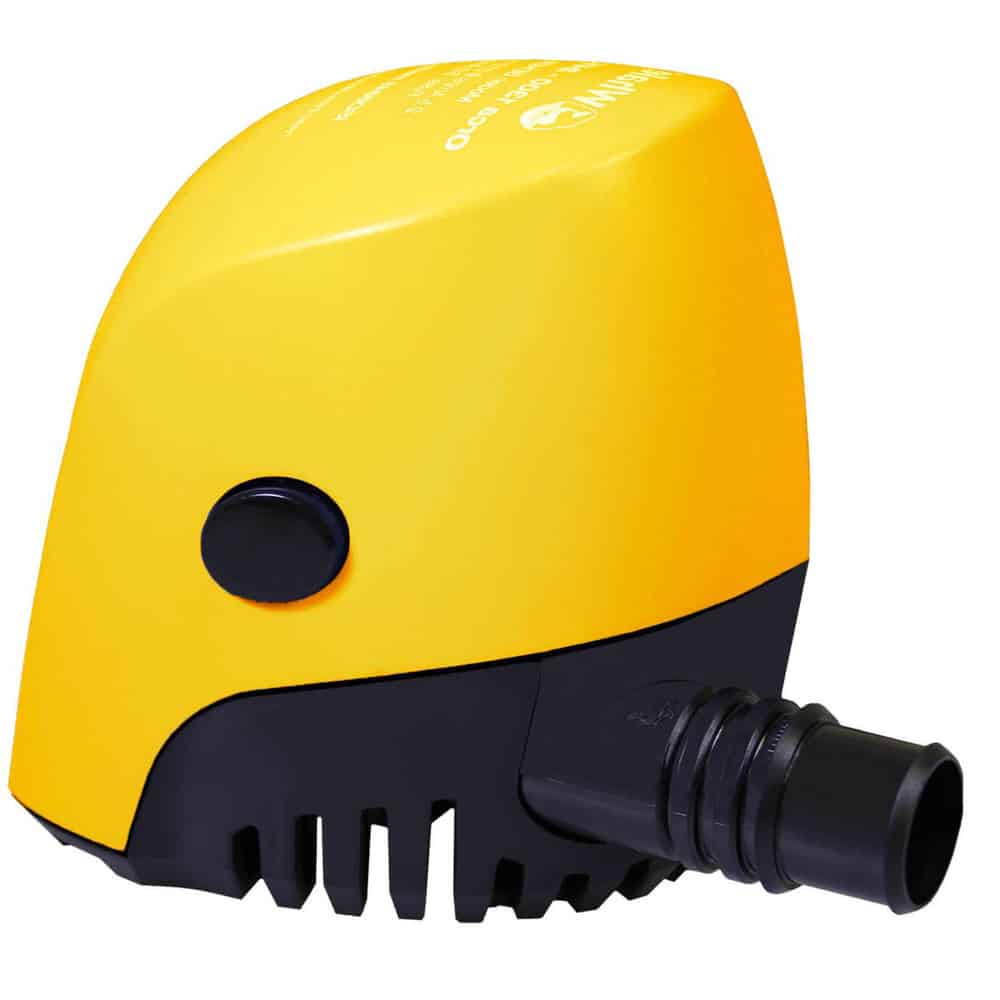

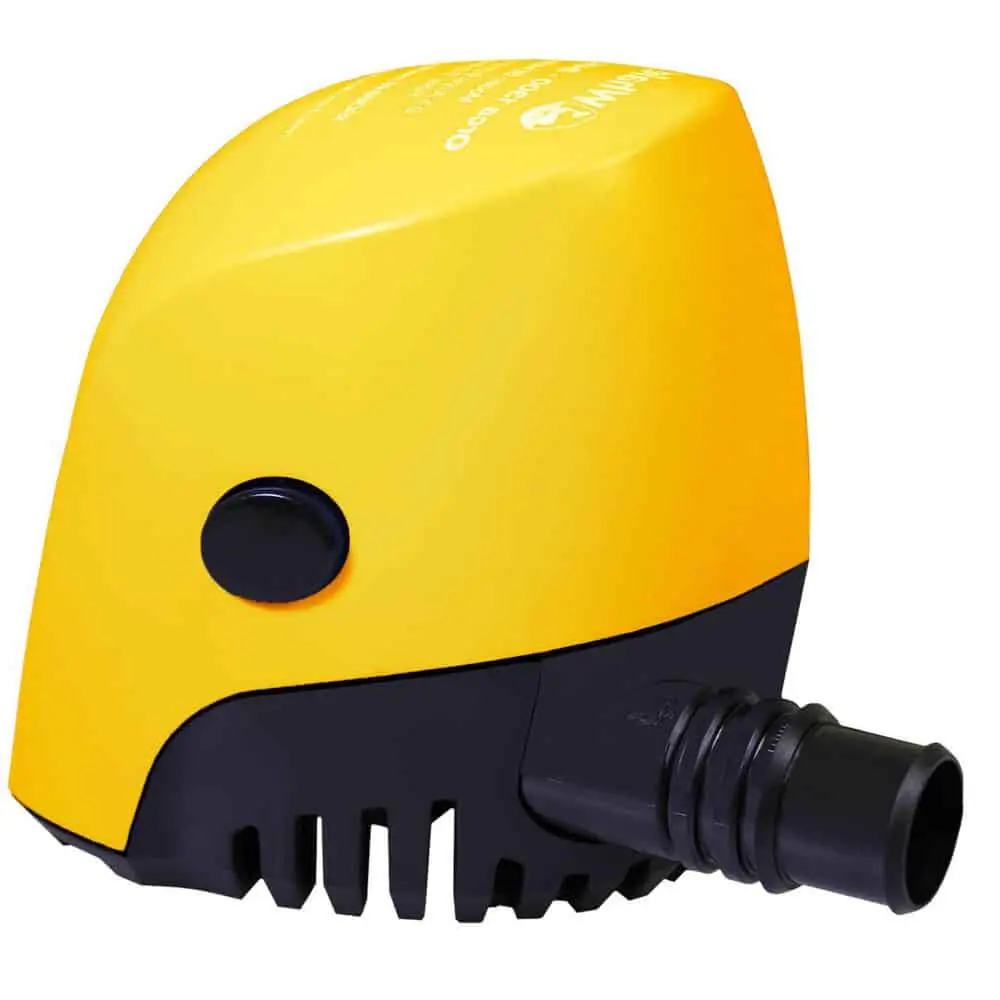

Whale Orca Auto IC 1300 Bilge Pump

Price:135.50 ex. VAT
Price: 163.96 (inc. VAT)
WHALE BE1484
Last one in stock
10 days (approx.)
+
Shipping Costs:

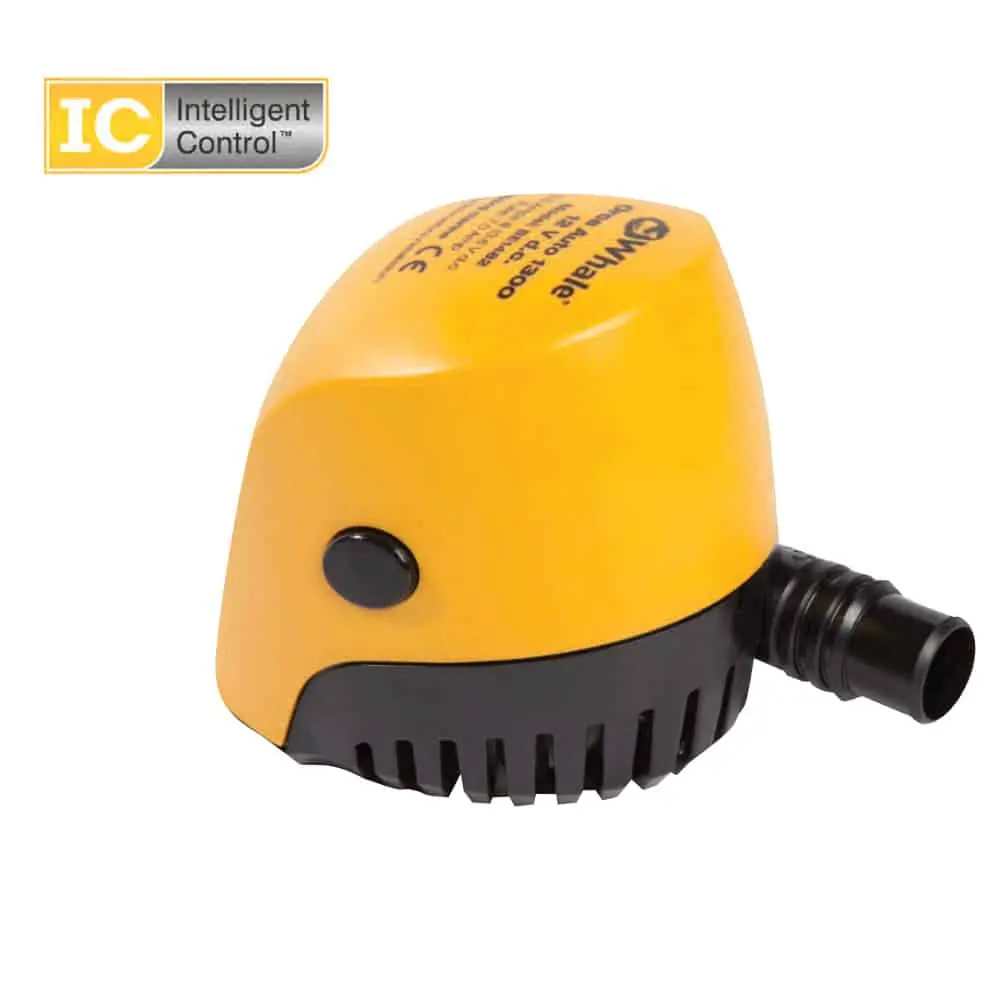

The Orca Auto 1300 is the new addition to the IC bilge pump range of intelligently controlled pumps from Whale.

Submersible, compact and powerful with performance up to 82 ltrs/min (1300 US gals/hr). The Orca Auto 1300 requires no additional float switch thanks to the built in Intelligent Control field sensor. The large footprint ensures the lowest water level detection and maximum surface area exposure to bilge water.

 Whale Orca Auto IC 1300

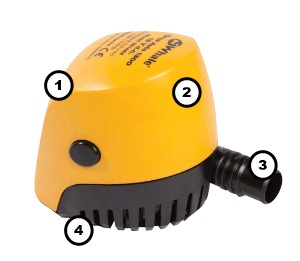

  1. Integrated electronics with built in IC Microprocessor intelligent control encapsulated for protection against water ingress.
  2. Fully protected robust housing made from fuel resistant ABS plastic.
  3. Easy to install with dual size stepped hose connector for both 25 mm (1”) or 28 mm (1 1/8”) outlet hose.
  4. Efficiency large surface area ensures maximum area exposed to bilge water

 Features:

  • High performance - 1300 US gals/hr flow rate (82 ltrs/min)
  • Simple to install, built in field sensor, no need to fit a separate bilge switch
  • Efficient large strainer with maximum surface area exposed to bilge water
  • Solid state switching, no moving parts
  • Low amp draw does not drain batteries
  • Neat fit in compact bilge areas
  • Unaffected by wave motion


Available in 12 V and 24 V versions.

Model Ref. Flow Rate
0 Metre Head
Flow Rate
1 Metre Head
Voltage

Current

Recommended
Fuse
Hose Connector Dimensions
mm
Weight
kg
Orca Auto 1300 BE1482 82 l/min
(1300 GPH)
65 l/min
(1100 GPH)
12 V 5 Amps 7.5 Amps 25 mm (1") / 28 mm (1 ⅛")
Escalonado

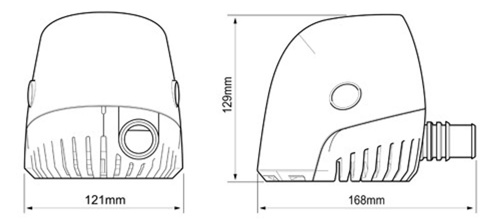

129 x 168 x 121 0.9
Orca Auto 1300 BE1484 82 l/min
(1300 GPH)
65 l/min
(1100 GPH)
24 V 2.5 Amps 5 Amps 25 mm (1") / 28 mm (1 ⅛")
Escalonado
129 x 168 x 121 0.9

 Whale Orca Auto 1300

  Product Code Orca Auto IC Availability Price
Whale Orca Auto IC 1300 Bilge Pump - bluemarinestore.com
WHALE BE1482
Orca Auto 1300 - 12 V
In stock
163.96 (inc. VAT)
135.50 (ex. VAT)
Whale Orca Auto IC 1300 Bilge Pump - bluemarinestore.com
WHALE BE1484
Orca Auto 1300 - 24 V
In stock
163.96 (inc. VAT)
135.50 (ex. VAT)

Whale Orca Auto 1300 Bilge Pump Datasheet EN (281 Kb) - Download

Whale Orca Auto 1300 Bilge Pump Manual EN FR DE IT ES SE (326 Kb) - Download
