Whale Grey IC Automatic Shower / Grey Water Pump

Price:404.13 ex. VAT
Price: 489.00 (inc. VAT)
WHALE WM8484
Last one in stock
10 days (approx.)
+
Shipping Costs:

A new concept in shower / grey water pumps, the Whale Grey IC system features an Intelligent Control high-capacity Gulper IC pump combined with a Manifold IC electronic sensor / multiple drain. Both the pump and manifold drain/ sensor are prewired with plug and play connectors. The Grey IC system does not require a tank, when the manifold detects water, the pump is activated automatically.  A great solution for confined spaces, just connect the shower drains to the Manifold IC and connect to the pump with the plug and play connectors.

See the Whale Gulley IC System for use with a single shower drain.

Gulper® valve technology is built on more than a decade of market leading pump technology. The Gulper® IC uses a large diaphragm, non choke valves and a non return valve built into the pump head. The Gulper® IC easily handles shower waste such as hair and gel without clogging even without a filter. This simple design allows trouble free service and easy maintenance. The Gulper® IC is designed to be remote mounted in a dry location up to 3 meters above the shower drain.

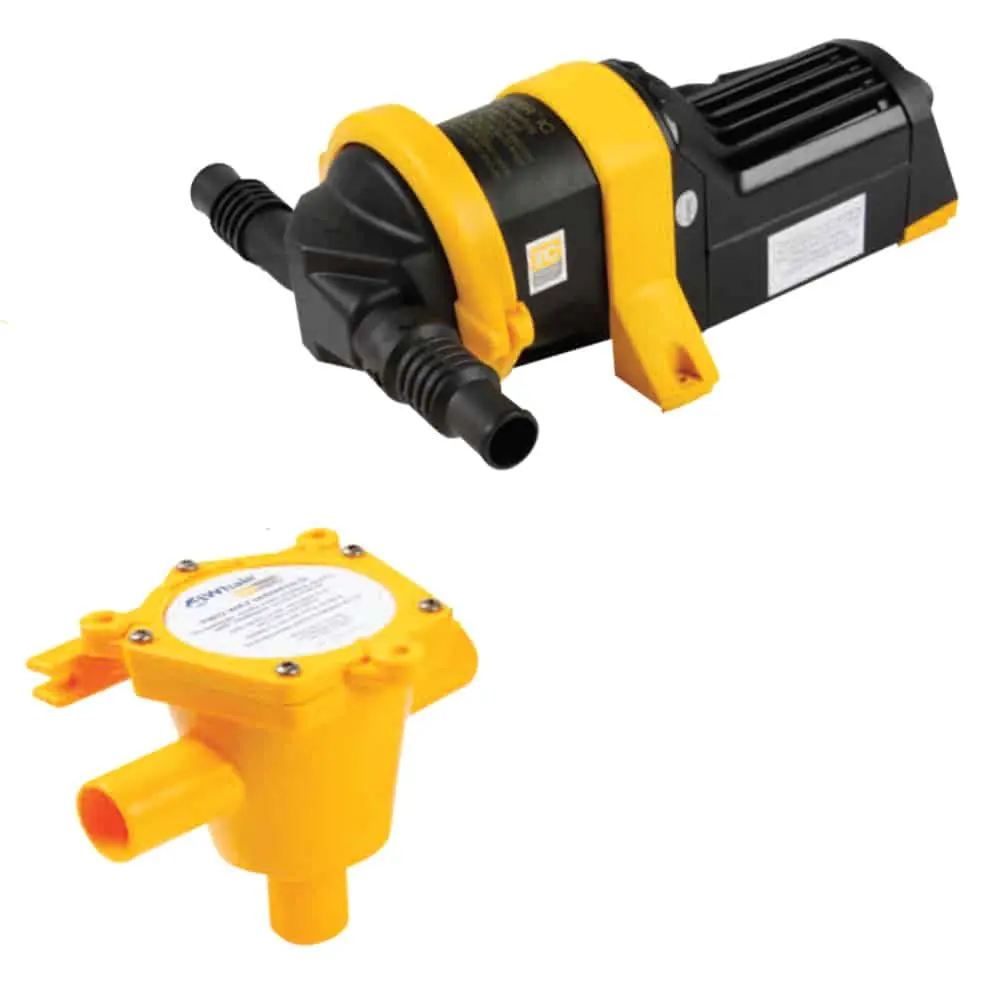

Whale Grey IC Shower Pump

  1. Whale Manifold IC electronic sensor, no grey water tank required allowing installation in small spaces and no moving parts for ultimate reliability. The Grey IC Manifold electronic sensor has a low voltage 5 V and low power 6 mA power supply, the pump power supply is not routed through the sensor and eliminates switch failure from high currents.
  2. Easy installation - The manifold sensor includes 4 metres of cable with Deutsch® quick connectors for plug and play easy installation.
  3. Gulper® Valve Technology - no clogging even without a filter and the double outlet valve ensures continuous flow.
  4. Barbed hose connectors are suitable for 19 mm (¾") or 25 mm (1") flexible hose and features a built in Tricuspid non return valve
  5. Simple clamping ring design, the pump head can be rotated through 360° for easy installation and allows simple maintenance and service.
  6. Securing strap ensures pump remains in place even in harsh marine conditions.
  7. Three feet design only needs 3 installation screws.
  8. Robust aluminium and glass-filled Nylon housing for maximum corrosion resistance and reliability.


Features:

  • Easy installation, no tank required, pre wired plug and play kit
  • Automatic control - no manual switch, automatically turns on/off as required
  • Soft start - protects the pump for long life
  • Low current controlled switching - no switch failure from high currents
  • Fast drainage - high capacity up to 19 l/min
  • Optimal drainage - built in Time delay
  • Runs dry without damage and can pump a mixture of air and water
  • Easy maintenance non choke valves, no filter to block or clean
  • Self-priming up to 3 m (10 ft)
  • Double outlet valve ensures continuous flow
  • Multi directional head - for ease of installation
  • Low power consumption


Available for 12 V or 24 V systems.

Model Ref. Voltage

Recommended
Fuse
Max. Suction
Lift
Max. Discharge
Head
Max. Combined
Lift + Discharge
Performance
l/pm - Amps
Weight
kg
Grey IC WM8284 12 V 10 Amps 3 m 3 m 4 m 17.4 - 7.5* 1.6
Grey IC WM8484 24 V 5 Amps 3 m 3 m 4 m 17.4 - 3.25* 1.6

 * Measured with 1 m suction lift and 1 m discharge head.


Whale Grey IC Dimensions



For discharge outlets below the waterline a vented anti-syphon loop should be incorporated in the system.

  Product Code Grey IC Availability Price
Whale Grey IC Automatic Shower / Grey Water Pump - bluemarinestore.com
WHALE WM8284
WM8284 - 12 V
In stock
469.00 (inc. VAT)
387.60 (ex. VAT)
Whale Grey IC Automatic Shower / Grey Water Pump - bluemarinestore.com
WHALE WM8484
WM8484 - 24V
In stock
489.00 (inc. VAT)
404.13 (ex. VAT)
WHALE AK1550
24.62 ex. VAT   29.79
Original replacement parts and service kits for the  Whale Gulper® 220 Shower / Grey Water Pump,  Whale Gulper® 320 Bilge Pump, Whale Gulper IC pumps and...
In stock


JCS HI-GRIP SS304 12
1.73 ex. VAT   2.09
JCS
HI-GRIP STAINLESS hose clips (hose clamps) by JCS High-Torque Ltd. Made entirely from 18/8 - AIS304 marine quality stainless steel and are ideal for salt...
In stock


ANCOR 1217
2.64 ex. VAT   3.19
Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46)...
In stock


HILLTOP DWA-3/1
1.07 ex. VAT   1.29
Adhesive Lined Dual Wall 3:1 Polyolefin heat shrink tubing High quality irradiation cross-linked Polyolefin, UL Approved and RoHS Compliant. Excellent...
In stock


WHALE SG1982B
76.82 ex. VAT   92.95
Whale Large Gulley IC electronic sensor / shower drain is a large shower drain with built in Intelligent Control. When the drain detects water the pump is...
In stock


Whale Gulper IC Manual EN FR DE IT ES SE FI (843 Kb) - Download

Whale Manifold IC Manual EN (280 Kb) - Download

No posts found

Write a review

A new concept in shower / grey water pumps, the Whale Grey IC system features an Intelligent Control high-capacity Gulper IC pump combined with a Manifold IC electronic sensor / multiple drain. Both the pump and manifold drain/ sensor are prewired with plug and play connectors. The Grey IC system does not require a tank, when the manifold detects water, the pump is activated automatically.  A great solution for confined spaces, just connect the shower drains to the Manifold IC and connect to the pump with the plug and play connectors.

See the Whale Gulley IC System for use with a single shower drain.

Gulper® valve technology is built on more than a decade of market leading pump technology. The Gulper® IC uses a large diaphragm, non choke valves and a non return valve built into the pump head. The Gulper® IC easily handles shower waste such as hair and gel without clogging even without a filter. This simple design allows trouble free service and easy maintenance. The Gulper® IC is designed to be remote mounted in a dry location up to 3 meters above the shower drain.

Whale Grey IC Shower Pump

  1. Whale Manifold IC electronic sensor, no grey water tank required allowing installation in small spaces and no moving parts for ultimate reliability. The Grey IC Manifold electronic sensor has a low voltage 5 V and low power 6 mA power supply, the pump power supply is not routed through the sensor and eliminates switch failure from high currents.
  2. Easy installation - The manifold sensor includes 4 metres of cable with Deutsch® quick connectors for plug and play easy installation.
  3. Gulper® Valve Technology - no clogging even without a filter and the double outlet valve ensures continuous flow.
  4. Barbed hose connectors are suitable for 19 mm (¾") or 25 mm (1") flexible hose and features a built in Tricuspid non return valve
  5. Simple clamping ring design, the pump head can be rotated through 360° for easy installation and allows simple maintenance and service.
  6. Securing strap ensures pump remains in place even in harsh marine conditions.
  7. Three feet design only needs 3 installation screws.
  8. Robust aluminium and glass-filled Nylon housing for maximum corrosion resistance and reliability.


Features:

  • Easy installation, no tank required, pre wired plug and play kit
  • Automatic control - no manual switch, automatically turns on/off as required
  • Soft start - protects the pump for long life
  • Low current controlled switching - no switch failure from high currents
  • Fast drainage - high capacity up to 19 l/min
  • Optimal drainage - built in Time delay
  • Runs dry without damage and can pump a mixture of air and water
  • Easy maintenance non choke valves, no filter to block or clean
  • Self-priming up to 3 m (10 ft)
  • Double outlet valve ensures continuous flow
  • Multi directional head - for ease of installation
  • Low power consumption


Available for 12 V or 24 V systems.

Model Ref. Voltage

Recommended
Fuse
Max. Suction
Lift
Max. Discharge
Head
Max. Combined
Lift + Discharge
Performance
l/pm - Amps
Weight
kg
Grey IC WM8284 12 V 10 Amps 3 m 3 m 4 m 17.4 - 7.5* 1.6
Grey IC WM8484 24 V 5 Amps 3 m 3 m 4 m 17.4 - 3.25* 1.6

 * Measured with 1 m suction lift and 1 m discharge head.


Whale Grey IC Dimensions



For discharge outlets below the waterline a vented anti-syphon loop should be incorporated in the system.
