Victron Energy Orion Isolated Smart DC - DC Charger

List price:171.00 ex. VAT Price:137.15 ex. VAT
Price: 165.95 (inc. VAT)
You save: €33.85 (20%)
Save 20%
VICTRON ENERGY ORI122424120
Preorder
7 days (approx.)
+
Shipping Costs:
Isolated DC to DC Smart charger/ converters with remote switching capability available for both 12v and 24v systems.

Bluetooth Smart built-in - allows wireless set-up, monitoring and control.

Fully programmable - Can be configured with one of the predetermined battery charge algorithms for DC to DC charging or configured with a fixed output as a DC to DC converter.

DC to DC converters can be used for multiple purposes on board including the following:
  • Powering 12V devices from a 24V system and vice versa.
  • Providing a stable DC output for sensitive equipment.
  • Reducing power system interference on radio and electronic equipment

Smart alternator compatibility - with an engine running detection mechanism.


Adaptive 3-stage charge algorithm: bulk – absorption – float

  • For lead acid batteries it is important that during shallow discharges the absorption time
    is kept short in order to prevent overcharging of the battery. After a deep discharge the
    absorption time is automatically increased to make sure that the battery is completely
    recharged.
  • For lithium batteries absorption time is fixed, default 2 hours.
  • Alternatively, a fixed output voltage can be chosen

Remote on-off
- a remote on/off switch or relay contact can be connected to a two-pole connector.

Short circuit proof and parallel connection - an unlimited number of units can be connected in parallel to increase output current.

High temperature protected - the output current will reduce at high ambient temperature.

Use as a Dc to DC converter  - Victron Energy Orion Smart chargers allow a wide voltage input and a stable user adjustable output making them ideal for use with sensitive DC equipment such as computers, displays, radio and electronic equipment and LEDs. Equipment such as computers are normally used with a mains power adaptor providing a constant stable DC output. These devices cannot be powered directly from on-board DC power due to the frequent large voltage changes typical onboard. A DC converter provides a stable DC output allowing their use on board. Isolated converters have no physical connection between input and output also allowing them to used to reduce electrical system interference typical on radio and electronic equipment.

Features:
Model Orion Tr Smart 220-280W Orion-Tr Smart
12/12-18

(220W)
Orion-Tr Smart
12/24-10

(240W)
Orion-Tr Smart
24/12-20

(240W)
Orion-Tr Smart
24/24-12

(280W)
Input voltage range 8-17V 16-35V
Under voltage shut down 7V 14V
Nominal output voltage 12.2V 24.2V 12.2V 24.2V
Output voltage adjust range 10-15V 20-30V 10-15V 20-30V
Output voltage tolerance +/- 0,2V
Cont. output current at nominal output voltage and 40°C 18A 10A 20A 12A
Maximum output current (10 s) at nominal output voltage 25A 15A 25A 15A
Maximum cable cross-section 16 mm² AWG6
Weight 1.3 kg
Dimensions h x w x d 130 x 186 x 70 mm

Model Orion Tr Smart 360-400W Orion-Tr Smart
12/12-30

(360W)
Orion-Tr Smart
12/24-15

(360W)
Orion-Tr Smart
24/12-30

(360W)
Orion-Tr
Smart
24/24-17
(400W)
Input voltage range 10-17V 20-35V
Under voltage shut down 7V 14V
Nominal output voltage 12.2V 24.2V 12.2V 24.2V
Output voltage adjust range 10-15V 20-30V 10-15V 20-30V
Output voltage tolerance +/- 0,2V
Cont. output current at nominal output voltage and 40°C 30A 15A 30A 17A
Maximum output current (10 s) at nominal output voltage 40A 25A 45A 25A
Maximum cable cross-section 16 mm² AWG6
Weight 1.3kg 1.8kg
Dimensions h x w x d 130 x 186 x 80 mm 130 x 86 x 70 mm
  Product Code Orion Tr Smart Availability Price
Victron Energy Orion Isolated Smart DC - DC Charger - bluemarinestore.com
VICTRON ENERGY ORI121222120

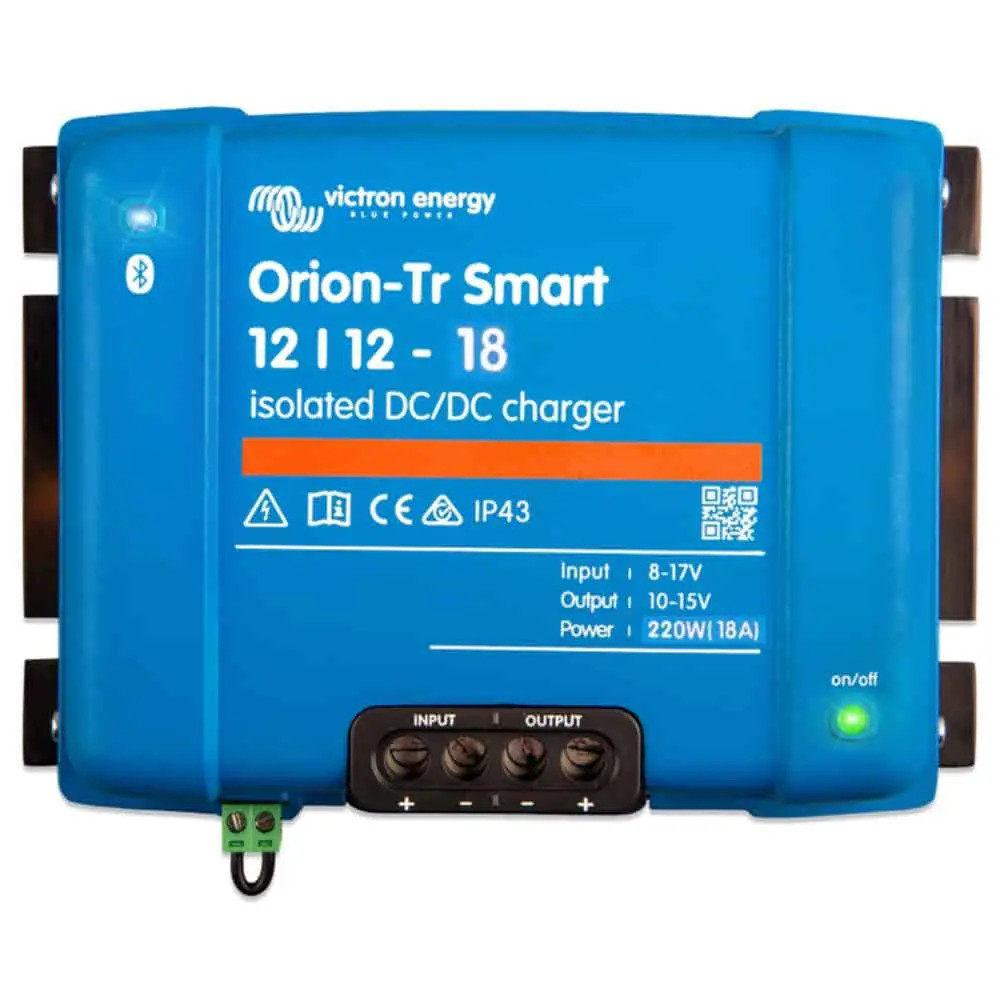

12/12-18 220W
In stock
165.95 (inc. VAT)
137.15 (ex. VAT)
Victron Energy Orion Isolated Smart DC - DC Charger - bluemarinestore.com
VICTRON ENERGY ORI122424120
12/24-10 240W
7 days
165.95 (inc. VAT)
137.15 (ex. VAT)
Victron Energy Orion Isolated Smart DC - DC Charger - bluemarinestore.com
VICTRON ENERGY ORI241224120
24/12-20 240W
In stock
165.95 (inc. VAT)
137.15 (ex. VAT)
Victron Energy Orion Isolated Smart DC - DC Charger - bluemarinestore.com
VICTRON ENERGY ORI242428120
24/24-12 280W
In stock
165.95 (inc. VAT)
137.15 (ex. VAT)
Victron Energy Orion Isolated Smart DC - DC Charger - bluemarinestore.com
VICTRON ENERGY ORI121236120

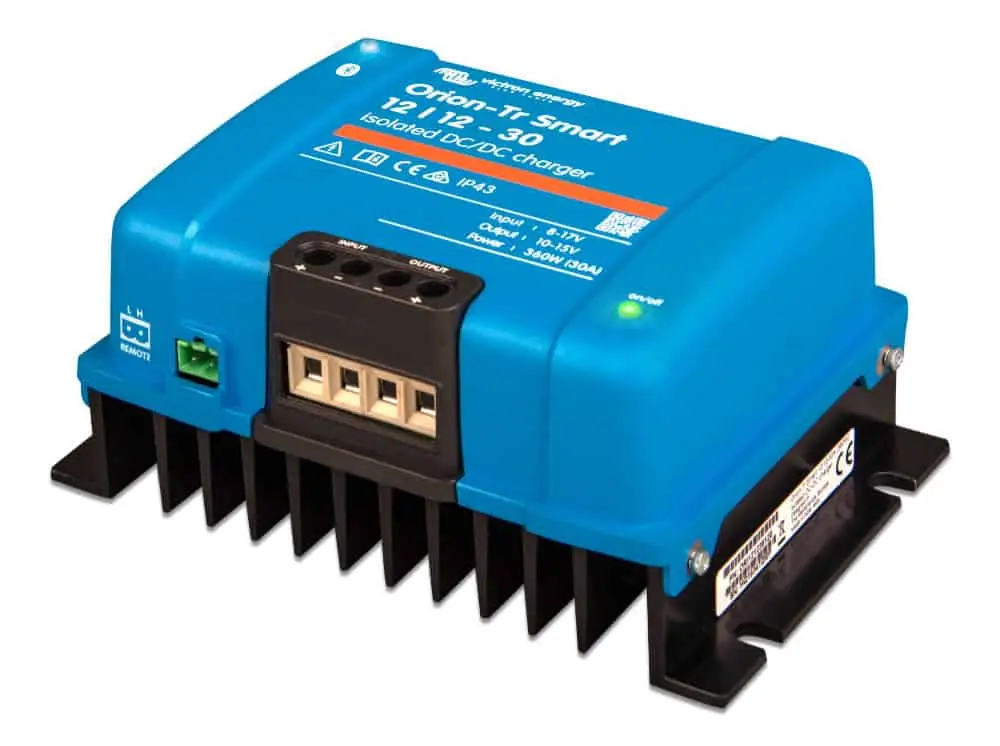

12/12-30 360W
In stock
253.95 (inc. VAT)
209.88 (ex. VAT)
Victron Energy Orion Isolated Smart DC - DC Charger - bluemarinestore.com
VICTRON ENERGY ORI122436120

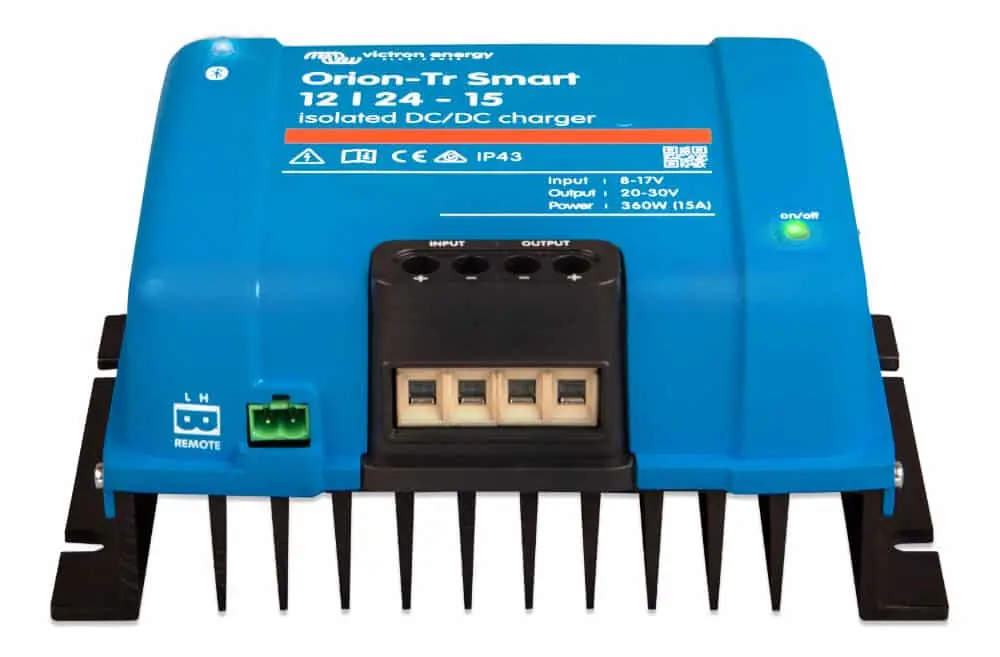

12/24-15 360W
7 days
253.95 (inc. VAT)
209.88 (ex. VAT)
Victron Energy Orion Isolated Smart DC - DC Charger - bluemarinestore.com
VICTRON ENERGY ORI241236120
24/12-30 360W
7 days
253.95 (inc. VAT)
209.88 (ex. VAT)
Victron Energy Orion Isolated Smart DC - DC Charger - bluemarinestore.com
VICTRON ENERGY ORI242440120

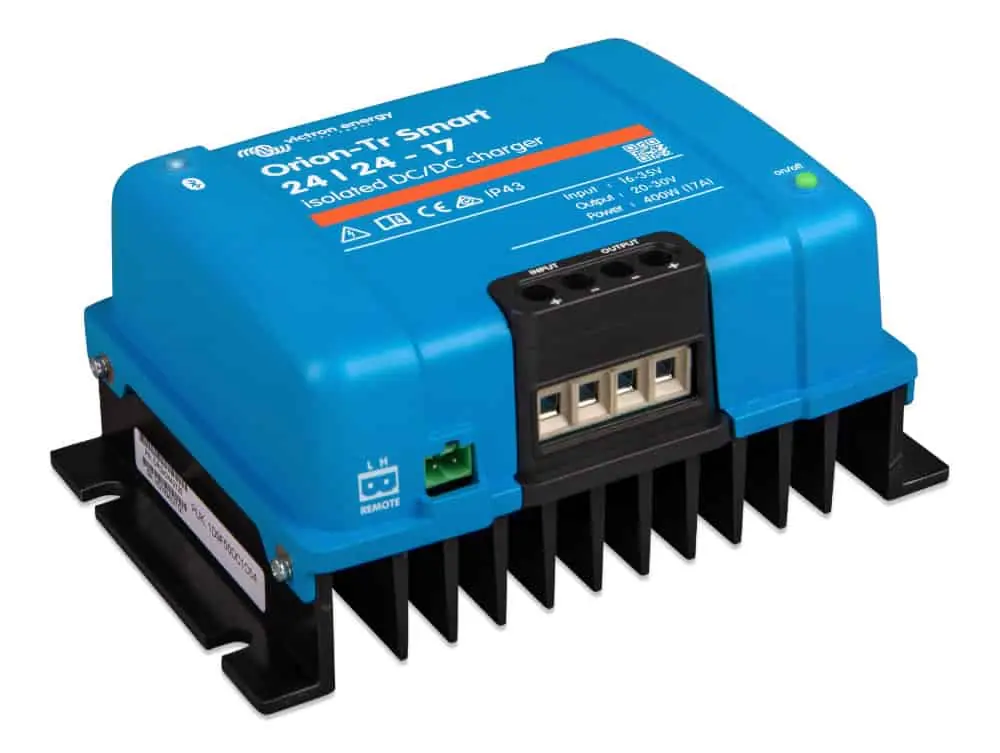

24/24-17 400W
7 days
253.95 (inc. VAT)
209.88 (ex. VAT)

Victron Energy Orion Smart DC-DC Charger Datasheet EN (131 Kb) - Download

Victron Energy Orion Smart DC-DC Charger Datasheet ES (317 Kb) - Download

Victron Energy Orion Smart DC-DC Charger Manual EN NL FR DE ES SE IT (1,412 Kb) - Download
