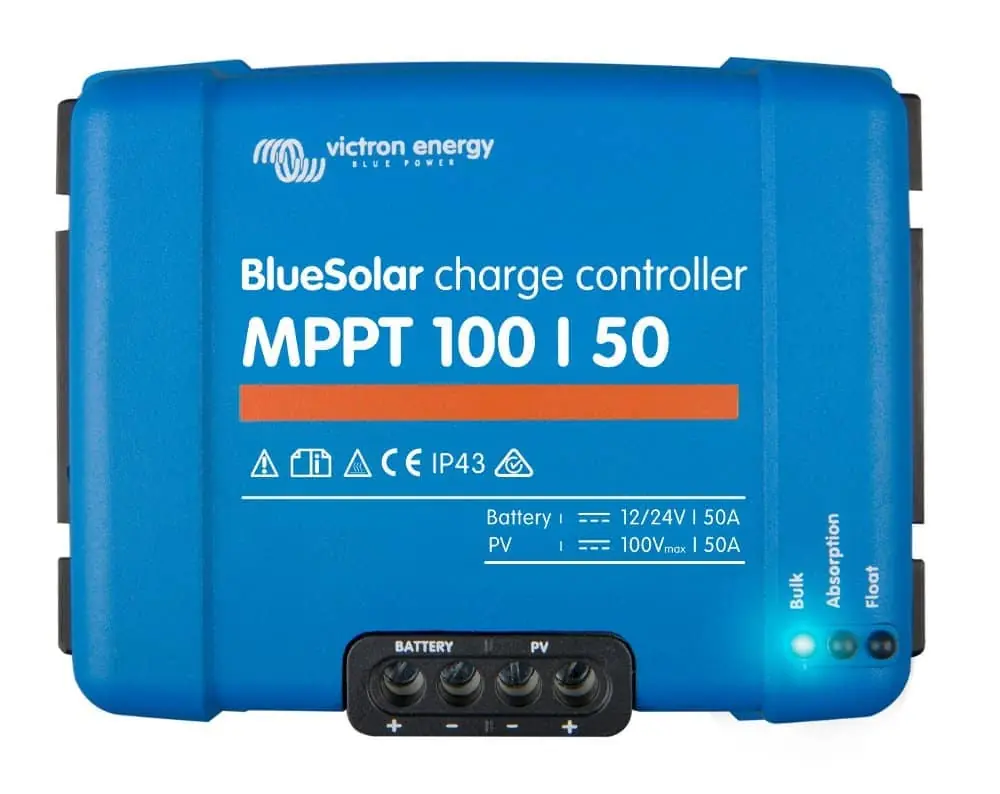

Victron Energy BlueSolar MPPT 100 Series Solar Regulators

List price:179.00 ex. VAT Price:143.76 ex. VAT
Price: 173.95 (inc. VAT)
You save: €35.24 (20%)
Save 20%
VICTRON ENERGY SCC020050200
Preorder
3 days (approx.)
+
Shipping Costs:

MPPT solar regulator from Victron Energy with up to 50 amps output for larger installations.

Ultra-fast Maximum Power Point Tracking (MPPT) - produces up to 30% more power compared to a PWM controller and up to 10% more power compared to slower MPPT controllers especially during cloudy days and fast changing conditions, when light intensity is changing continuously.

VictronConnect App

Outstanding conversion efficiency - no cooling fan to reduce output allows maximum efficiency to exceed 98% with full output current up to 40°C

Flexible charge algorithm - a built in rotary switch allows easy selection of the eight pre-programmed charging algorithms. The charge settings are also fully programmable allowing optimum charging for almost any installation.

Extensive electronic protection - fail safe installation and peace of mind when left unattended with over-temperature protection and power derating when temperature is high as well PV short circuit protection, PV reverse polarity protection and PV reverse current protection.

Built in temperature sensor - a simple solution to avoid running a battery temperature sensor. The sensor compensates absorption and float charge voltage for temperature and further protects the battery bank.

Real-time data display options - With built in VE Direct connectivity the 100 series regulators can connect to the Victron Energy Control and Display panels and with the optional Bluetooth smart dongle all system parameters are easily displayed on Apple and Android smartphones and tablets with the free App.

BlueSolar 100 Series MPPT Regulators BlueSolar MPPT 100/30 BlueSolar MPPT 100/50
Ref. SCC020030200 SCC020050200
Battery Voltage 12/24V Auto Select

Max charge current 30 Amps 50 Amps
Max Solar Panel Power 12V Systems 440W 700W
Max Solar Panel Power 24V Systems 880W 1400W
Max Solar Panel Voltage OC 100V 100V
Max. Solar Panel current IC 30 Amps 50 Amps
Power Terminals 13 mm² / AWG6
Dimensions 130 x 186 x 70 mm
Weight 1.3 kg

  Product Code Model Availability Price
Victron Energy BlueSolar MPPT 100 Series Solar Regulators - bluemarinestore.com
VICTRON ENERGY SCC020030200
BlueSolar MPPT 100/30
3 days
115.95 (inc. VAT)
95.83 (ex. VAT)
Victron Energy BlueSolar MPPT 100 Series Solar Regulators - bluemarinestore.com
VICTRON ENERGY SCC020050200
BlueSolar MPPT 100/50
3 days
173.95 (inc. VAT)
143.76 (ex. VAT)
VICTRON ENERGY SCC900500000
48.76 ex. VAT   59.00
Quickly setup Victron Energy MPPT solar regulators and display solar system information. The Victron Energy MPPT Control shares the same design as the...
In stock
+

VICTRON ENERGY ASS030530203
12.06 ex. VAT   14.59
The VE.Direct cable connects compatible MPPT solar regulators to the Victron Energy MPPT control panel. Available in different lengths with both straight...
In stock


VICTRON ENERGY ASS030536011
33.79 ex. VAT   40.89
Instantly update compatible non Bluetooth Victron Energy products to Bluetooth connectivity. Simply plug in the dongle to the compatible equipment. Install...
In stock
+

Data Sheet BlueSolar MPPT 100/30 & 100/50 EN (188 Kb) - Download

Manual de Usuario BlueSolar MPPT 100/30 EN NL FR DE ES SE (572 Kb) - Download

Manual de Usuario BlueSolar MPPT 100/50 EN NL FR DE ES SE (541 Kb) - Download
