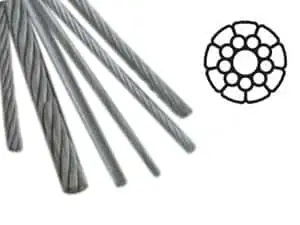

Stainless Steel AISI 316 (A4) 1x19 Compact Strand
Stainless steel AISI 316 (A4) 1x19 Compact Strand rigging wire. By using individual cables of different sizes and shapes, compact strand rigging wire achieves more strength for the same diameter and also has a smoother surface for less chafe on sails and lines, the slight disadvantage is a small increase in weight compared to 1x19 conventional wire.
Swaged terminals include professional swaging in the price.
Just send us your dimensions and get your new rigging made to measure. Alternatively for easy and cost effective rigging replacement we recommend ordering the required cable length plus 1 metre (approx.) with a swaged terminal on the upper end (mast fitting). The lower end can then be fitted with a swageless terminal allowing exact measurement and final fitting onboard.
Sold by the metre.
| Diameter | Break Load | Weight per metre |
| 4 mm | 1780 kg | 0.088 kg |
| 5 mm | 2503 kg | 0.135 kg |
| 6 mm | 3641 kg | 0.194 kg |
| 7 mm | 5036 kg | 0.260 kg |
| 8 mm | 6308 kg | 0.345 kg |
| 10 mm | 10021 kg | 0.540 kg |
| 12 mm | 14769 kg | 0.807 kg |
| Product Code | Diameter / Breakload | Availability | Price | |
|---|---|---|---|---|
|
STAINLESS 1X19 COMPACT 316 4MM
|
3 days
|
€3.94 (inc. VAT)
€3.26 (ex. VAT) |
|
|
STAINLESS 1X19 COMPACT 316 5MM
|
3 days
|
€6.05 (inc. VAT)
€5.00 (ex. VAT) |
|
|
STAINLESS 1X19 COMPACT 316 6MM
|
3 days
|
€7.19 (inc. VAT)
€5.94 (ex. VAT) |
|
|
STAINLESS 1X19 COMPACT 316 7MM
|
3 days
|
€10.45 (inc. VAT)
€8.64 (ex. VAT) |
|
|
STAINLESS 1X19 COMPACT 316 8MM
|
3 days
|
€12.50 (inc. VAT)
€10.33 (ex. VAT) |
|
|
STAINLESS 1X19 COMPACT 316 10MM
|
3 days
|
€18.69 (inc. VAT)
€15.45 (ex. VAT) |
|
|
STAINLESS 1X19 COMPACT 316 12MM
|
7 days
|
€25.95 (inc. VAT)
€21.45 (ex. VAT) |
