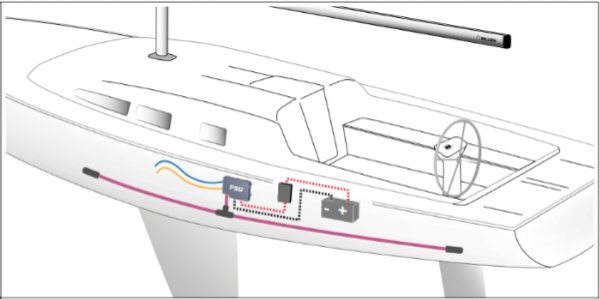

The Selden PSU start kit includes the components required for a basic SEL-Bus network as well as a Power Supply Unit which converts your boats 12 V or 24 V power supply to 48 V as required for the Selden E40i Electric Winch, Selden SMF Synchronised Main Furling, Selded Electric Furlex and Selden CXe45 Electric Code 0 Furler. Only 1 PSU is required per boat, simplifying future additions or upgrades.

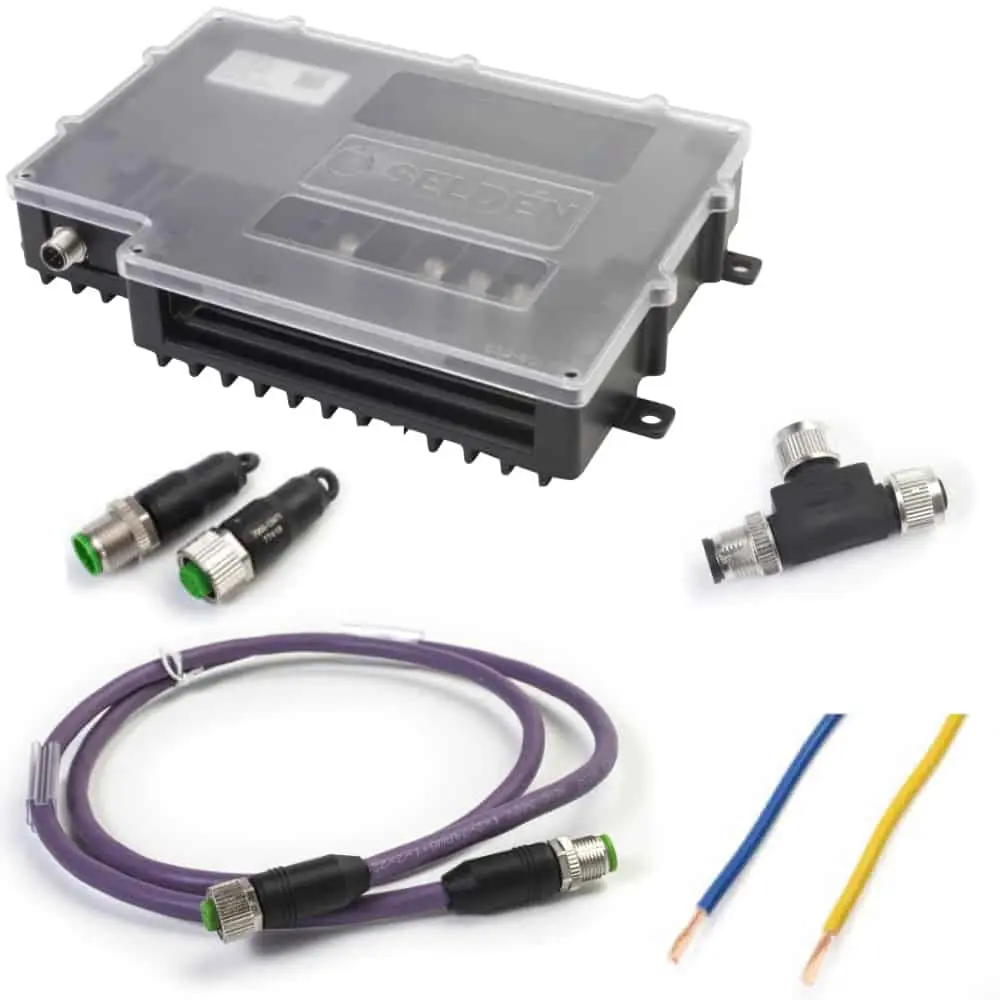

The PSU Start Kit includes the following components:

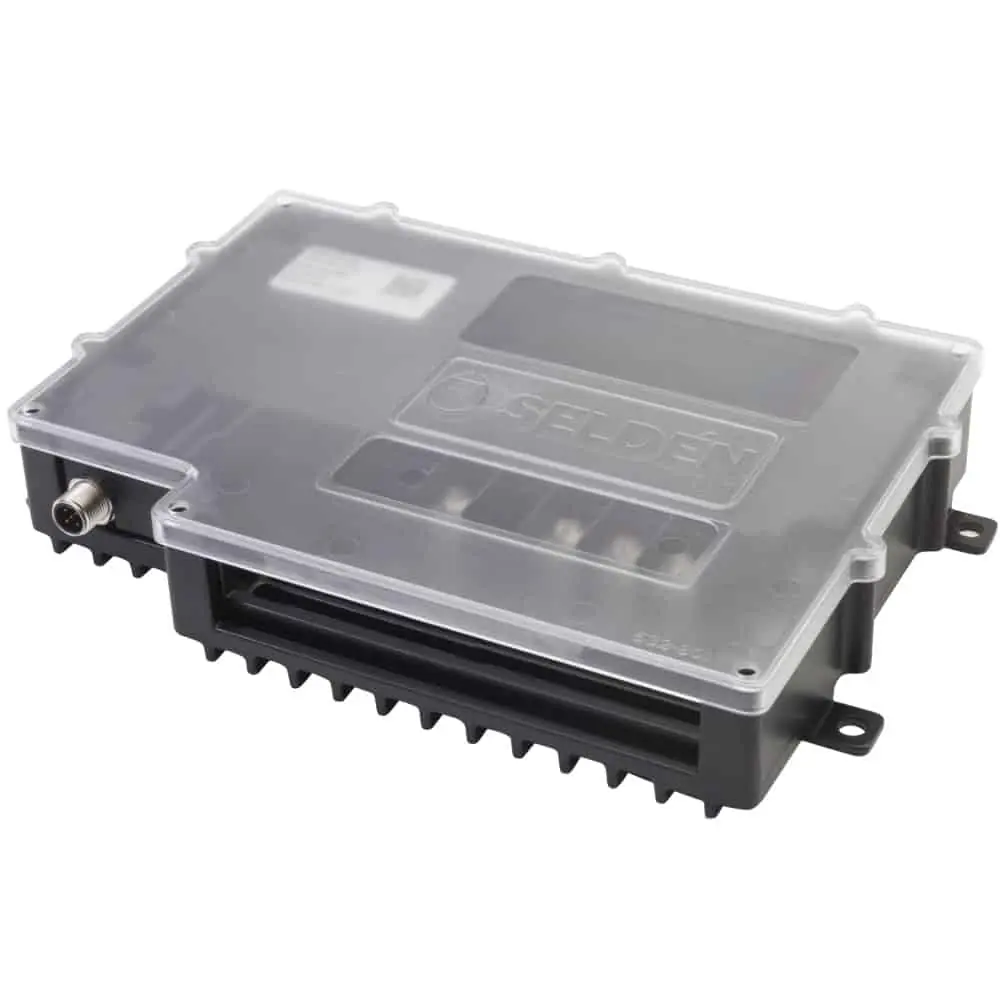

- 1 x 532-800-10 PSU Power Supply Unit
- 1 x 532-488 12 V 100 A (532-492 24 V 60 A) Main Switch/Circuit Breaker
- 1 x 532-835 SEL-Bus Terminal Female
- 1 x 532-836 SEL-Bus Terminal Male
- 1 x 532-839 SEL-Bus T-Connector (Female/Female/Male)
- 1 x 531-101 SEL-Bus cable (Female/Male) 0.3 m
- 1 x 531-104 SEL-Bus cable (Female/Male) 5.0 m
- 2 x 9 531-048-10 6 mm² Power Cable Pack
The SEL-Bus network can easily be extended if required for additional components in the future.
Available for 12 V or 24 V installations.
