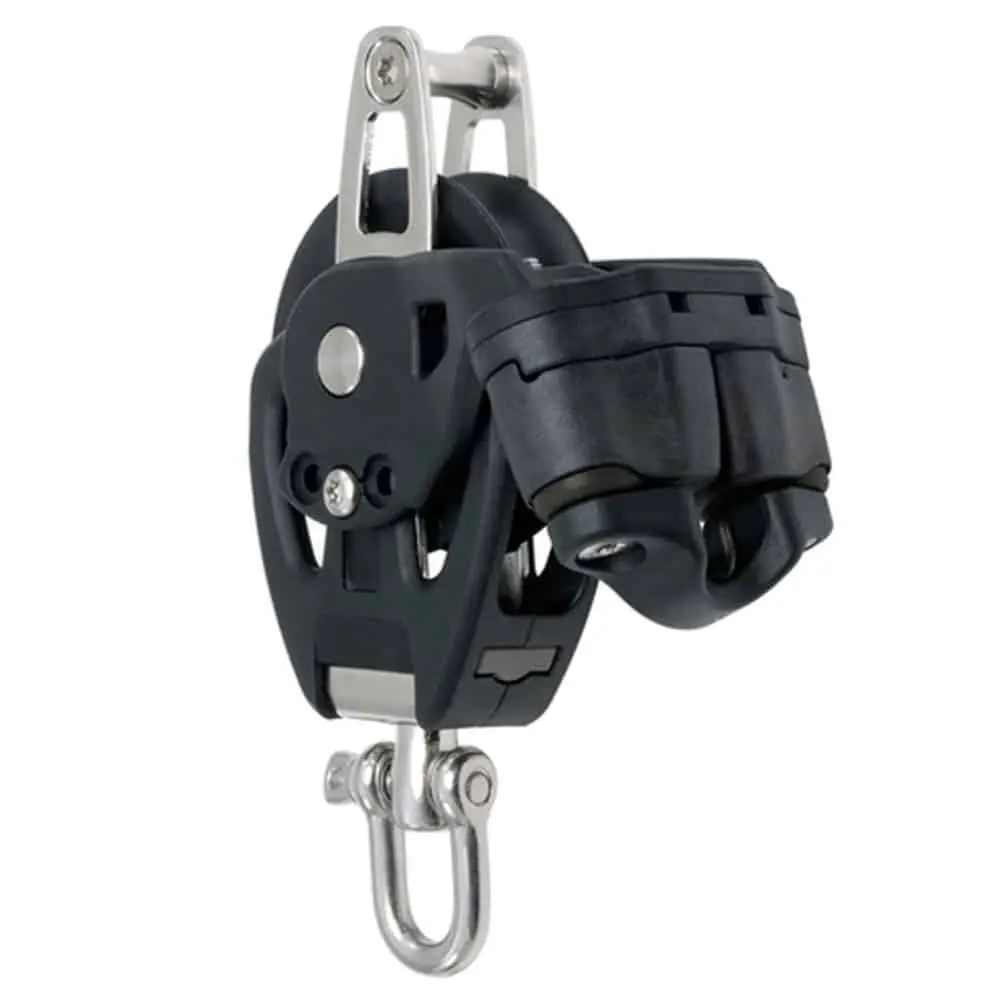

Selden Plain Bearing Block PBB Single Swivel with Becket & Cam

List price:68.13 ex. VAT Price:64.42 ex. VAT
Price: 77.95 (inc. VAT)
You save: €3.71 (5%)
Save 5%
SELDEN 405-001-04
2 in stock
3 days (approx.)
+
Shipping Costs:

Selden Plain Bearing Block

Great performance at a great price and perfect for less dynamic applications where heavy loads are expected. Seldén Plain Bearing Blocks PBB are ideal for boom vangs, tackles, halyard blocks, spinnaker sheet and guys, preventers and cascades.

Features:

  1. Stainless steel AISI 316 shackle. Size 70 mm and 80 mm feature an oversized shackle pin for even more strength
  2. Stainless steel AISI 316 shackle shaft
  3. Stainless steel AISI 316 side strap for maximum strength and long service life
  4. Unique sliding lock/unlock mechanism for size 50 mm - 80 mm. The 100 mm block features a set screw locking system.
  5. Torsional rigid side plates manufactured from glass fibre reinforced polymer to prevent jamming. The 100 mm block features machined, black anodised side plates
  6. Stainless steel AISI 316 bearing pin
  7. Strong polymer sheave on sizes 50 mm and 60 mm, glass fibre reinforced sheave with polymer bushing on sizes 70 mm and 80 mm and on the 100 mm block an anodised aluminium sheave with a polymer bushing and two axial Delrin® bearings to stabilize the sheave when the rope enters or exits the block with an angle.

Available  in 2 sizes with 50 and 60 mm sheave diameters.



Sheave Size
mm
Ref. Max. Line Size
mm
Shackle / Shackle Pin
mm
Working Load
kg
Breaking Load
kg
Weight
g
50 405-001-04 12 5 /5 240* 480* 212
60 406-001-04 14 6/6 240* 480* 308

* Working load & breaking load are limited by the cam.

  Product Code Seldén PBB Size Availability Price
Selden Plain Bearing Block PBB Single Swivel with Becket & Cam - bluemarinestore.com
SELDEN 405-001-04
50 mm
In stock
77.95 (inc. VAT)
64.42 (ex. VAT)
Selden Plain Bearing Block PBB Single Swivel with Becket & Cam - bluemarinestore.com
SELDEN 406-001-04
60 mm
In stock
83.95 (inc. VAT)
69.38 (ex. VAT)
