Selden CX Code Zero Furler

List price:572.03 ex. VAT Price:536.36 ex. VAT
Price: 649.00 (inc. VAT)
You save: €35.67 (6%)
Save 6%
SELDEN 545-010-10
Preorder
7 days (approx.)
+
Shipping Costs:

The Seldén CX is a furling system for code zero sails.

Designed for quick setup and easy deployment, an essential feature for sails that are not used permanently. The Selden CX furler makes sail handling easy, quickly add power to the boat and keep sailing in light wind conditions.

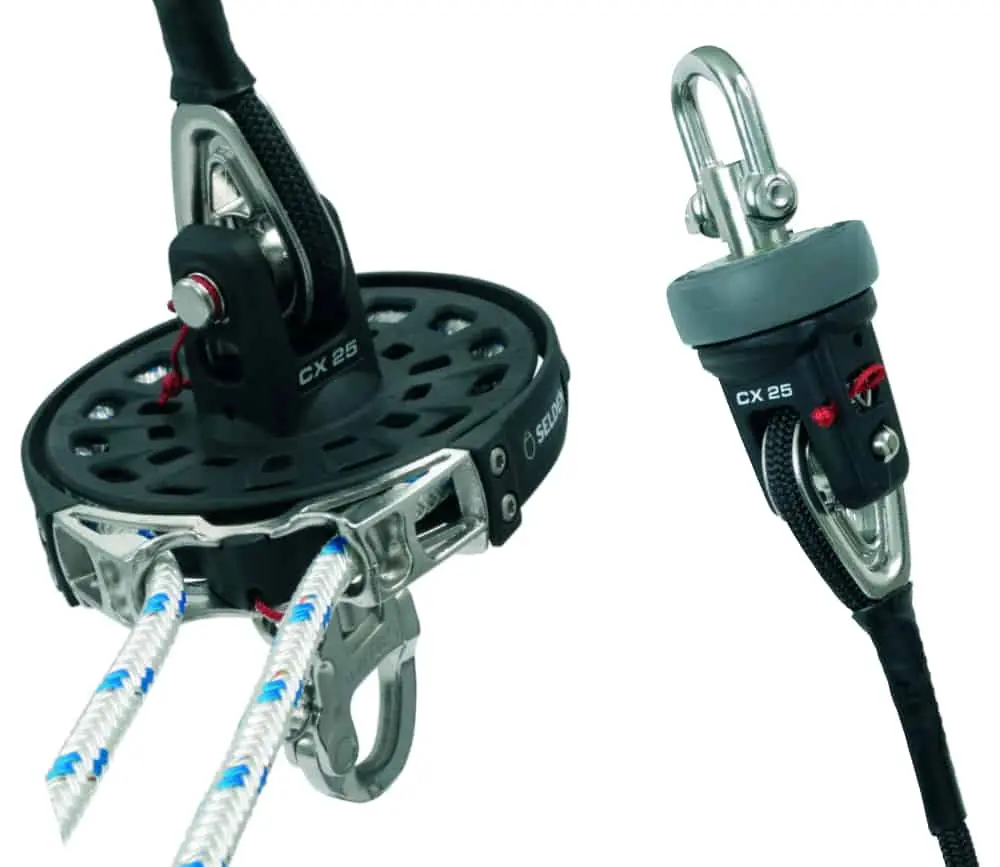

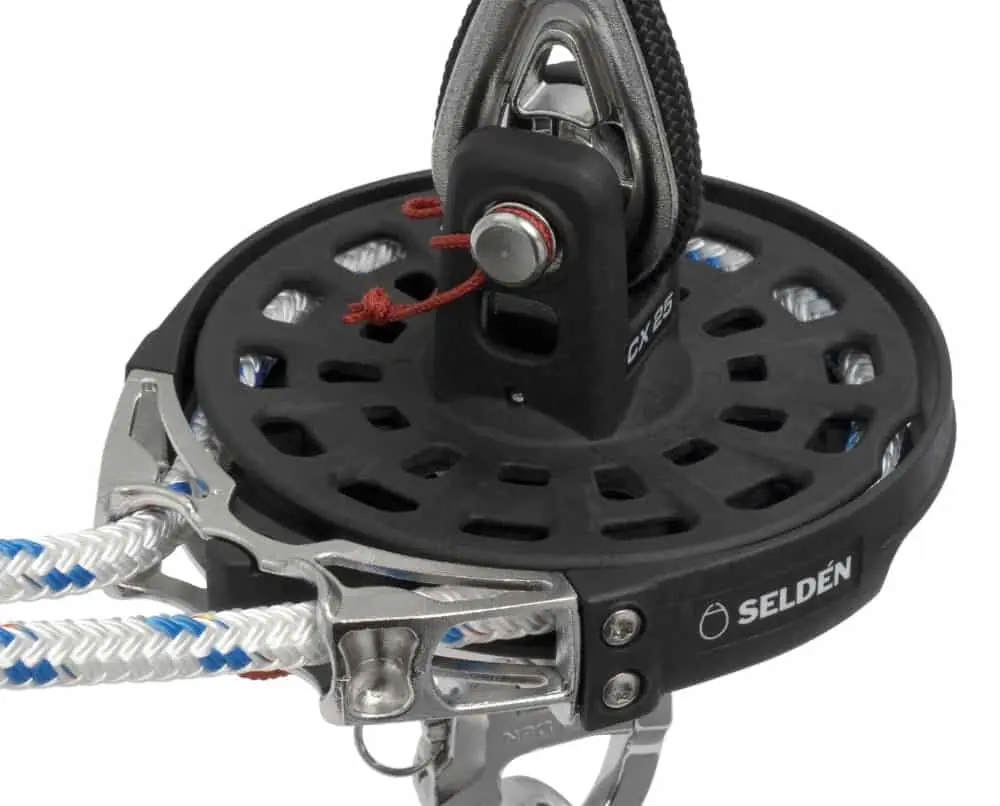

It consists of a line driver drum and a top halyard swivel. The AT-cable (not included) is integrated in the luff of the sail with thimbles at each end using Seldén cable clamps. The thimbles are easily attached to the drum and halyard swivel with a spring loaded captive snap lock clevis pin, allowing different sails to be used with a single furling system, or stowed below decks without removing the drum and continuous line from the stanchions. A dedicated 2:1 purchase halyard is recommended to obtain the required luff tension and to reduce the load on the halyard sheave. The drum and the furling line can be permanently mounted to the bow and along the stanchions.

Add a CX-GX Adapter for an all in one solution, one furling drum for both your Code Zero and Asymmetric Spinnaker / Gennaker.

Selden GX Furler

High strength duplex stainless steel

All structural parts are made of high strength duplex stainless steel, which has 50% greater breaking load than 316 stainless steel.

Composite parts are glass-fibre/PA for strength and low weight.

Features:



  1. Sealed steel bearings
  2. Rubber fender prevents damage to the mast
  3. The most rigid cable on the market, three times more rigid than the second best ensures easy furling (not included)
  4. Quick release stainless pins
  5. Impact resistant composite cover keeps the line captive and prevents damage to the boat during handling
  6. Tried and tested line driver with metal teeth provides ample grip on the furling line
  7. Narrow line drive fitting leads the line into the driver and ensures good grip.
  8. Snap shackle included for easy handling



A continuous control line can be led back to the cockpit or left short for handling from the foredeck depending on personal preferences and boat design, we offer an Endless Furling Line Splice so lines can be made to measure. See the Parts and Accessories tab for further details.

The Selden CX Furler includes the top halyard swivel and furling drum with snap shackle.

See the Parts & Accessories tab for Selden AT Anti Torsion cable, continuous furling lines, double guide blocks and double cam blocks.

Model  Kit Ref.
(Halyard Swivel & Furling Drum)
Drum Size
Ø mm
Max Working
Load kN
Max Suggested
Sail Area M2
Approx.
Displacement
tonnes
CX10 545-010-10 105 10 50 5
CX15 545-100-10 120 15 80 7.7
CX25 545-200-10 150 25 115 14
CX45 545-433-10 190 45 200 28



  Product Code Seldén CX Model Availability Price
Selden CX Code Zero Furler - bluemarinestore.com
SELDEN 545-010-10
CX 10
7 days
649.00 (inc. VAT)
536.36 (ex. VAT)
Selden CX Code Zero Furler - bluemarinestore.com
SELDEN 545-100-10
CX 15
7 days
999.00 (inc. VAT)
825.62 (ex. VAT)
Selden CX Code Zero Furler - bluemarinestore.com
SELDEN 545-200-10
CX 25
7 days
1,169.01 (inc. VAT)
966.12 (ex. VAT)
Selden CX Code Zero Furler - bluemarinestore.com
SELDEN 545-433-10
CX 45
7 days
2,269.00 (inc. VAT)
1,875.21 (ex. VAT)
SELDEN 613-020-01
146.24 ex. VAT   176.95
Seldén Anti Torsion AT Cable for use with Selden GX and CX continuous line furlers and CX-GX Adapters. Seldén provide the most rigid cable on the market,...
7 days


GLEISTEIN GG289080215
1.07 ex. VAT   1.29
Universal line with low/medium elasticity - 2% at 10% break load and only 7% at 50% break load. Long lasting and flexible universal line at an...
3 days


Minimum quantity: 5.


TASMANIA ENDLESS SPLICE 8MM
18.01 ex. VAT   21.79
Made to measure splice for endless furling lines as required for a symmetric spinnaker top down furlers or code zero furlers. Available for Gleistein...
In stock


SELDEN 405-001-40
114.83 ex. VAT   138.94
Part of the Selden Plain Bearing Block PBB range, the Twin Cam Furling line block is a perfect solution for endless furling lines typically used with...
In stock


SELDEN 480-501-01
48.72 ex. VAT   58.95
Nominated for the prestigious Dame award, Seldén Double Fairlead consist of a composite body designed to fit a 25 mm or 30 mm stanchion and a spring loaded...
In stock
+

Selden GX & CX Furlers (1,570 Kb) - Download

Selden CX10 Manual 597-023-E (729 Kb) - Download

Selden CX15 Manual 597-001-E (528 Kb) - Download

Selden CX25 Manual 595-731-E (519 Kb) - Download

Selden CX45 Manual 597-209-E (523 Kb) - Download
