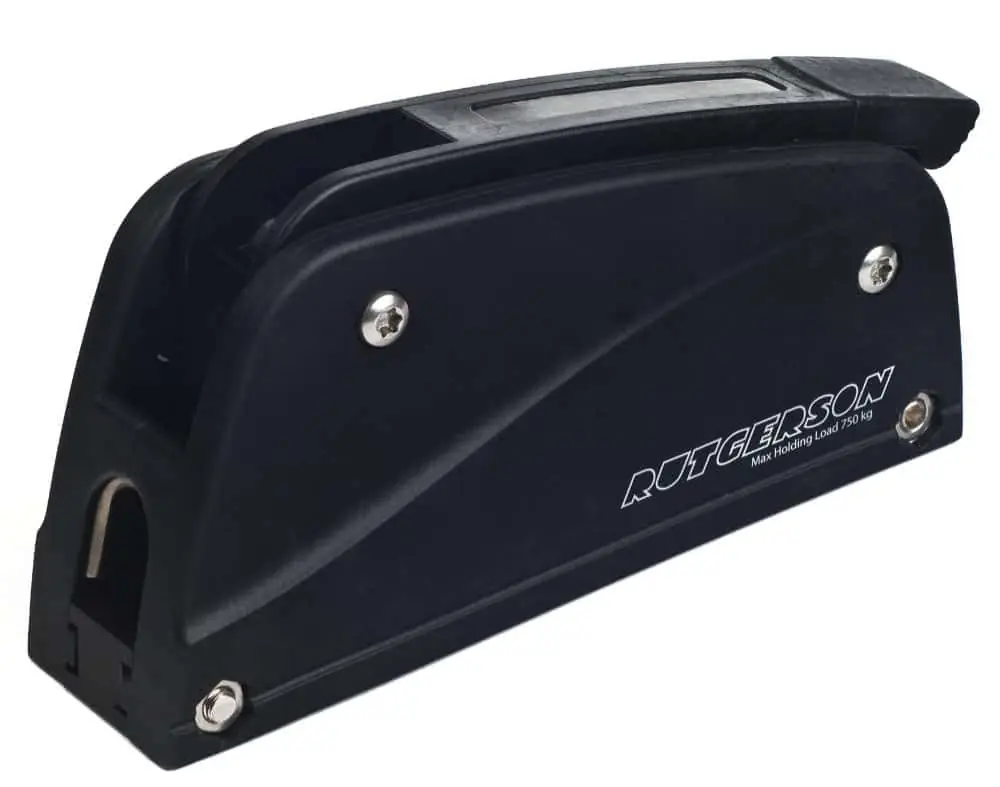

Rutgersen RC75 Rope Clutch
Strong anodised aluminium and composite rope clutch with an innovative design allowing easy installation.
Available in two versions, the RC75X optimized for 8-12mm lines and the RC75S, a version for high performance 4-8mm lines.
Both versions are available in single, double, triple and quintuple clutches allowing several lines to be used by a single winch. An integrated low-friction sheave allows lines to run smoothly and protect them from wear.
The RC75X can be easily converted to the RC75S by simply changing the cam, available as a spare part. See the Parts & Accessories tab.
Both the RC75X and the RC75S feature an innovative design. The high strength composite housing slides off the anodized aluminum base allowing easier installation with either standard flush head bolts or hex bolts. The design is also perfect for use with endless lines. See the user manual in the Attachments & Downloads tab for more information.

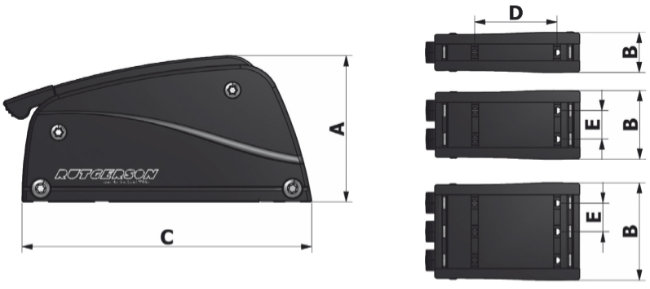

| Model | Version | Line size | Ref. | Height (A)mm |
Width (B)mm |
Length (C)mm |
Hole Spacing (D - E)mm |
Bolts | Max. Holding Load kg |
Weight kg |
| Single | RX75X | 8-12 | S600701 | 70 | 39 | 139 | 79 | M6 | 750 | 0.352 |
| Single | RX75S | 4-8 | S600711 | 70 | 39 | 139 | 79 | M6 | 750 | 0.352 |
| Double | RX75X | 8-12 | S600702 | 70 | 66 | 139 | 79 - 27.5 | M6 | 750 | 0.618 |
| Double | RX75S | 4-8 | S600712 | 70 | 66 | 139 | 79 - 27.5 | M6 | 750 | 0.618 |
| Triple | RX75X | 8-12 | S600703 | 70 | 94 | 139 | 79 - 27.5 | M6 | 750 | 0.894 |
| Triple | RX75S | 4-8 | S600713 | 70 | 94 | 139 | 79 - 27.5 | M6 | 750 | 0.894 |
| Quintuple | RX75X | 8-12 | S600705 | 70 | 94 | 139 | 79 - 27.5 | M6 | 750 | 1.400 |
| Quintuple | RX75S | 4-8 | S600715 | 70 | 66 | 139 | 79 - 27.5 | M6 | 750 | 1.400 |
Note: Max holding load depends on line size.
| Product Code | RX75 Line Size | RX75 Model | Availability | Price | |
|---|---|---|---|---|---|
|
RUTGERSEN S600701
|
In stock
|
€102.95 (inc. VAT)
€85.08 (ex. VAT) |
||
|
RUTGERSEN S600702
|
In stock
|
€196.95 (inc. VAT)
€162.77 (ex. VAT) |
||
|
RUTGERSEN S600703
|
3 days
|
€296.95 (inc. VAT)
€245.41 (ex. VAT) |
||
|
RUTGERSEN S600705
|
14 days
|
€499.00 (inc. VAT)
€412.40 (ex. VAT) |
||
|
RUTGERSEN S600711
|
7 days
|
€102.95 (inc. VAT)
€85.08 (ex. VAT) |
||
|
RUTGERSEN S600712
|
7 days
|
€196.95 (inc. VAT)
€162.77 (ex. VAT) |
||
|
RUTGERSEN S600713
|
7 days
|
€296.95 (inc. VAT)
€245.41 (ex. VAT) |
||
|
RUTGERSEN S600715
|
14 days
|
€499.00 (inc. VAT)
€412.40 (ex. VAT) |
