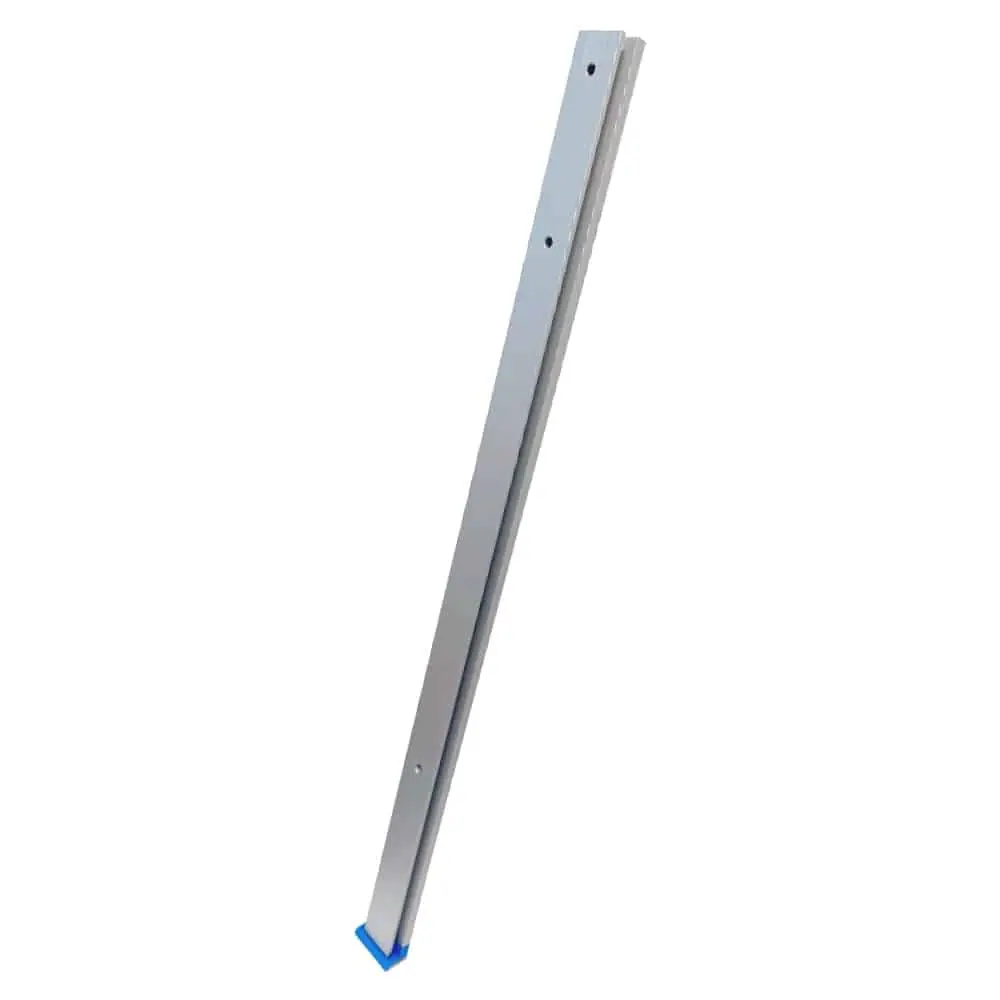

Original anodized aluminium Long Rail Kit for the Remoran™ Wave 3 hydrogenerator.

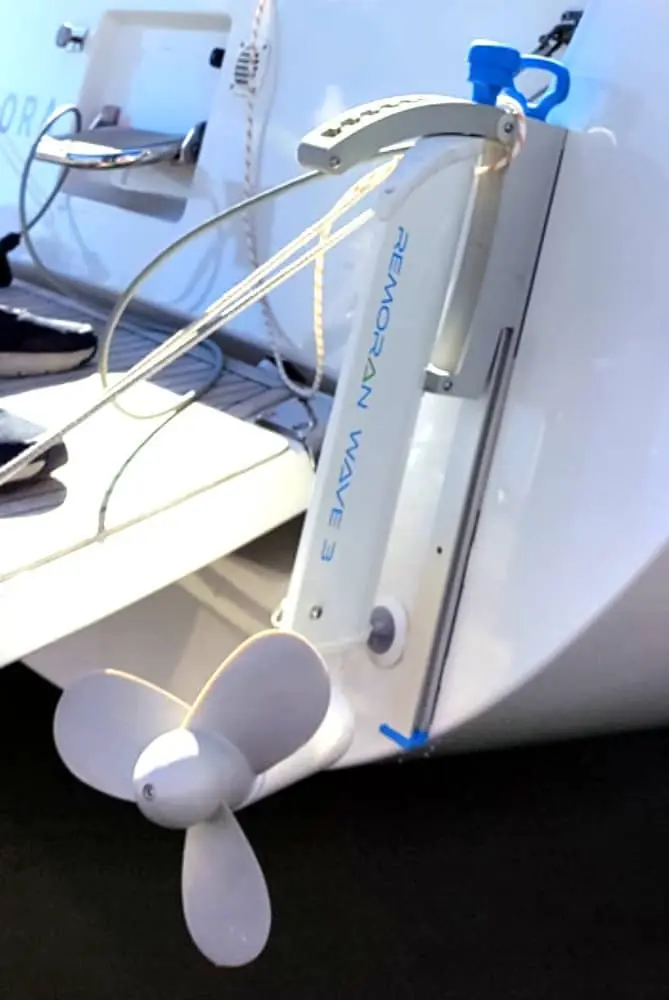

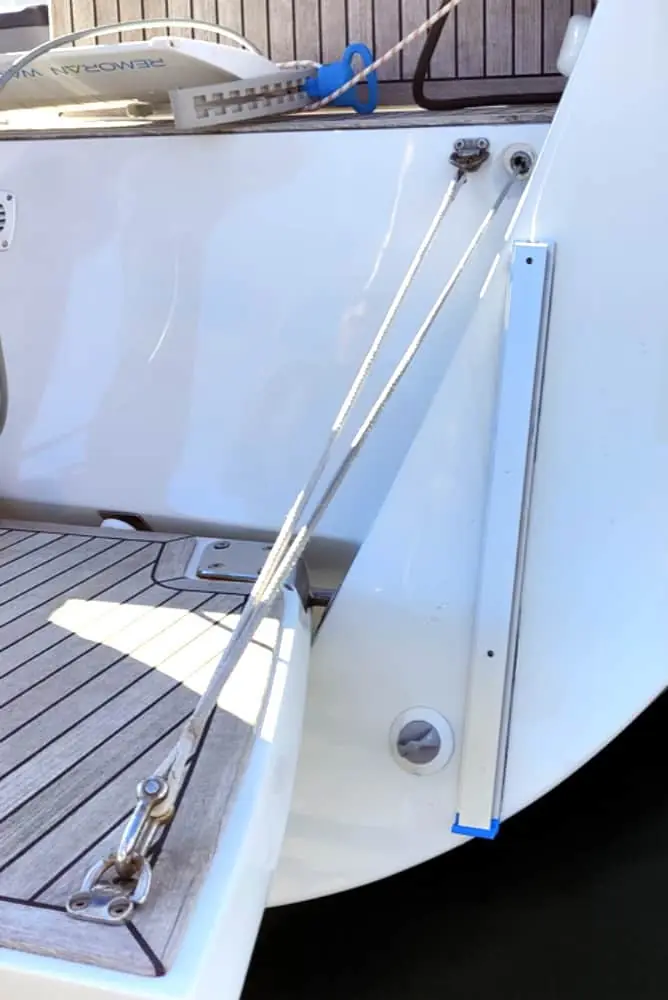

The Long Rail Kit allows the Wave 3 to be retracted from the water without removing the unit from the rail. It also allows the Wave 3 to be installed on the rail from a more comfortable position closer to the deck. In the top locked position, the Wave 3 is held securely clear of the water. The long rail also allows the Wave 3 to be deployed up to 5 knots boat speed as long as a lubricant is used on the rail.
The angle adjustment can be done at any point along the rail, however as the Remoran Wave 3 lowers into the water the forces increase making harder to adjust.
Supplied with mounting hardware and available in 70 cm or 90 cm versions.
The Wave 3 requires a small modification to work with the Long Rail Kit, see the "Downloads" tab for more information.
